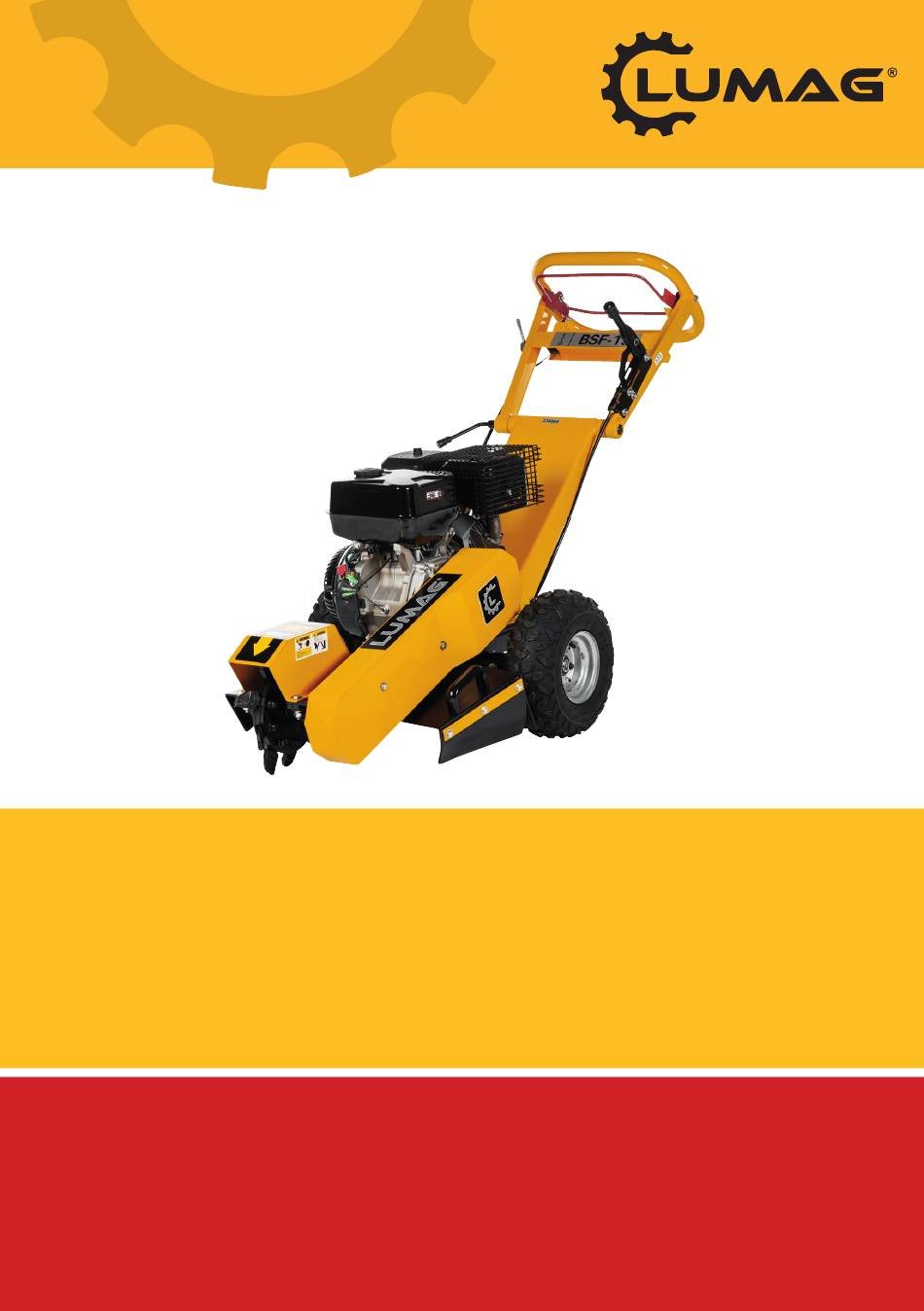

Petrol Stump Grinder
Operator's Manual
READ AND UNDERSTAND THE ENTIRE MANUAL
READ AND UNDERSTAND THE ENTIRE MANUAL
READ AND UNDERSTAND THE ENTIRE MANUAL
Ensure you read and understand how to operate
BEFORE OPERATING THIS MACHINE
the machine safely. Check your machines oil
BEFORE OPERATING THIS MACHINE
BEFORE OPERATING THIS MACHINE
BSF15
FOR YOUR SAFETY
FOR YOUR SAFETY
FOR YOUR SAFETY
FOR YOUR SAFETY
levels before every use.
Distribution Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSF15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumag BSF15

Summary of Contents for Lumag BSF15

  • Page 1 Distribution Limited Petrol Stump Grinder Operator’s Manual BSF15 FOR YOUR SAFETY FOR YOUR SAFETY FOR YOUR SAFETY FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL READ AND UNDERSTAND THE ENTIRE MANUAL READ AND UNDERSTAND THE ENTIRE MANUAL Ensure you read and understand how to operate BEFORE OPERATING THIS MACHINE the machine safely.
  • Page 3 All Other Moving Parts & Lubricate X (2) Cables 1 – First service only, 2 = Should be carried out by your Lumag Dealer, 3 = May need to be done more often in dusty areas & 4 = Replace paper element only...

  • Page 6: Table Of Contents

    Table Introduction Scope of delivery Appropriate use Technical Description Specifications Environment Symbol Safety Controls Functions The idea Commissioning Milling Maintenance Transport Storage Troubleshooting Warranty / Customer Service CE Declaration of Conformity Components of the machine...

  • Page 7: Technical Description

    DETERMINATION USE The root milling cutter is used to remove tree stumps and their rootsystem up to 235 mm below the earth's surface. By moving the cutting edges sideways with swivel movements over the top and front of the stump, the tree stump is gradually milled away. The machine may only be operated by one person.

  • Page 8: Specifications

    Specifications Model BSF-15 Drive 4-stroke OHV gasoline engine Displacement 389 cm3 Rated power 9.7 kW (P1)* Engine speed, max. 3,600 rpm Fuel Unleaded normal gasoline Fuel content 3.5 liters Engine oil SAE 10W-30 or 10W-40 Engine oil capacity of 1.1 litres Wheel Diameter Ø...

  • Page 9: Symbol

    Symbol Symbols are attached to the machine. These represent important information about the product or instructions for use. Attention! This is about your safety. The symbol indicates a hazard, warning or cautionary note. Before commissioning, read and observe the operating instructions and safety instructions thoroughly.
  • Page 10 BID SIGNS Read these instructions in full before using the machine. Otherwise, the risk of injury to operators and others increases. Always wear eye protection when working with the machine. Always wear hearing protection when working with the machine. Wear protective gloves. Wear safety shoes with a steel cap.
  • Page 11 Warning! Keep feet away from rotating parts. only touch machine parts when they have come to a complete standstill. Never open or remove protective devices when the engine is running. Warning! Danger from thrown away objects with the engine running. There is a danger that wood shavings, rootwork, soil, stones or other material will suddenly be ejected.
  • Page 12 Security General safety regulations Instructions on hazards, warnings and precautions must be followed to minimize the risk of personal injury and property damage as well as incorrect service work. The relevant accident prevention regulations and other generally accepted safety and occupational health rules must be complied with.
  • Page 13 Understand your root cutter Read and understand the user manual and the labels affixed to the root cutter. Familiarize yourself with the application and limitations, as well as the related, specific, potential threats. Also, familiarize yourself with the controls and their proper use. Learn how to stop the root cutter and turn it off quickly.
  • Page 14 Personal security Do not operate the root milling machine if you are tired or if you are under the influence of drugs, alcohol or medication that could affect your ability to operate the machine properly. Dress properly. Wear long, strong trousers with leg protection, safety shoes, preferably with steel caps and grip-resistant protective gloves.
  • Page 15 Avoid accidental startup. Make sure the motor switch is off before transporting the machine, performing maintenance or service. Transporting or maintaining the machine when the motor switch is switched on can be a danger. Prolonged use of the motor equipment can lead to vibration-related circulatory problems on the fingers, hands or wrists.
  • Page 16 Screw the tank lid onto the fuel tank. immediately wipe the spilled fuel. Never operate the device without the tightly screwed-on tank lid. There should be no ignition source near spilled fuel. If fuel is spilled, remove the machine from there.
  • Page 17 Check the machine for failures or worn parts, breaks on parts and the like to ensure the functionality and operational safety of the device. Regular maintenance of the root milling machine is an essential prerequisite for maintaining the safety and performance of the device. Keep the engine and exhaust free of grass, leaves, excessive grease or exhaust to reduce the risk of fire.
  • Page 18 Ensure that all fenders, straps and handles are securely fastened. After maintenance and repair work, always attach the protective and safety devices to the device and place them in a protective position. Use only approved parts. This machine complies with the relevant safety regulations. Repairs may only be carried out by an approved service center or our service team.
  • Page 19 When the device comes into contact with a foreign body, turn off the engine and remove the spark plug. Check the machine for any damage. Have the damage repaired before restarting and continuing to work. In case of possible blockages on the milling wheel, turn off the motor, remove the spark plug and clean the milling wheel and blades with a suitable aid.
  • Page 20 Slips Negligent driving of the root cutter can lead to serious injuries. • Special care should be taken in uneven terrain. Make sure you have a safe footing Neglect of ergonomic principles Careless use of personal protective equipment (PPE) Negligent use or omission of personal protective equipment can result in serious injury. •...

  • Page 21: Controls

    Behavior in an emergency In the event of an accident, initiate the necessary first aid measures and request qualified medical assistance as soon as possible. When you request help, provide the following information: - where it happened - what happened - how many injured - what type of injury - waiting for questions...

  • Page 22: Functions

    Petrol engine 1 motor switch 2 Pull Starter 3 Recoil 4 Choke 5 Fuel tap 6 air filters 7 muffler 8 throttle 9 Spark plug, 10 Oil filling screw with measuring rod 11 Oil drain plug 12 Fuel tank 13 tank lids Functions MOTOR Engine switch (ignition switch) (1)
  • Page 23 Air Filters (6) The air filter consists of a pre-filter made of foam and a paper filter insert. It is located under the cover (6). A polluted air filter is noticeable by the unclean running of the engine and black smoke. Exhaust (7) The exhaust of the engine becomes warm when the engine is running.
  • Page 24 Safety Handle (3) on the panel The motor can be stopped by releasing the red safety handle Motor switch (ignition switch) (1) on the motor. Motor safety switch on red safety handle (4) on the panel Red safety handle (4) on the panel Depress the red safety handle to start.
  • Page 25 In this case, sellers and manufacturers dissociate themselves from any warranty. Use Lumag Engine oil. Unscrew the oil filling screw on the motor. Fill the engine oil to the first threaded path of the filling opening.
  • Page 26 Gasoline Danger of health and explosion due to internal combustion engine In the exhaust gas the engine is to de-contain toxic carbon monoxide. Staying in a carbon monoxide-containing environment can lead to unconsciousness and death. do not run the motor in a closed area. Keep the engine away from heat, sparks and flames.

  • Page 27: Commissioning

    PETROL Storage Fuels are only limited in storage, they age. Overlaid fuels or fuel mixtures can lead to start-up problems. Store only as much fuel as you consume in a month. Store fuels only in containers specially approved for this purpose. Store fuel tanks dry and secure. Store fuel tanks inaccessible to children.
  • Page 28 Only put the root milling machine into operation if all milling blades are properly inserted and fastened. Furthermore, make sure that all protective devices are attached and in protective position. Check that the motor parking safety handle (Red handle) is working. Start the motor and run it for a few seconds then release handle the motor should stop immediately.

  • Page 29: Milling

    MOTOR OFF ( Fig.1 - 4) Push the gas regulator lever (1) into the idle position "SLOW". Set the motor switch (1) to "OFF / OFF" and wait until the milling blade is standing. Insert the parking brake (5), pulling the lever backwards. Then slide the fuel tap (5) to the left on "OFF / OFF".
  • Page 30 4. Place the motor switch (1) in on position. 5. Depress the red safety lever. 5. Start the motor, pulling the pull starter (2). Allow the engine to heat up for about 2 minutes when idle before starting milling. 7. Tilt the machine onto the wheel (8) so that the milling wheel (10) is lifted off the bottom of the tree stump.
  • Page 31 Should a larger amount of wood chips accumulate under the milling wheel, turn off the machine, switch off and wait until the milling wheel stops. The chips NEVER while working by hand or an aid, such as wooden stick, hoe and gl. to remove.

  • Page 32: Maintenance

    4. Wait about 20 seconds for the blade to stand still completely. 5. Remove the motor parking line (rip line) from the motor parking button. 5. Set the motor switch (1) to "OFF / OFF". 6. Insert parking brake (5). 7.
  • Page 33 7. After each use, dirt and wood shavings accumulated under and on the root cutter must be removed. To avoid overheating of the engine, the cylinder cooling fins must be kept clean. Use commercially available multi-purpose oil to easily oil all moving parts. 8.
  • Page 34 2. Loosen the head screws - 1 piece per blade - and then unscrew them. When removing the screw, hold the blade and pull the screw out of the milling wheel. 3. Fix the new blade with the Inbus head screws and screw it. 4.
  • Page 35 CHANGE DRIVE BELTS Always replace too long, damaged or worn belts with new original drive belts. 1. Remove the belt cover. 2. Loosen the four screws on the motor. 4. Move the motor until the drive belt has to be removed without any problems. 5.
  • Page 36 CLEAN / CHANGE AIR FILTERS Frequent cleaning of the air filter (6) prevents carburetor malfunctions. If the engine starts to smoke and at the same time the engine power decreases, this is the sign that the filter is clogged. Clean the air filter, knock it out easily so that dust falls out of the paper element.
  • Page 37 Hot surfaces. On the engine there are parts with hot surfaces, for example the exhaust pot or the cooling fins of the motor. Wait for the engine to cool down before working on the engine. Check, clean and replace spark plug 1.

  • Page 38: Transport

    The engine oil must be changed after the first 5 hours of operation. After that, only every 100 operating hours or every season. 1. Unscrew oil drain plug (11). 2. Unscrew oil filler plug (10). 3. Hold a suitable vessel (at least 1.5 liters) under the oil drain screw. 4.

  • Page 39: Storage

    Move the device in an upright position to avoid fuel or oil leakage. For long-distance transport, the fuel tank must be completely emptied. Carefully load and unload the machine. Use suitable lifting and transport means. When lifting use lifting handle (12) and stop point - wheels/axis. Secure the machine on the transport vehicle against unrolling, slipping or tipping and additionally torenden in suitable places with tension bands, chains or ropes.

  • Page 40: Troubleshooting

    Troubleshooting Before each fix Switching off the machine Waiting for the milling wheel to stop Remove spark plug plugs Disorder Cause Remedy No fuel. Fill the fuel tank. starter defective. Repair starters. No engine oil. Refill engine oil. Clean or replace the spark Motor cannot be started.
  • Page 41 V-belt slips through. Tension V-belts. gas rope not properly Check the gas rope for attached or damaged. proper function. The milling wheel continues to Centrifugal clutch is rotate. damaged and does not Change the coupling. uncouple properly. Brake pressure. Check the brake rope and The parking brake slips.

  • Page 42: Warranty / Customer Service

    Due to operational and usage, some components are subject to normal wear and tear, even when used as intended, and may need to be replaced in good time. Customer service www.lumag-gb.co.uk 01837 811741 EC CONFORMITY DECLARATION...

  • Page 43: Components Of The Machine

    The declaration of conformity refers only to the machine in the condition in which it was placed on the market; Parts and/or subsequent interventions subsequently installed by the end user shall not be taken into account. Kirchdorf, 14.10.20132012 Manfred Weißenhorner, Managing Director ______________________________________________________________________________ Place/date marketer, authorized signature...
  • Page 44 Unit 1-3, Hatchmoor Industrial Estate, Hatherleigh, Okehampton, Devon EX20 3LP Lumag Distribution Limited Company Number: 09267547 VAT Number: GB154566788 Hatherleigh www.lumag-gb.co.uk 01837 811741 Plant and Tool Hire is a trading name of Lumag Distribution LTD Lumag Distribution Limited Company Number: 09267547 VAT Number: GB154566788 Hatherleigh...
