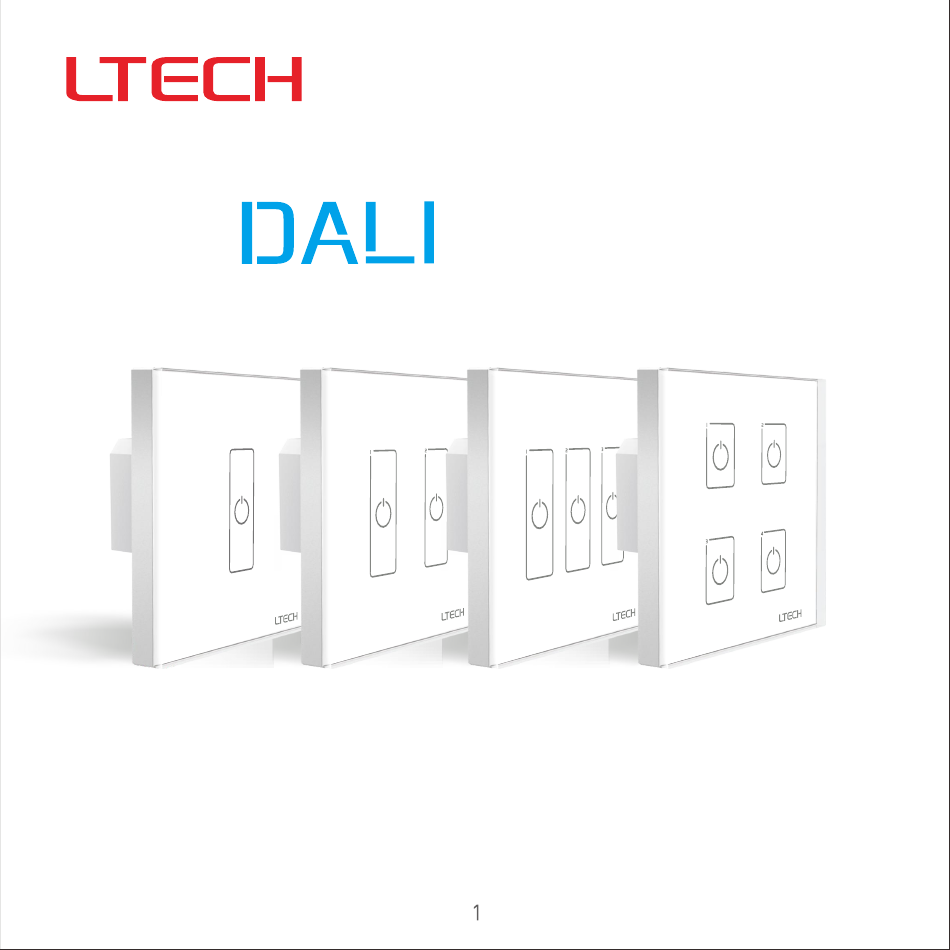

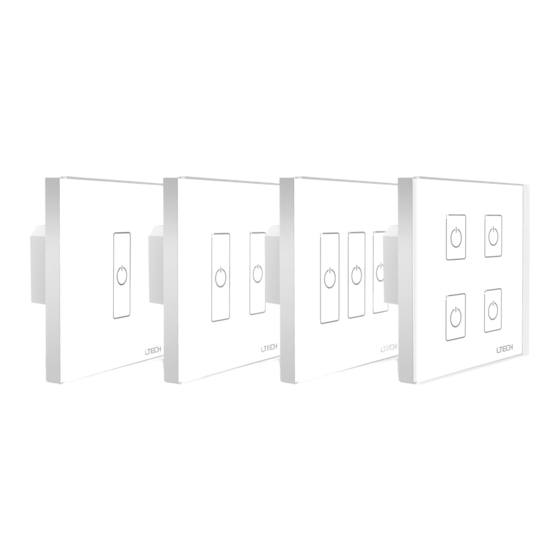

- Page 1 EDA1 EDA2 EDA3 EDA4 Manual www.ltech-led.com...
-
Page 2: Product Features
Product Features ● Adopt latest DALI standard protocol IEC62386. ● Support switch and dimming function. ● Powered by DALI bus. ● Easy to set DALI address. ● Support scene, group, unicast, broadcast mode. TechnicalSpecs DALI touch panel Power Supply: DALI power Static Current: 6mA@16V Output Signal: DALI... -
Page 3: Product Size
Mounting &Dismounting Instructions Junction box Dismount Panel Typical junction boxes are as follow: Panel plate Product Size European Style 86 Type Unit：mm... - Page 4 Panel Key Description Status light Status light 1CH key 2CH key EDA2 EDA1 Status light Status light 3CH key 4CH key EDA3 EDA4 Short press: switch; long press: dimming (suitable for unicast, broadcast and group mode). Terminals ： 10 level rotary switch ：...
- Page 5 DALI Address Settings X= (0-6): unicast mode; X= 7: group mode; X= 8: scene mode; X= 9: broadcast mode. Via spin switch, you can set 64 unicast addresses(0-63), 16 group addresses(0-15), 16 scene addresses(0-15) and broadcast address. Unicast mode (address:0-63) E.g.: Set initial address to 40 in unicast mode.
-
Page 6: Wiring Diagram
Wiring Diagram DALI bus power supply LED strip COB soptlight COB soptlight COB soptlight... -
Page 7: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail. Update Time: 10/01/2022_A1...
