Rendamax R0 Series Planner Manual

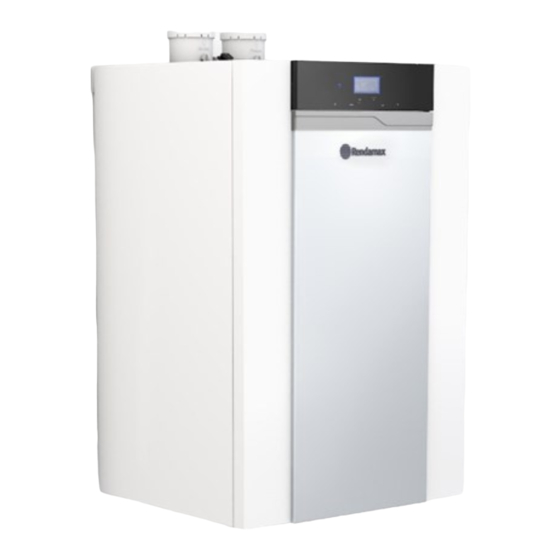

Gas condensing wall hung boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Planner Manual
R0XXX
R0XXX
Gas Condensing Wall Hung Boiler
Single Installations (60 to 200 kW)
Cascade Installations up to 1600 kW
01-2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R0 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rendamax R0 Series

Summary of Contents for Rendamax R0 Series

  • Page 1 Planner Manual R0XXX R0XXX Gas Condensing Wall Hung Boiler Single Installations (60 to 200 kW) Cascade Installations up to 1600 kW 01-2021...

  • Page 3: Table Of Contents

    Contents Gas condensing boiler Models and output ..................5 Application possibilities ................5 Description ....................5 Technical description Sales text………………………………………………………………………..7 Technical data ..................14 Dimensions single engine……………………………………………………16 Dimensions double engine ..............17 Boiler transport and unpacking ............... 18 Boiler standard delivery ................19 Cascade installation ................
  • Page 4 Contents Standard schemes Standard schemes ................. 56 Accessories Controls ..................... Single boiler Gas ..................Single boiler Hydraulics ................Single boiler Others ..................Cascade Frame ..................Cascade Gas ....................Cascade Hydraulics ..................Cascade Specifically for Italy ..............Cascade Flue .....................

  • Page 5: Models And Output

    Gas condensing boiler R0XXX Models and output Application possibilities Description Models and output Application possibilities The R0XXX is a condensing and The R0XXX is applicable for all modulating gas boiler with one or central heating sytems built two pre-mix burners and according to EN12828 with a maxi- avaliable in 7 types within an mum target temperature of 90*C.
  • Page 6 Gas condensing boiler R0XXX Models and output Application possibilities Description Legend Legend Legend Connection terminal Air / flue connection con- Heat Exhanger 1 (see Connection terminal centric (optional for table 1) cascade bus communica- R0060-R0070-R0100- Heat Exchanger 2 (see tion R0120-R0140) table 1) Connection terminal pc...

  • Page 7: Sales Text

    Technical description Sales text RENDAMAX R0060 RENDAMAX R0060 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...
  • Page 8 Technical description Sales text RENDAMAX R0070 RENDAMAX R0070 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...
  • Page 9 Technical description Sales text RENDAMAX R0100 RENDAMAX R0100 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...
  • Page 10 Technical description Sales text RENDAMAX R0120 RENDAMAX R0120 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...
  • Page 11 Technical description Sales text RENDAMAX R0140 RENDAMAX R0140 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...
  • Page 12 Technical description Sales text RENDAMAX R0170 RENDAMAX R0170 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...
  • Page 13 Technical description Sales text RENDAMAX R0200 RENDAMAX R0200 Wall-hung condensing gas boiler Overview of features: • compact, pre-assembled construction and ready for connection • stainless steel heat exchanger • Insulation in expanded polypropylene • premixed burner in material ceramic for continuous adjustment of power •...

  • Page 14: Technical Data

    Technical description Technical data ErP data R0XXX Permit CE0063CT3449 Category GB: II2H3P Heat exchanger type iConXL1 iConXL1 iConXL2 Output Full load 80/60°C 56,9 65,4 90,2 40/30°C 62,6 72,0 99,0 Low load 80/60°C 14,7 14,6 18,1 40/30°C 16,1 16,1 19,9 Full load 80/60°C 56,9 65,4...
  • Page 15 Technical description Technical data ErP data R0XXX Permit CE0063CT3449 Category GB: II2H3P iConXL1 iConXL1 iConXL1 iConXL2 Heat exchanger type iConXL1 iConXL1 iConXL2 iConXL2 Output Full load 80/60°C 110,8 130,5 155,5 180,3 40/30°C 122,2 142,4 170,9 197,4 Low load 80/60°C 14,7 14,6 14,6 18,1...

  • Page 16: Dimensions Single Engine

    Technical description Dimensions Single Engine R0XXX 60-70 R0XXX 60-70 100/150* 100/150* Height 1050 1050 Concentric connection 2x100 2x100 Height + flue conn. 1135 1135 Parallel connection 1 1/4" 1 1/4" Width Gas connection 1" ** 1" ** C1 / C2 Depth Gas connection** Condensate connection mm Flue gas conn.

  • Page 17: Dimensions Double Engine

    Technical description Dimensions Double Engine R0XXX 120-140 170-200 R0XXX 120-140 170-200 100/150* Height 1050 1050 Concentric connection 2x100 2x130 Height + flue conn. 1135 1135 Parallel connection 1 1/4" 1 1/4" Width Gas connection 1" ** 1" ** C1 / C2 Depth Gas connection** Flue gas conn.

  • Page 18: Boiler Transport And Unpacking

    Technical description Boiler transport The R0XXX is a fully equipped compact The boiler can be moved using a fork-lift Lifting and carrying precautions: heating system, which has been pre-set or pallet truck.Unpacking instructions are - Wear protective clothing and gloves and tested at the factory.

  • Page 19: Boiler Standard Delivery

    When the boiler is positioned with less free space, maintenance activities will be more difficult. If you have opted to build the hydraulic part yourself, then RENDAMAX recommends using “Connection set R0XXX as single boiler” for each boiler.

  • Page 20: Cascade Installation

    When installing the a single R0XXX boiler or cascade R0XXX boilers, the use of a low loss header adjusted to the set demand is strongly suggested. Rendamax Heating Solutions offer optional matched low-velocity mixing headers suitable for heat outputs up-to 1600kW.

  • Page 21: Dimensions Cascade - Wall Mounted

    5. Service valves flow and return 11. Fill and drain valve 6. Non-return valve Cascade possibilities The RENDAMAX R0XXX cascade can be mounted in 3 ways: - Wall-mounted in line All boilers alongside one another on the wall - Free-standing in line...
  • Page 22 Dimensions Cascade R0XXX / Cascade installation R0XXX Cascade examples wall-mounted R0XXX 5 boilers wall mounted in line R0XXX 8 boilers wall mounted in line...

  • Page 23: Dimensions Cascade - Freestanding In Line

    Dimensions Cascade R0XXX / Cascade installation R0XXX Cascade examples free-standing in line R0XXX 2 boilers free-standing in line R0XXX 3 boilers free-standing in line...
  • Page 24 Dimensions Cascade R0XXX / Cascade installation R0XXX Cascade examples free-standing in line R0XXX 5 boilers free-standing in line R0XXX 8 boilers free-standing in line...

  • Page 25: Dimensions Cascade - Freestanding Back To Back

    Dimensions Cascade R0XXX / Cascade installation R0XXX Cascade examples free-standing back-to-back R0XXX 3 boilers free-standing back-to-back R0XXX 4 boilers free-standing back-to-back...
  • Page 26 Dimensions Cascade R0XXX / Cascade installation R0XXX Cascade examples free-standing back-to-back R0XXX 6 boilers free-standing back-to-back R0XXX 8 boilers free-standing back-to-back...

  • Page 27: Clearances Single Boiler

    1. Boiler return connection 2. Boiler flow connection If you have opted to build the hydraulic part yourself, then RENDAMAX recommends using “Connection set R0XXX as 3. Condensate drain single boiler” for each boiler. 4. Gas 5. Flue gas outlet...

  • Page 28: Declaration Of Conformity

    Technical description Declaration of conformity...

  • Page 29: General Regulations

    Norm and regulations General regulations Application Norms and regulation General regulations - 2014 / 35 / EU It is necessary that the currently This document contains important infor- valid local normatives will be ob- mation with regard to safety and reliabili- Low voltage directive served.
  • Page 30 Norm and regulations General regulations Application Norms and regulation Switzerland: - SVGW Incorrect operation can cause - Regulations of the cantonal au- It must be ensured that children damage to the boiler and sys- thorities (eg fire brigade regulati- cannot play with the equipment. tem components and has the ons) potential to introduce hazards.

  • Page 31: Water Quality

    (see Table 1). - Inhibitors may only be used after consultation with RENDAMAX. For situations that require clarifica- tion, please consult Rendamax - The use of such agents must be Heating Solutions. Failure to com- protocolled. ply with manufacturers instruction, may have an affect on terms of warranty.

  • Page 32: System Water Additives

    Norm and regulations System water additives DHW quality The system water additives, which In case of incorrect use, and if the are listed in the table, have been maximum concentration quantities released by the manufacturer and are exceeded, then the guarantee take into consideration the indicated for all components that come in dosage quantities.
  • Page 33 Norm and regulations System water additives DHW quality Definition of water types Softened water Drinking water Water, from which calcium and magnesium ions have been parti- Tap water, in conformity with the ally removed. European Drinking Water Directive: 98/83/EC, dated 3 November 1998. Demineralized water Distilled water Water, from which almost all salts...

  • Page 34: Boiler Circuit Pump

    Boiler circuit pump Boiler integration Pump control on dT Flow rate monitoring RENDAMAX recommends to connect The pump is controlled on dT. The The built-in pump makes a flow rate the boiler via a Low loss header or plate speed is controlled to keep dT at the measurement and sends it as feed- heat exchanger.

  • Page 35: Connections And Possibilities

    Flue gas system Connections Possibilities Concentric boiler connection Flue gas connection The boilers 60-70-100-120-140 We recommend the use of RENDAMAX’s can be converted into a concentric comprehensive range of flue gas compo- connection using the parallel/ nents. concentric adapter 100/150...

  • Page 36: Air /Flue Gas System

    Flue gas system Connections Air-/ flue gas ducts– installation variants for individual boilers Ambient combustion air Flue gas duct into the chimney, aspiration of air from the surroundings. End section of the flue gas duct above the roof. Flue gas duct into the chimney, aspiration of air from the surroundings. End section of the flue gas duct above the roof.
  • Page 37 - Collective flue gas outlet over-pressure specific regulations. RENDAMAX can supply a collective flue gas outlet system for the RENDAMAX R0XXX. Refer to the following chapters with regard to the various possibilities and maximum pipe lengths than can be used.

  • Page 38: Maximum Flue Gas Lengths Single Boiler

    Flue gas system Maximum flue gas lengths single boiler Notes The tables below give guidance on the maximum lengths of air and flue gas tubes that may be connected. If a room sea- led installation is being made utilising separate air and flue gas tubes, the lengths of both tubes must be added together and not exceed the relevant value given in the tables.

  • Page 39: Collective Flue Gas Systems

    Flue gas system Collective flue gas outlet underpressure Diameter and venting lengths of the flue gas outlet/air supply: Open system, with underpressure (calculated with thermal draft) under atmospheric circumstances. NOTE! 1. IPX0D at flue category B23 and B33 Open system, underpressure Output (80/60) d = minimum diameter Ø...
  • Page 40 Flue gas system Collective flue gas outlet underpressure Diameter and venting lengths of the flue gas outlet/air supply: Closed system, with under-pressure (calculated with thermal draft) under atmospheric ircumstances. Closed system, underpressure, parallel Output (80/60) d = minimum diameter Ø in mm [kW] h = 2 - 5 h = 5 - 9...
  • Page 41 Flue gas system Collective flue gas outlet overpressure An installation with a collective flue gas outlet over-pressure in combination with individually controlled boilers (e.g. 0-10VDC control), where no bus cable is connected, is NOT allowed. Diameter and venting lengths of the flue gas outlet/air supply: Open system with over-pressure.
  • Page 42 Flue gas system Connections Collective flue gas outlet overpressure Diameter and venting lengths of the flue gas outlet/air supply: Closed system with over-pressure. Closed system, overpressure, parallel Output (80/60) d = minimum diameter Ø in mm [kW] h = 2 - 5 h = 6 - 10 h = 11 - 15 h = 16 - 20...

  • Page 43: Electrical Connections

    Boiler Installation Electrical connection Electrical connections must be All cables are passed through the A deviation on the grid of 230V carried out by an authorized cable guide at the top of the boiler, (+10% or -15%) and 50Hz electrical technician, and in con- and are led to the electronics pa- The following additional regulati- formity with valid national and...
  • Page 44 Boiler Installation Electrical connection The boiler has 4 socket blocks for all electrical connections: Caution: 1. High voltage supply (230V) After removing the panels 230V 2. Voltage free switches (230V relays) parts can be reached. 3-4. Low voltage sensors and I/O Electrical connections are only to 5.
  • Page 45 Boiler Installation Electrical connection...
  • Page 46 Boiler Installation Electrical connection...
  • Page 47 Boiler Installation Electrical connection MO1 OUTPUT (AC) ECU I/O Menu Evo Code Multi Out HV 24.7.0 (Commercial Boiler); 26..32.7.0 (Commercial Boiler – Slave 1..7); Function Setting Values None System Pump HC1 Pump Circulating Pump DHW Intermediate Circuit BUF Filling Pump Storage Tank Transfer Pump Heat Generation Shut off Valve Heat Request...
  • Page 48 Boiler Installation Electrical connection Function Setting Values None Heat Generation Shut off Valve Heat Request Alarm Output Flue Gas Damper LPG/ Room Supply Fan MO1 OUTPUT (0-10 V) ECU I/O Menu Evo Code Multi Out PWM 1 MO1_ LV 24.7.4 (Commercial Boiler); 26..32.7.4 (Commercial Boiler –...
  • Page 49 Boiler Installation Electrical connection MO2 OUTPUT (0-10 V) ECU I/O Menu Evo Code Multi Out PWM 2 MO2_ LV 24.7.5 (Commercial Boiler); 26..32.7.5 (Commercial Boiler – Slave 1..7); Function Setting Values None System Pump Modulator DHW pump Modulator Circulating Pump Modulator BUF Filling Pump Modulator Boiler Power Feedback PADIN 1- 2-3-4...
  • Page 50 Boiler Installation Electrical connection Temperature Sensors Common Flow Sensor When a common flow sensor is used (for cascade mandatory) it should be addressed on MTS1. DHW Tank Setting There are several schemes for hot water preparations Flue Gas Sensor Sensors can also be used as flue gas sensor. With a setting for max.
  • Page 51 Boiler Installation Electrical connection External Controls BMS Feedback For giving feedback to the BMS this output gives a 0-10 Volt signal as indication of load. Pump Modulation This output can be set as a controller for several pump types.
  • Page 52 Boiler Installation Electrical connection External Controls On / Off Heat Request HCs+ DHW Changeover BOILER LOCK Input can be used for on/off control External controller selects if the sys- Take in account BOILER LOCK is up to 3 zones. tem can only be active for DHW or 5 Volt max where 1, 2 &...
  • Page 53 Boiler Installation Electrical connection Cascade control...
  • Page 54 Boiler Installation Electrical connection Wiring Diagram Description Description Description Description Main switch 230V Return temp sensor Ionisation electrode Fuse 6.3A - 250V Electrical connect. Fan unit Glow igniter Fuse 6.3A - 250V Gas valve Flow temp sensor Fuse 6.3A - 250V Master PCB Circulation pump flow temp sensor...
  • Page 55 Boiler Installation Electrical connection The 3 MIXING ZONES Clip Manager is an accessory that manages up to 3 heating zone (direct, mixing or a combination of them) directly from boiler. This accessory is connected to the boiler via eBus and it can be connected to Ariston Thermo Group heating system (boilers, heat pumps, solar applications, etc.) through the eBus connection.
  • Page 56 Standard Schemes Hydraulic Schematic Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Low loss header Sensor Optional components Return BUS connection cable Mixing valve cable Flow Pump cable AAV Automatic air vent Heating Circuit Flow sensor Air dirt separator...
  • Page 57 Standard Schemes Electrical connections Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Low loss header BOILER MOTHERBOARD A : Main power supply (230V @50Hz) C : Clip-In 3 zone B : Clip In power (230V @50Hz) RT1: Room thermostat (On/Off ) T10: Common flow temperature sensor (10KΩ...
  • Page 58 Standard Schemes Hydraulic Schematic Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Domestic Hot Water +Low loss header Sensor Optional components Return BUS connection cable Mixing valve cable Flow Pump cable Automatic air vent Expansion relief valve Overflow pipe...
  • Page 59 Standard Schemes Electrical connections Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Domestic Hot Water +Low loss header BOILER MOTHERBOARD A : Main power supply (230V @50Hz) C: DHW re-circulating temperature sensor(10KΩ ) B : Clip In power (230V @50Hz) T3: DHW temperature sensor(10KΩ...
  • Page 60 Standard Schemes Hydraulic Schematic Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Domestic Hot Water with 3 way va- lve +Low loss header Sensor Optional components Return BUS connection cable Mixing valve cable Flow Pump cable Automatic air vent...
  • Page 61 Standard Schemes Electrical connections Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Domestic Hot Water with 3 way va- lve +Low loss header BOILER MOTHERBOARD A : Main power supply (230V @50Hz) C : DHW re-circulating temperature sensor (10KΩ ) B : Clip In power (230V @50Hz) T3: DHW temperature sensor(10KΩ...
  • Page 62 Standard Schemes Hydraulic Schematic Rendamax R0xxx + 2 Mixing circuit +1 Direct circuit + Domestic Hot Water with 3 way va- lve +Low loss header Sensor Optional components Return BUS connection cable Mixing valve cable Flow Pump cable Automatic air vent...
  • Page 63 Standard Schemes Electrical connections Rendamax R0xxx + 1 Mixing circuit +1 Direct circuit + Domestic Hot Water with 3 way valve +Low loss header BOILER MOTHERBOARD A : Main power supply (230V VAC, 2A max) D : Clip-In 3 zone...
  • Page 64 Standard Schemes Hydraulic Schematic Rendamax R0xxx + 1 Direct circuit + 0-10V controller +Low loss header Sensor Optional components Return BUS connection cable Mixing valve cable Flow Pump cable Automatic air vent Expansion vessel Overflow pipe Air dirt separator Gas shut off valve...
  • Page 65 Standard Schemes Electrical connections Rendamax R0xxx + 1 Direct circuit + 0-10V controller +Low loss header MASTER BOILER MOTHERBOARD A : Main power supply (230V @50Hz) C : Cascade connection to slave board B : Heating circuit pump HC1(230V @50Hz) External controller: 0-10 Volt T10: Common flow temperature sensor (10KΩ...
  • Page 66 Accessories Controls DESCRIPTION SAP CODE LLH / DHW SENSOR R0XXX/R1XXX 3905045 Sensor for use as T10 Common flow temperature sensor or as T4 Do- mestic hot water temperature sensor. Resistance value NTC 10K ROOM FAN EXT.GAS VALVE SINGLE BOILER R0XXX/R1XXX 3905103 Relay set to control either an external gas valve or room ventilation.
  • Page 67 Accessories Gas Single boiler DESCRIPTION SAP CODE INAIL KIT SINGLE BOILER 60-70KW R0XXX/R1XXX 3905097 Shut off Valve size ¾” INAIL KIT SINGLE BOILER 100-140KW R0XXX/R1XXX 3905098 Shut off Valve size 1” INAIL KIT SINGLE BOILER 170-200KW R0XXX/R1XXX 3905099 Shut off Valve size 1.¼” The INAIL gas valve is a capillary sensor controlled slam shut valve that closes the gas supply when the capillary sensor detects a water temperature of 97°C.
  • Page 68 Accessories Hydraulics Single boiler DESCRIPTION SAP CODE INAIL KIT SINGLE BOILER WATER R0XXX/R1XXX 3905100 The INAIL kit contains the following components: Safety thermostat 100°C with manual reset Maximum water pressure switch Minimum water pressure switch Thermometer Pressure gauge Safety valve 4.5 bar WATER-GAS CONNECTION KIT SINGLE BOILER R0XXX/R1XXX 3905117 Adapters for water and gas connections.
  • Page 69 Accessories Hydraulics Single boiler Dimensional sketch for 3905173 LLH dT10-20K WALL HUNG R0XXX...
  • Page 70 Accessories Hydraulics Single boiler DESCRIPTION SAP CODE PLATE HEAT EXCHANGER dT10K 60-100kW R0XXX 3905186 PLATE HEAT EXCHANGER dT10K 120-200kW R0XXX 3905187 PLATE HEAT EXCHANGER dT15K 60-100kW R0XXX 3905188 PLATE HEAT EXCHANGER dT15K 120-200kW R0XXX 3905189 PLATE HEAT EXCHANGER dT20K 60-100kW R0XXX 3905190 PLATE HEAT EXCHANGER dT20K 120-200kW R0XXX 3905191...
  • Page 71 Accessories Hydraulics Single boiler dT10K CB110-26M CB110-56M dT15K CB112-26L CB112-52L dT20K CB112-38M CB112-68M...
  • Page 72 Accessories Hydraulics Single boiler Dimensional sketch for Plate heat exchanger kits R0XXX...
  • Page 73 Accessories Other DESCRIPTION SAP CODE AIR FILTER Ø100 60-140KW R0XXX/R1XXX 3905115 AIR FILTER Ø130 140-200KW R0XXX/R1XXX 3905116 Air filter to prevent impurities from entering the boiler. For models 60-10: Ø200mm H250mm For models 140-200: Ø170mm H290mm FLUE ADAPTER PAR-CONC 100/100-150 R0XXX 3905260 For models 60-120 the parallel air/flue-adapter can be replaced by this concentric air/flue adapter to allow the use on concentric flue gas ma-...
  • Page 74 Accessories Cascade Frame DESCRIPTION SAP CODE COLLECTOR FLOW/RETURN DN65 2B LINE/4B B2B R0XXX 3905129 L = 1.398mm COLLECTOR FLOW/RETURN DN65 3B LINE/6B B2B R0XXX 3905130 L = 2.098mm COLLECTOR FLOW/RETURN DN100 2B LINE/4B B2B R0XXX 3905132 L = 1.398mm COLLECTOR FLOW/RETURN DN100 3B LINE/6B B2B R0XXX 3905134 L = 2.098mm INSULATION COLLECTOR DN65/DN100 1BOILER R0XXX...
  • Page 75 Accessories Cascade Connection kits DESCRIPTION SAP CODE TAE/TAS GAS V. KIT LINE WH CH R0XXX 3905107 Boiler line cascade connection kit with TAE/TAS gas valve. When the temperature of the TAE/TAS valve body reaches 100°C (for example in case of fire) the valve will shut off the gas supply to the boiler. TAE/TAS GAS V.
  • Page 76 Accessories Cascade Gas DESCRIPTION SAP CODE FLANGE KIT DN65 GAS R0XXX 3905029 MIN. GAS PRESSURE SWITCH CASCADE R0XXX/R1XXX 3905102 The minimum gas pressure switch will interrupt the cascade operation in case the gas supply pressure drops below the set value on the switch.
  • Page 77 Accessories Cascade Low loss headers DESCRIPTION SAP CODE LOW LOSS HEADER DN65 3905033 Low loss header suitable up to 452kW. The low loss headers comes standard with adjustable feet, automatic air vent, drain valve, pocket for temperature sensor T10, M16x55 bolts, spring washers and nuts.
  • Page 78 Accessories Cascade Low loss headers Dimensional sketch for 3905033 LLH DN65 Dimensional sketch for 3905034 LLH DN100...
  • Page 79 Accessories Cascade Low loss headers Dimensional sketch for 3905176 LLH DN100 DUO...
  • Page 80 Accessories Cascade Plate heat exchangers DESCRIPTION SAP CODE CASCADE PLATE HEAT EXCHANGER DT10K WH-FS R0XXX 3905194 CASCADE PLATE HEAT EXCHANGER DT15K WH-FS R0XXX 3905195 CASCADE PLATE HEAT EXCHANGER DT20K WH-FS R0XXX 3905196 Plate heat exchanger kit to separate primary and secondary circuit. Comes with floor standing support and insulation.
  • Page 81 Accessories Cascade Hydraulics DESCRIPTION SAP CODE FLANGE KIT DN65 R0XXX 3905026 Waterside flange kit containing 2 DN65 flanges, gaskets, bolts, wash- ers and nuts. FLANGE KIT DN100 R0XXX 3905027 Waterside flange kit containing 2 DN100 flanges, gaskets, bolts, wash- ers and nuts. CASCADE BEND 90°...
  • Page 82 Accessories Cascade Flue DESCRIPTION SAP CODE CASCADE FLUE KIT DN150 LINE R0XXX 3905198 Flue collector Ø150mm with Ø100mm boiler connector for one boiler. CASCADE FLUE KIT DN200 LINE R0XXX 3905200 Flue collector Ø200mm with Ø100mm boiler connector for one boiler. FLUE SIPHON SET DN150 R0XXX 3905199 Ø150mm Flue collector end piece with syphon.
  • Page 83 Service: Hamstraat 76 6465 AG Kerkrade The Netherlands Postbus 1035 6460 BA Kerkrade The Netherlands Tel: +31 (0) 45 566 99 00 www.rendamax.com...
