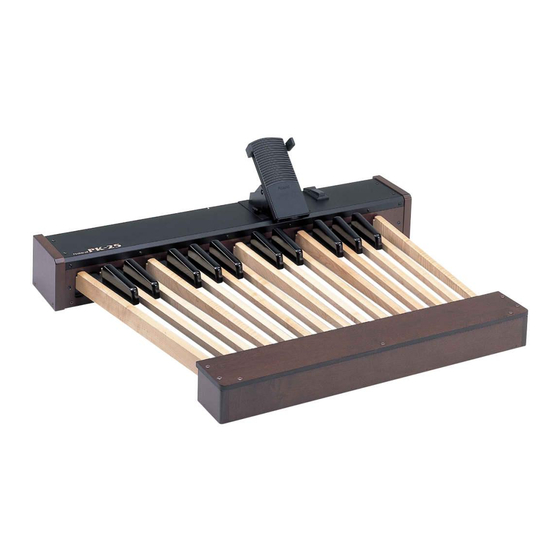

Thank you, and congratulations on your choice of the Roland PK-25 Pedal Keyboard.
The PK-25 is a pedal keyboard unit which was designed especially for the VK-88/VK-
8. It provides a pedal keyboard, an expression pedal for dynamic volume changes, foot
switches that let you control various functions of the VK-88/VK-8 by foot, and a Hold
pedal to sustain the sound.
Features
● Twenty five-note pedal keyboard and removable expression pedal
The PK-25 features a twenty five-note pedal keyboard for maximum enjoyment of
organ playing. The built-in expression pedal can be removed from the pedal keyboard
unit to make the unit more compact for transportation.
● Foot switches for controlling the VK-88/VK-8
Two foot switches are built into the expression pedal. During a performance, you can
switch the settings of the VK-88/VK-8 without removing your foot from the
expression pedal or your hands from the keyboard.
● Hold pedal
A Hold pedal is provided. You can easily operate for additional expressive
possibilities when playing sustain-type sounds.
● Single-cable connection to the VK-88
When connecting the PK-25 to the VK-88, the PK cable that is supplied with the VK-88
is the only connection required-no need for MIDI cables, analog cables, or an AC
power adaptor. This makes setup quick and easy.
Conventions used in this manual
Pages in this manual where you can find additional information are indicated like this: (p. **).
Using The Unit Safely................................................................................... 2
Important Notes ............................................................................................ 4
Names and Functions................................................................................... 5
Connections ................................................................................................... 7
Connecting to the Expression Pedal ............................................... 7
Troubleshooting ............................................................................................ 9
Specifications ............................................................................................... 10
MIDI Implementation ................................................................................ 11
MIDI Implementation Chart ..................................................................... 12
Copyright © 2000 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form
without the written permission of ROLAND CORPORATION.
Owner's Manual
INDEX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PK-25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roland PK-25

Summary of Contents for Roland PK-25

  • Page 1: Table Of Contents

    ● Single-cable connection to the VK-88 When connecting the PK-25 to the VK-88, the PK cable that is supplied with the VK-88 is the only connection required—no need for MIDI cables, analog cables, or an AC power adaptor.

  • Page 2: Using The Unit Safely

    Refer all servicing to your retailer, the nearest Roland S e r v i c e C e n t e r , o r a n a u t h o r i z e d R o l a n d distributor, as listed on the “Information”...
  • Page 3 • Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet. • Be careful when handling the expression pedal unit or attaching/detaching the expression pedal unit to/from the PK-25 so you do not get your fingers pinched.

  • Page 4: Power Supply

    • Do not allow rubber, vinyl, or similar materials to remain on the piano for long periods of time. Such objects can discolor or otherwise harmfully affect the finish. • If you slide the PK-25 over the floor, the floor could get scratched. To avoid this, lift the unit as you move it. Make sure to keep it level, though.

  • Page 5: Names And Functions

    POWER Switch This turns the power of the PK-25 on/off. If the PK cable that is supplied with the VK-88 is used to connect the PK-25 to the VK- MEMO 88, the PK-25 will turn on/off in tandem with the VK-88. The power switch of the PK- 25 need not be switched on/off.
  • Page 6 (sold separately) to make the connections. HOLD OUT (Hold Pedal output) Jack This jack outputs the on/off data from the Hold pedal. If you are using the PK-25 with the VK-8, you can use a monaural cable (phone-phone) (sold separately) to connect this jack to the VK-8’s HOLD PEDAL jack.

  • Page 7: Connections

    Connecting to the VK-88 (Turning the Power On) Use the PK cable that is supplied with the VK-88 to connect the VK-88 and PK-25. The supplied AC adaptor is not used. The PK-25 will be turned on/off by the power switch of the MEMO VK-88, regardless of the position of the PK-25’s own power switch.

  • Page 8: Connecting To The Vk-8 (Turning The Power On)

    By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices. Turn on the power of the PK-25, and make sure that the indicator on the PK-25’s rear panel is lit.

  • Page 9: Troubleshooting

    Hold pedal: VK-88 Owner’s Manual, p. 80 (HOLD PEDAL ASSIGN) Expression pedal: VK-88 Owner’s Manual, p. 82 (ORCHESTRAL TONES EXPRESSION) ◆If a MIDI cable is used to connect the PK-25 to the VK-8 • Check that the MIDI cable is connected correctly (p. 8).

  • Page 10: Specifications

    Specifications Pedalboard: •Control: •Connectors: •Power: •Current Draw: •Dimensions: •Weight: •Accessories: •Options: * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice. 25 keys Expression Pedal Foot Switch-L/R Damper (Hold) Switch Power Switch PK OUT Jack MIDI OUT Connectors...

  • Page 11: Midi Implementation

    MIDI Implementation Model: PK-25 (MIDI Pedal Keyboard) Date: Feb. 1, 2000 Version: 1.00 1. Transmitted Data ■Channel Voice Messages ●Note off Status 2nd byte 3rd byte kk = note number: 24H - 3CH (36 - 60) ●Note on Status 2nd byte...

  • Page 12: Midi Implementation Chart

    MIDI FOOTPEDAL Model PK-25 Function… Basic Default Channel Changed Default Mode Messages Altered Note Number : True Voice Note ON Velocity Note OFF After Key’s Touch Ch’s Pitch Bend Control Change Prog Change : True # System Exclusive SongPos System...
