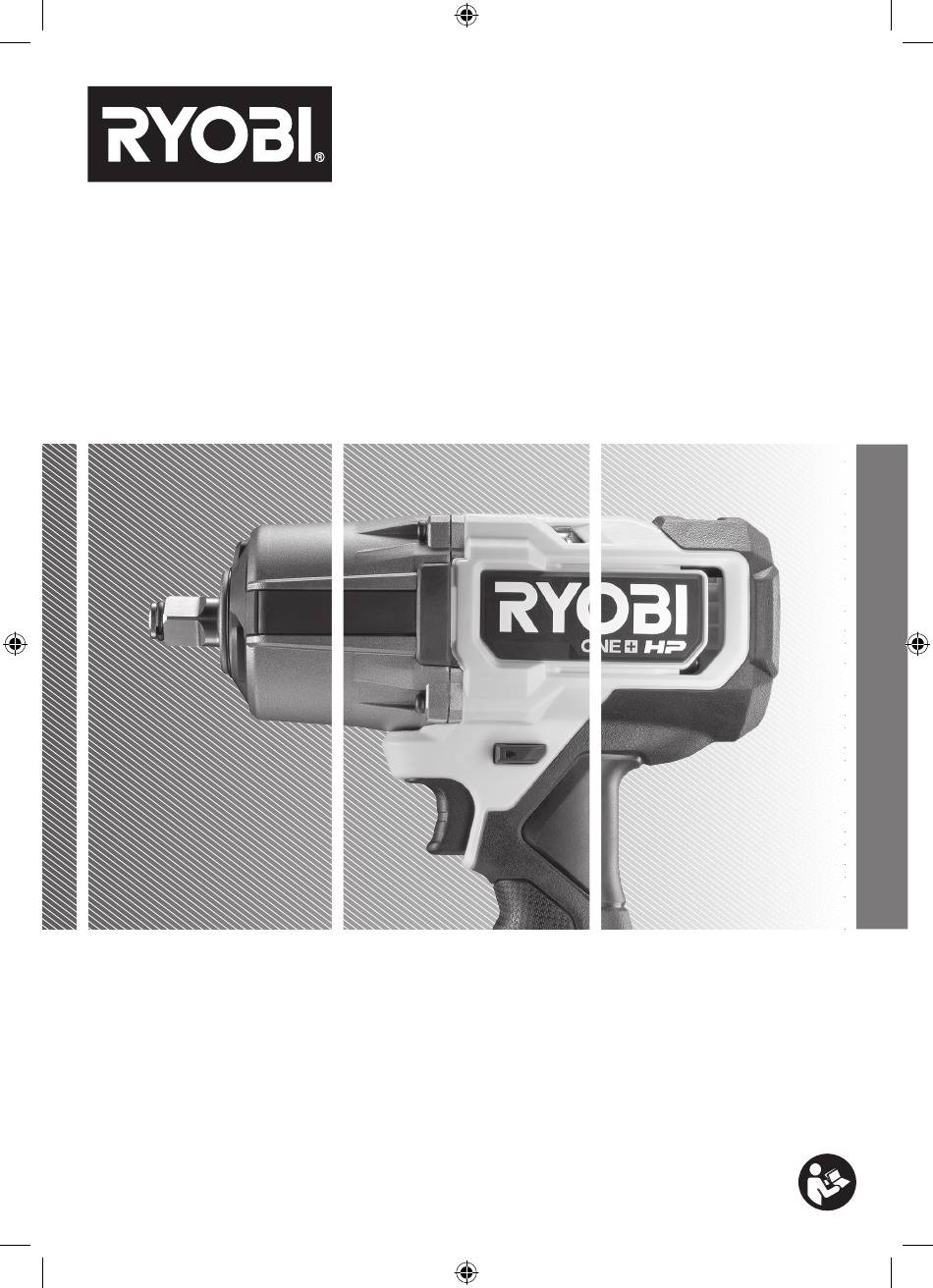

- Page 1 FRONT PAGE RIWH18X...
- Page 2 ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.
- Page 3 ■ Store idle power tools out of the reach of children ■ Never service damaged battery packs. Service and do not allow persons unfamiliar with the power of battery packs should only be performed by the tool or these instructions to operate the power tool. manufacturer or authorised service providers.
- Page 4 MAINTENANCE Speed, minimum ■ The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product Speed, maximum is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury.
- Page 5 LED worklight Anvil Direction of rotation selector Variable speed switch trigger Handle, insulated gripping surface Battery port Low speed Medium speed High speed “A” mode Mode selection button Belt clip Belt clip screw Operator’s manual Battery pack Charger Original Instructions...
- Page 6 p.4* *The “A” mode is a mode designed to give the user greater control in application and reduce damage to the fastener or work surface by automatically shutting the tool off after the tool senses the mechanism impacting for approximately one second.
- Page 7 PRODUCT SPECIFICATIONS BATTERY 18V Impact wrench Compatible battery pack (not included) Model RIWH18X RB18L13 RB18L20A RB18L50 RB1825C RB18L15 RB18L25 RB18L50A RB1840C Voltage 18 V RB18L15A RB18L25A RB18L60A RB1840X RB18L15B RB18L40 RB18L90A RB1850C Coupler 12.7 mm (1/2”) RB18L20 RB18L40A RB1815C RB1850X...
- Page 8 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961075694-01...
