Summary of Contents for EcoFlow EFD100

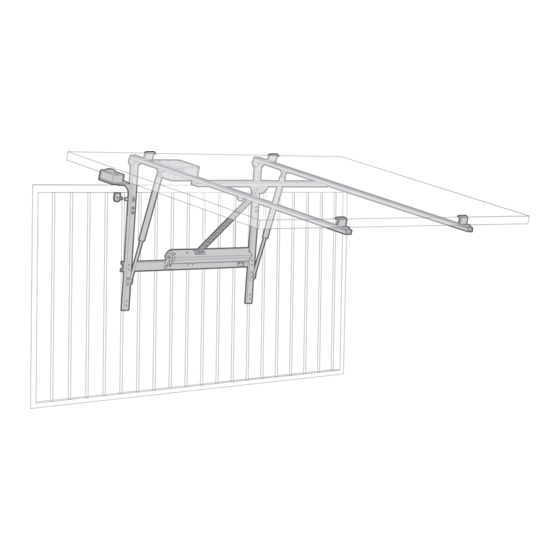

- Page 1 Single Axis Solar Tracker User Manual V1.0...
- Page 3 Any update, revision or termination of the content thereof, if necessary, will be made without prior notice, and users must visit the official website of EcoFlow for the latest information regarding the product.
-
Page 4: Table Of Contents
Contents Specifications Safety Instructions Pre-installation Guide Installation orientation Applicable balcony types Getting Started Control Buttons Product Features Charging Method Light Effects Troubleshooting Care and Maintenance... -
Page 5: Specifications
Specifications Basic Information Model EFD100 Net Weight Approximately 11 kg (24.3 lbs) Unfolded Dimensions (L × W × H) 1250×850×1000 mm (49.2×33.5×39.4 in) Folded Dimensions (L × W × H) 1250×223×88 mm (49.2×8.8×3.5 in) IP Rating IP54 Pitch Axis Range 10°-85°... -
Page 6: Safety Instructions
5. Check the connections of parts every three months to ensure that they are intact. 6. Keep the battery level (see it on EcoFlow app) between 30%-40% and power off the control box for long-term storage. The product will not be covered by the warranty if it is... -
Page 7: Pre-Installation Guide
Pre-installation Guide Installation orientation This product is used for tracking solar rays in a vertical direction to improve power generation efficiency. When selecting the installation orientation and location, refer to the following figure or consult a local solar installation vendor. Located in the Northern hemisphere Due south >... -
Page 8: Applicable Balcony Types
Applicable balcony types When installing the product onto the balcony railing, please ensure that it can bear the weight of the product and the solar panel, and pay attention to the requirements shown in the diagrams below. Installation on a balcony that is too small may cause risks. wrong directio shaded Railing dimensions... -
Page 9: Getting Started
1. Please remove the charging cables (including the USB-C cable and solar power cords) before turning off. 2. You can manually control the tilt angle of the product via the control box, the remote control (sold separately), and the EcoFlow app. -
Page 10: Product Features
When the difference value between the optimal angle and the current angle is small, frequent adjustment will cause unnecessary power loss. You can choose whether to maintain the current angle in the pop-up window in EcoFlow app . Sleep When the light intensity remains less than or equal to 30,000 lux for 5 minutes, the product will automatically retract and enter the sleep mode. - Page 11 Work Protection Rain protection/Wind protection The EcoFLow app will send warnings, and the product will enter sleep mode and automatically return to the zero position, when rain or snow is detected, or when the surrounding environment shakes (such as during a sudden earthquake or typhoon).
-
Page 12: Charging Method
Charging Method The product is shipped with a certain amount of electricity by default. After connecting to the solar panel, the control box can be recharged continuously. In a fully charged state, the battery life of the product is around 3 days. In the case of rain, snow, typhoon weather or other conditions where the solar panel cannot supply power stably and the battery is too low, it can be recharged through the USB-C port at the bottom of the control box. -
Page 13: Troubleshooting
Troubleshooting Find the error codes and solutions in EcoFlow app, or you can contact customer service for help. Care and Maintenance 1. Please check the connection of each component at least once every 3 months to ensure that they are not damaged or loose.
