- Page 1 In-ceiling Housing Installation Manual SHD-3000F3...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Overview What’s Included Installation Instructions Installation (OUTDOOR TYPE) Product Specifications 2_ SHD-3000F3... -
Page 3: Overview

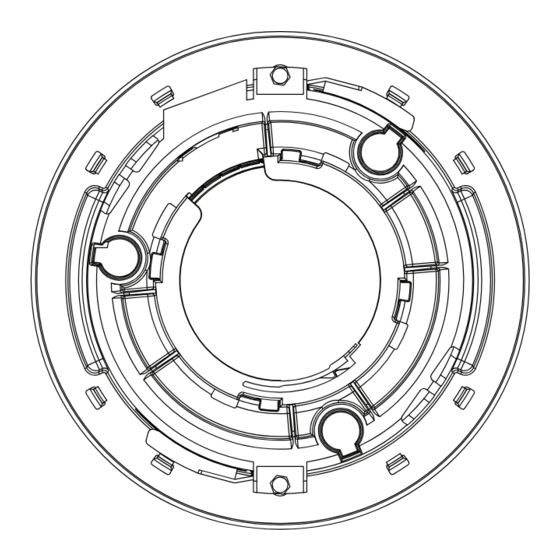

This In-CEILING HOUSING is a mounting ADAPTOR that is designed to mount the smart dome camera in built-in style on a double-layer ceiling. WHAT’S INCLUDED HOUSING SAFETY BRACKET (1EA) SAFETY WIRE (1SET) Lower bracket (exclusively for TEMPLATE (1EA) SCREW (2EA) indoor dome cameras) (1EA) In-ceiling Housing Installation Manual SHD-3000F3 INSTALLATION MANUAL SHD-3000F3 _3... -
Page 4: Installation Instructions
Place TEMPLATE A onto the CEILING BOARD to which you will attach the ceiling mount ADAPTOR and drill a hole of Ø198mm in diameter. See the figure below for the hole shape. Ø198mm Ø198mm 천장 보드 CEILING BOARD 형판 TEMPLATE 4_ SHD-3000F3... - Page 5 Refer to the installation manual of the camera that you want to install, and prepare necessary cables for camera connection. HOUSING 하우징 천장 CEILING HOUSING 하우징 홀 Hole External Cable 외부케이블 SHD-3000F3 _5...
- Page 6 If waterproofing in the connected cable jacket is poor, it may cause leaks. Make sure you tape it tight and thoroughly. The butyl rubber tape for waterproofing can extend at least twice as long as the original length. 6_ SHD-3000F3...
- Page 7 6. Combine the dome camera and the bracket using two screws. 7. Insert the bracket where the camera is mounted into the housing and fix it by turning it in the LOCK direction. When the installation is completed, remove both PROTECTIVE TAPE and PRETOECTIVE COVER from the lens. SHD-3000F3 _7...
- Page 8 8. Attach the COVER to the HOUSING. 하우징 HOUSING COVER 커버 Assemble the network cable through the hole on the bottom part of the housing. 8_ SHD-3000F3...
-
Page 9: Product Specifications
PRODUCT SPECIFICATIONS Item Specifications D224 X H106.9 Dimension (mm) Weight 490g Temperature -10°C ~ 50°C Material Color Ivory 224 (8.8") SHD-3000F3 _9...
