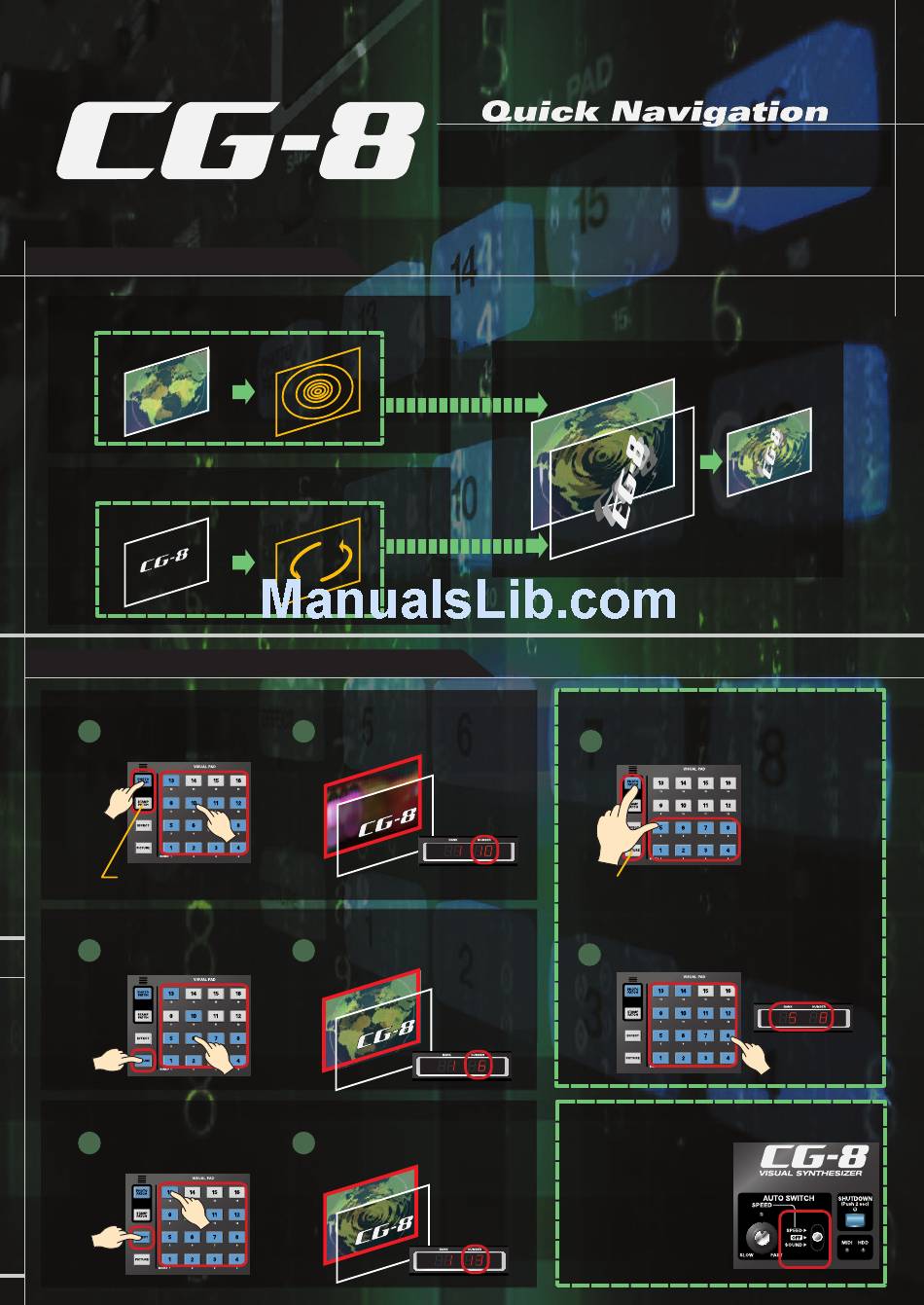

Image flow within the CG-8
Photo Patches
Stamp Patches
Switching Patches, Pictures, and Effects
Switching Patches
Press the [PHOTO PATCH] pad,
1
then press one of the number pads
that are lit.
1
* If you want to switch Stamp Patches,
press [STAMP PATCH].
Switching Pictures
Press the [PICTURE] pad, then press
1
one of the number pads that are lit.
1
Switching Effects
1
Press the [EFFECT] pad, then press
one of the number pads that are lit.
2
1
These are pictures (JPEG images) with an effect
(movement) applied.
Effect
These are pictures (PNG logos) with an effect
(movement) applied.
Effect
The patch in the video output will change,
2
and the display panel will indicate the patch
number you selected.
2
The picture in the video output will change,
2
and the display panel will indicate the
patch number you selected.
2
The effect in the video output will change,
2
and the display panel will indicate the patch
number you selected.
"See the sound. Hear the visuals."
The CG-8 is the world's first instrument that lets you "perform images" in real time.
This leaflet will explain the basic concepts of the CG-8 in just five minutes.
Video output
Photo Patch
Stamp Patch

Switching Banks

First, hold down the [PHOTO PATCH] pad and press
1
the desired bank (one of the number pads that are lit).
* Press [STAMP PATCH] if you want to switch Stamp Patches.
Press [PICTURE] if you want to switch Pictures.
Press [EFFECT] if you want to switch Effects.
Then, press one of the number pads that are lit; the
2
bank and patch will change.
AUTO SWITCH
If you want to use the pads to
switch patches, place "AUTO
SWITCH" at the "OFF" position.
SPEED
The patch will change
according to the setting of
the SPEED knob.
SOUND
The patch will change
according to the input sound.
The Photo Patch background is combined
with the Stamp Patch foreground.
