Oct. 2010

Table of Contents

Cautionary Notes ..............................................................2
Specifications .....................................................................3
Location of Controls .........................................................4
Location of Controls Parts List........................................4
Exploded View (Cabinet).................................................6
Exploded View (Cabinet) Parts List ...............................7
Exploded View (Chassis) .................................................8
Exploded View (Chassis) Parts List................................9
Wiring Diagram/Block Diagram..................................10
Parts List ...........................................................................12
Verifying the Version Number......................................15
Copyright © 2010 Roland Corporation
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of Roland Corporation.
Factory Reset ....................................................................15
Test Mode .........................................................................15
Circuit Board (Main Board) ...........................................18
Circuit Diagram (Main Board: 1/3) ..............................20
Circuit Diagram (Main Board: 2/3) ..............................22
Circuit Diagram (Main Board: 3/3) ..............................24
Circuit Diagram (Panel Board)......................................26
Circuit Diagram (Jack Board) ........................................28
Circuit Diagram (Input Board)......................................29
Circuit Diagram (PS Board) ...........................................29
17058699E0
SERVICE NOTES
Issued by RJA

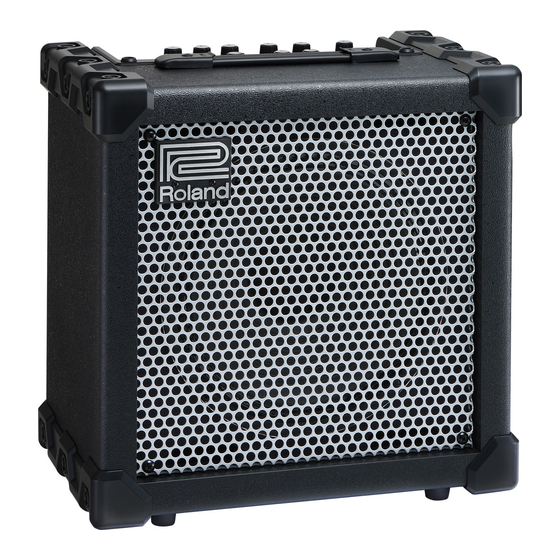

CUBE-40XL
CC-KWS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBE-40XL and is the answer not in the manual?

Questions and answers

Related Manuals for Roland CUBE-40XL

Summary of Contents for Roland CUBE-40XL

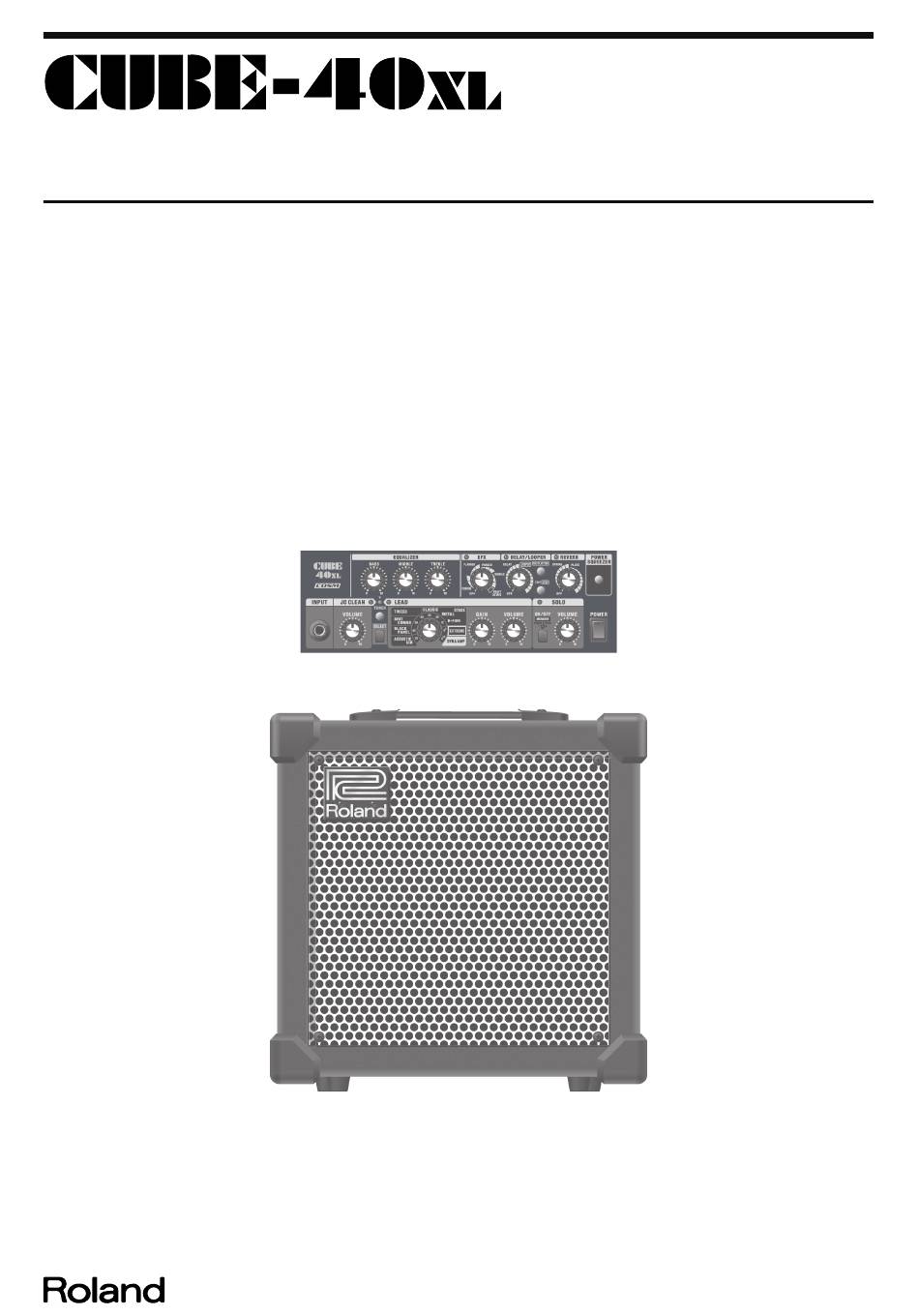

  • Page 1: Table Of Contents

    Circuit Diagram (Input Board)........29 Verifying the Version Number........15 Circuit Diagram (PS Board) ...........29 Copyright © 2010 Roland Corporation All rights reserved. No part of this publication may be reproduced in any form without the written permission of Roland Corporation. 17058699E0...

  • Page 2: Cautionary Notes

    • Because reissuance is restricted. • Because the part is made to order (at current market price). • Because it is carried in electronic data on the Roland web site. • Because it is a package or an accessory irrelevant to the function maintenance of the main body.

  • Page 3: Specifications

    GAIN Knob * Printed matters will not be supplied after the end of the production. Then, VOLUME Knob download the electronic file from the Roland web site. <SOLO> * In the interest of product improvement, the specifications and/or appearance of ON/OFF, MEMORY Switch this unit are subject to change without prior notice.

  • Page 4: Location Of Controls

    Oct. 2010 CUBE-40XL Location of Controls fig.panel-40XL.eps Location of Controls Parts List Part Code Part Name Description Q’ty 5100004182 POTENTIOMETER RD901F-40E1-15F-0B10K-00DN6 * This unit includes the following parts. 17048630 VR ACCESSORY NUT M9 40452178 VR WASHER M9 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10...
  • Page 5 Oct. 2010 CUBE-40XL...

  • Page 6: Exploded View (Cabinet)

    Oct. 2010 CUBE-40XL Exploded View (Cabinet) fig.bunkaizu.eps * Remove screws h and j first, then Chassis Assy can be removed.

  • Page 7: Exploded View (Cabinet) Parts List

    Oct. 2010 CUBE-40XL Exploded View (Cabinet) Parts List Parts Code Parts Name Description Q’ty 5100015008 GRILLE SD000017 BADGE SD000035 HANDLE WITH ESCUTHEON * This unit includes the following parts. 5100011381 HANDLE 5100011382 HANDLE PLATE 5100011383 HANDLE HOLDER 5100015546 CABINET ASSY * This unit includes the following parts.

  • Page 8: Exploded View (Chassis)

    Oct. 2010 CUBE-40XL Exploded View (Chassis) fig.chassis-e.eps This part faces different side according to the voltage. 100V, 117VU, others 117VU/CS...

  • Page 9: Exploded View (Chassis) Parts List

    Oct. 2010 CUBE-40XL Exploded View (Chassis) Parts List Parts Code Parts Name Description Q’ty 5100014936 MAIN BOARD ASSY * This unit includes the following parts. 5100015021 HEATSINK 5100015016 CHASSIS 5100016067 PANEL SHEET ASSY 100/117V * This unit includes the following parts.

  • Page 10: Wiring Diagram/Block Diagram

    Oct. 2010 CUBE-40XL Wiring Diagram/Block Diagram fig.wiring-block-40XL.eps@L IC11B IC10B JK500 IC9A YKB21-5012 IC10A IC9B AD/DA TUBE LOGIC INPUT BOARD CIRCUIT EEPROM (PROGRAM) IC200 BU2090 EEPROM (USER) ◊11 CPU/DSP ◊6 IC201 TC74HC 4051AP(F) ◊7 SDRAM ◊4 MAIN BOARD +V1, -V1, +V2, -V2...
  • Page 11 Oct. 2010 CUBE-40XL fig.wiring-block-40XL.eps@R IC11A JK404 HTJ-035-09ABT Power AMP IC16 RECORDING OUT/ PHONES JK403 YKB21-500 6 IC17 DELAY/ PLAY/REC/DUB JK400 YKB21-500 6 EFX/REVERB JK401 YKB21-500 6 MUTE CIRCUIT SELECT/SOLO ER SUPPLY JK402 YKB21-500 6 JACK BOARD 2, +8V, -8V, +3.3V, +1.5V...

  • Page 12: Parts List

    Oct. 2010 CUBE-40XL Parts List fig.-part1-e.eps Due to one or more of the following reasons, Safety Precautions: parts with parts code ******** cannot be supplied as service parts. The parts marked have safety-related characteristics. Use only listed parts for replacement.
  • Page 13 Oct. 2010 CUBE-40XL WIRING, CABLE 5100015676 WIRING 192-AP018-W1 5100017216 WIRING 192-AP018-W3 5100017217 WIRING 192-AP018-W4 5100015938 WIRING 195-BG431-W3 5100015936 WIRING 195-BG431-W4 5100015939 WIRING 195-BG431-W5 5100015937 WIRING 196-BG432-W6 5100015934 WIRING 196-BG432-W7 5100015935 WIRING 196-BG431-W8 TRANSFORMER 5100016080 POWER TRANSFORMER PT-AP018 100/117V for low voltage...
  • Page 14 Oct. 2010 CUBE-40XL MISCELLANEOUS 5100004215 LED SPACER LEDH-2 5100004216 LED SPACER LEDH-7 5100005211 SEAL UL LIGHTNING FLASH 5100015942 ACETATE TAPE #156A 35X25XT0.25 5100016363 ACETATE TAPE #156A 275*10*0.25 5100000603 TERMINAL PT1870502 04892501 TERMINAL JH-8M3-T 40231345 BOND KONISHI BOND CYEREX100 330ML ACCESSORIES (Standard) 5100016038 OWNER’S MANUAL...

  • Page 15: Verifying The Version Number

    Oct. 2010 CUBE-40XL Verifying the Version Factory Reset Number Ordinary servicing or part replacement requires no factory reset. In the future, however, updates to the software version may make a factory reset necessary, and so the procedure is described below. (or refer to the Owner’s Manual, p.
  • Page 16 Oct. 2010 CUBE-40XL 2. Switch Test Entering the Switch Test makes all LEDs go out. Carry out operations in the sequence shown below and check the status of the corresponding LEDs. Pressing the SELECT switch makes the LEFT (JC CLEAN), CENTER, and RIGHT (LEAD) LED light up.
  • Page 17 Oct. 2010 CUBE-40XL 3. Volume Control Test AUX IN to PHONES Output Verification Adjust the LEAD control to ACOUSTIC SIM. When entering Volume Test, all LEDs go off temporarily. To the RECORDING OUT/PHONES jack, connect the 1/4-inch stereo Operate the following knobs of (1)–(10) minimum–center–maximum in phone plug 100-Ω...

  • Page 18: Circuit Board (Main Board)

    Oct. 2010 CUBE-40XL Circuit Board (Main Board) fig.b-MAIN-1.eps...
  • Page 19 Oct. 2010 CUBE-40XL fig.b-MAIN-2.eps...

  • Page 20: Circuit Diagram (Main Board: 1/3)

    Oct. 2010 CUBE-40XL Circuit Diagram (Main Board: 1/3) fig.d-MAIN-1-e.eps@L arrangement...
  • Page 21 Oct. 2010 CUBE-40XL fig.d-MAIN-1-e.eps@R...

  • Page 22: Circuit Diagram (Main Board: 2/3)

    Oct. 2010 CUBE-40XL Circuit Diagram (Main Board: 2/3) fig.d-MAIN-2-e.eps@L + termi...
  • Page 23 Oct. 2010 CUBE-40XL fig.d-MAIN-2-e.eps@R nal to Jack Board...

  • Page 24: Circuit Diagram (Main Board: 3/3)

    Oct. 2010 CUBE-40XL Circuit Diagram (Main Board: 3/3) fig.d-MAIN-3-e.eps no signal non clip...

  • Page 25: Circuit Board (Panel, Jack, Input, Ps Board)

    Oct. 2010 CUBE-40XL Circuit Board (Panel, Jack, Input, PS Board) fig.b-PANEL.eps...

  • Page 26: Circuit Diagram (Panel Board)

    Oct. 2010 CUBE-40XL Circuit Diagram (Panel Board) fig.d-PANEL.eps@L...
  • Page 27 Oct. 2010 CUBE-40XL fig.d-PANEL.eps@R...

  • Page 28: Circuit Diagram (Jack Board)

    Oct. 2010 CUBE-40XL Circuit Diagram (Jack Board) fig.d-JACK.eps...

  • Page 29: Circuit Diagram (Input Board)

    Oct. 2010 CUBE-40XL Circuit Diagram (Input Board) fig.d-INPUT.eps Circuit Diagram (PS Board) fig.d-PS.eps...
