ABSCO SHEDS A15151FKFD Manual

Chicken coop
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
Absco Industries

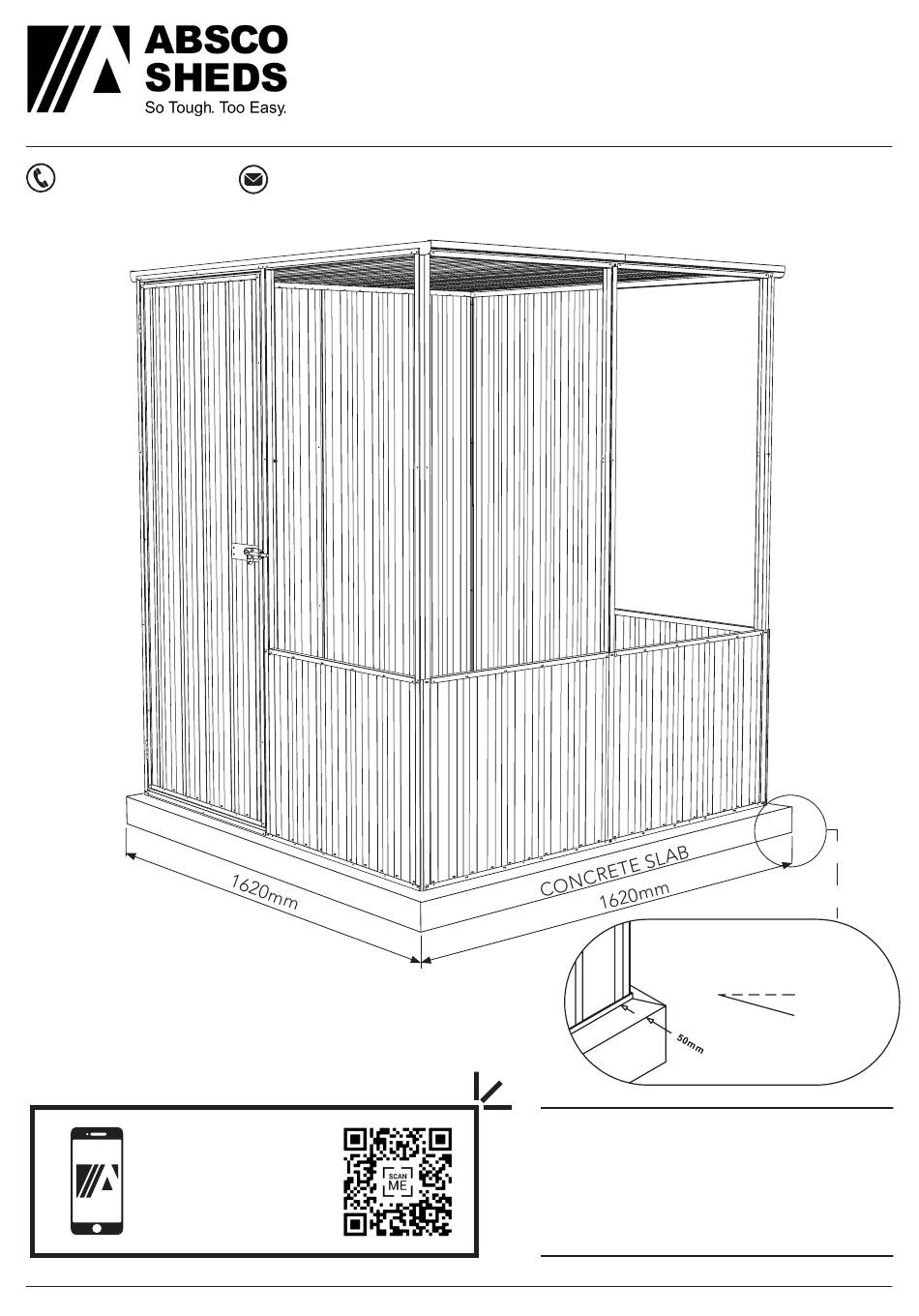

Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15151FKFD
1.52mW x 1.52mD x 1.80mH
admin@absco.com.au
www.abscosheds.com.au
Model: A15151FKFD
WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
28/04/2022
50mm
10mm
2.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A15151FKFD and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS A15151FKFD

Summary of Contents for ABSCO SHEDS A15151FKFD

  • Page 1 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au WHEN LAYING YOUR CONCRETE SLAB, CHAMFER THE 50mm EDGES DOWNWARDS BY 10mm. 50mm 10mm THIS WILL ENSURE THAT WATER RUN OFF IS KEPT...
  • Page 2 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
  • Page 3 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH COMPONENT PACKING LIST Check off all components. SHEETING COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1785 x 773mm 1785 x 773mm STEEL SHEET STEEL SHEET...
  • Page 4 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH COMPONENT PACKING LIST Check off all components. CHANNEL PACK COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION CHANNEL CHANNEL 1785mm 1513mm CHANNEL CHANNEL 1513mm 1488mm CHANNEL CHANNEL 1498mm 1498mm CHANNEL...
  • Page 5 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 6 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH ROOF AND WALL OVERVIEW Door and mesh panels not shown for illustrative purposes. Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...
  • Page 7 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH ROOF PANEL ASSEMBLY 1x required FAST001 x4 FAST001 x8 Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...

  • Page 8: Door Panel Assembly

    ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH DOOR PANEL ASSEMBLY FAST001 x12 1x required Position 12A Narrow pan of sheet midway along the to this side door. Side channels of door are to be orientated opposite to top and 20mm fl...
  • Page 9 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH Turn over the panel and fi t braces. FAST001 x14 Using the jambs as templates drill 3mm holes into the sheet and secure with screws from the outside of the sheet.

  • Page 10: Left Side Panel

    ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH LEFT SIDE PANEL 1x required FAST001 x7 Prepare one short sheet Notch out both bottom corners as shown using tinsnips. Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...
  • Page 11 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH LEFT SIDE PANEL NOTE: 31D sheet is positioned behind jamb 89B Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...
  • Page 12 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH DOOR PANEL ASSEMBLY FAST009 x6 Lay the LEFT SIDE PANEL Using three rivets per hinge, NOTE: Run the 3mm drill bit face up and lay the DOOR FAST009, secure the door to...

  • Page 13: Right Side Panel

    ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH RIGHT SIDE PANEL 1x required Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...
  • Page 14 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH RIGHT SIDE PANEL FAST001 x2 Prepare a short sheet Notch out both bottom corners as shown using tinsnips. FAST001 x10 Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...

  • Page 15: Rear Panel Assembly

    ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH REAR PANEL ASSEMBLY 1x required FAST001 x2 Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...

  • Page 16: Front Panel

    ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH FRONT PANEL FAST001 x7 Prepare two short sheets Notch out both bottom corners as shown using tinsnips. Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...
  • Page 17 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH FAST001 x4 FAST001 x13 Absco Industries Assembly Instruction Manual Model: A15151FKFD 28/04/2022...
  • Page 18 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH FITTING MESH PANELS FAST001 x6 MESH NOTE: 70D has twin holes, use the lower of the two to fi x the mesh panel. The mesh panels are fi xed to the interior The middle two are to be done from the of the wall panels.
  • Page 19 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
  • Page 20 ABSCO CHICKEN COOP MODEL: A15151FKFD 1.52mW x 1.52mD x 1.80mH FINAL CONSTRUCTION FAST001 x16 Line up the holes in the roof sheet with front and back top channels. Secure with screws. Line up the holes in the roof lips with holes in the top channel of the side panels.
  • Page 21 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 22 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 19 December 2018 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
  • Page 23 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
