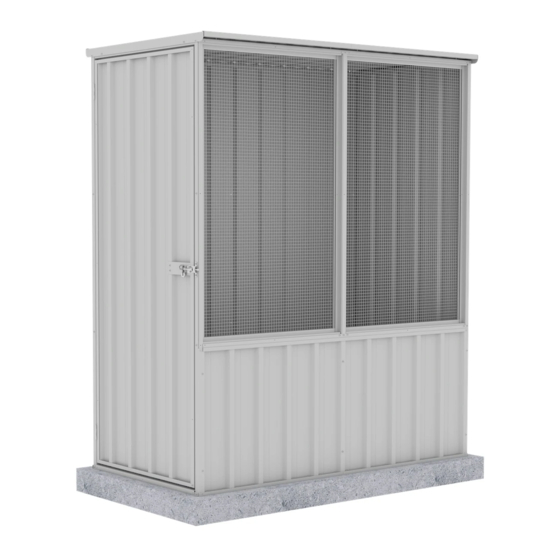

ABSCO SHEDS A15081FKFD Manual

Chicken coop
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
Absco Industries
Assembly Instruction Manual

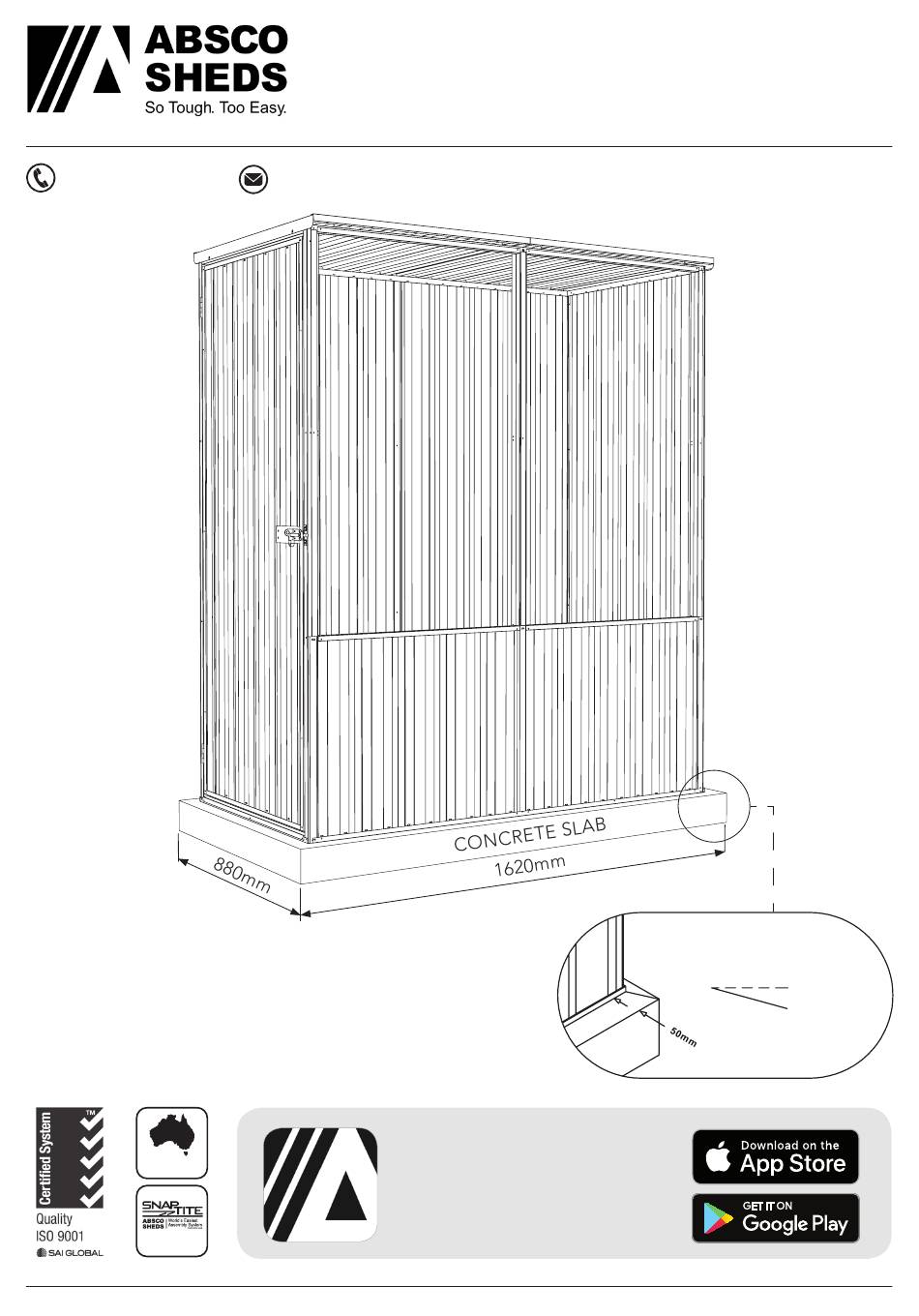

ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
admin@absco.com.au
www.abscosheds.com.au
Download the Absco
Sheds Assembly App
for instructional videos
Model: A15081FKFD
WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
50mm
10mm
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
13/08/19
2.2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the A15081FKFD and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS A15081FKFD

Summary of Contents for ABSCO SHEDS A15081FKFD

  • Page 1 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au WHEN LAYING YOUR CONCRETE SLAB, CHAMFER THE 50mm EDGES DOWNWARDS BY 10mm. 50mm 10mm THIS WILL ENSURE THAT WATER RUN OFF IS KEPT...
  • Page 2 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
  • Page 3 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH COMPONENT PACKING LIST Check off all components. SHEETING COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1785 x 773mm 1785 x 773mm STEEL SHEET STEEL SHEET...
  • Page 4 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH COMPONENT PACKING LIST COMPONENT PACKING LIST Check off all components. Check off all components. CHANNEL PACK COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION CHANNEL CHANNEL 1785mm 1513mm CHANNEL CHANNEL...
  • Page 5 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 6 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH ROOF AND WALL OVERVIEW MESH MESH Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...
  • Page 7 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH ROOF PANEL ASSEMBLY 1x required FAST001 x3 FAST001 x6 Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...
  • Page 8 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH RIGHT SIDE PANEL ASSEMBLY 1x required FAST001 x4 Inside view of 80L and Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...

  • Page 9: Door Panel Assembly

    ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH DOOR PANEL ASSEMBLY FAST001 x12 1x required Position 12A Narrow pan of sheet midway along the to this side door. Side channels of door are to be orientated opposite to top and 20mm fl...
  • Page 10 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH Turn over the panel and fi t braces. FAST001 x14 Using the jambs as templates drill 3mm holes into the sheet and secure with screws from the outside of the sheet.
  • Page 11 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH LEFT SIDE PANEL ASSEMBLY 1x required FAST001 x14 FAST001 x8 Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...
  • Page 12 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH DOOR PANEL ASSEMBLY FAST009 x6 Lay the LEFT SIDE PANEL Using three rivets per hinge, NOTE: Run the 3mm drill bit face up and lay the DOOR FAST009, secure the door to...

  • Page 13: Rear Panel Assembly

    ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH REAR PANEL ASSEMBLY 1x required FAST001 x2 Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...

  • Page 14: Front Panel

    ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH FRONT PANEL FAST001 x7 Prepare two short sheets Notch out both bottom corners as shown using tinsnips. Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...
  • Page 15 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH FAST001 x4 FAST001 x13 Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...
  • Page 16 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH FITTING MESH PANELS FAST001 x6 MESH NOTE: 70C has twin holes, use the lower of the two to fi x the mesh panel. The mesh panels are fi xed to the interior The middle two are to be done from the of the wall panels.
  • Page 17 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
  • Page 18 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH FINAL CONSTRUCTION FAST001 x12 Line up the holes in the roof sheet with front and back top channels. Secure with screws. Line up the holes in the roof lips with holes in the top channel of the side panels.
  • Page 19 ABSCO CHICKEN COOP MODEL: A15081FKFD 1.52mW x 0.78mD x 1.80mH Absco Industries Assembly Instruction Manual Model: A15081FKFD 13/08/19...
  • Page 20 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 19 December 2018 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
  • Page 21 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
