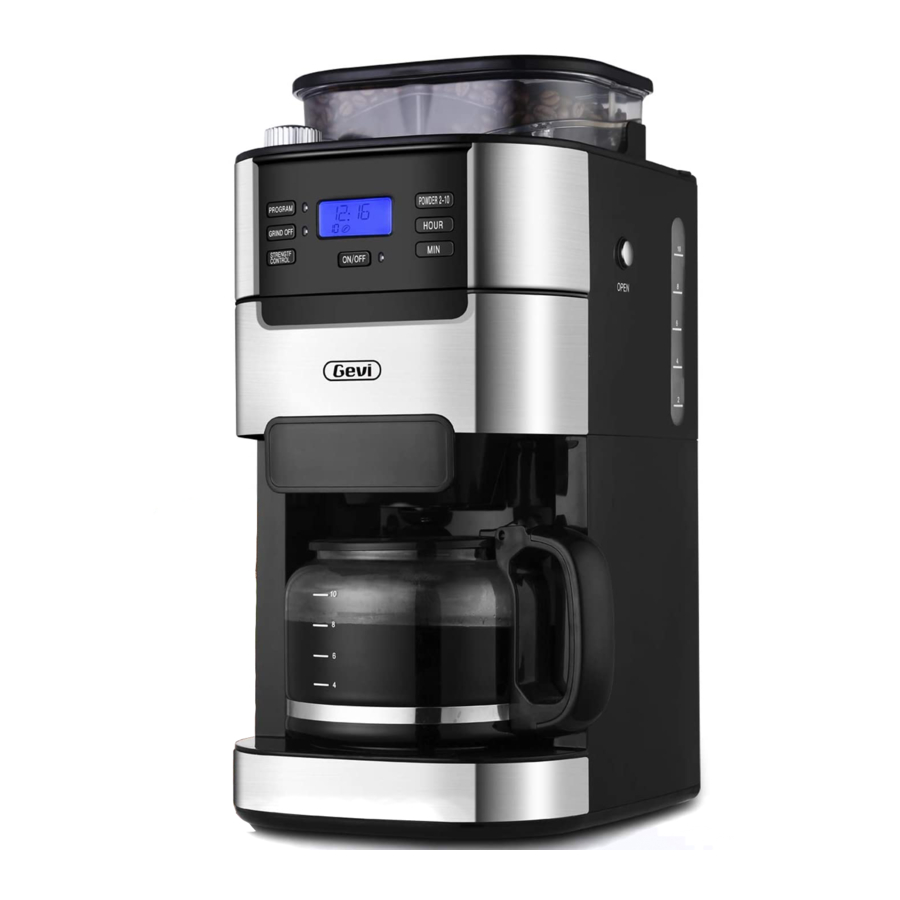

Gevi GECMA025AK-U - 2-in-1 Smart Drip Coffee Machine Manual

Important Safeguards

Product notices:

1. Place the machine on a hard, flat, level surface to avoid interruption of airflow underneath the machine.
2. Do not operate the machine with an empty water tank.
3. Keep the area above the machine clear during use, as hot steam will escape from the machine.

Features

Electrical parameters: 120V~ 60Hz 900W

1. Filter Ring
   Pick up the ring to access to Filter Basket. Filter Ring becomes hot after coffee is brewed. Use caution when removing it.
2. Permanent Filter
   Using our permanent filter may allow some fine coffee grounds to fall into and appear as sediment in the carafe. If you mind, please use a piece of filter paper instead. Do not use the Permanent Filter & filter paper together.
3. Filter Insert With Drip Stop
   Holds paper filter or permanent filter.
4. Swing-out Filter Basket
   Used to fix the filter insert.
5. Coffee Carafe
   The easy-pour and dripless carafe is available for making coffee for 2 to 10 cups.
6. Measuring Spoon
   One spoon is around 7g of powder.
7. Bean Container Lid
   With sealing lid can better seal the beans.
8. Bean Container
   The lid can be easily opened for adding beans.
9. Water Tank Lid
   The lid can be easily flipped back for adding water.
10. Grind Regulator
    Comes with 8 grind settings for different powder sizes.
11. Filter Basket Release Button
    Can be pressed to release the filter basket.
12. Control Panel
    A crystal-clear LED screen comes together with highly-intuitive controls, more simple and convenient to operate and bring you a prefect coffee-making experience.
13. Water Tank
    A big tank enough for 2 to 10 cups of coffee.
14. Warming Plate
    Scratch resistant with a nonstick coating. After brewing, the coffee can be kept warm about 2 hours, then the machine will cut off power automatically, helping to save energy.

1. PROGRAM Button
   Programmable time-setting for auto coffee.
2. GRIND OFF Button
   For turning off the grinder if pre- ground coffee is used.
3. STRENGTH CONTROL Button
   Three settings deliver different coffee strengths - strong, medium and mild, flavor is customizable to better suit your taste.
4. PROGRAM Indicator
   The PROGRAM Indicator stays fully illuminated when setting the auto-on time.
5. GRIND OFF Indicator
   The GRIND OFF Indicator stays fully illuminated when using pre- ground coffee.
6. ON/OFF Button
   When the setting is completed, click the ON/OFF Button to start or pause/exit the brewing. Long press for 2 seconds to turn off.
7. ON/OFF Indicator
   The ON/OFF Indicator stays fully illuminated when grinding and brewing.
8. Display Screen
   Easy to read LCD display with the 24-hour clock and auto-on programming.
9. POWDER 2-10 Button
   Allows you to customize quantity for perfect coffee.
10. HOUR Button
    Use to program hour function. Hold buttons down to scroll through the digits quickly, or press and release to advance one digit at a time.
11. MIN Button
    Use to program minute function. Hold buttons down to scroll through the digits quickly, or press and release to advance one digit at a time.

More Details

2-in-1 Smart Drip Coffee Machine
2-in-1 smart drip coffee grinder & brewer machine, each element held to the most exacting professional- grade standards for a quick cup of coffee.

Built-In Stainless Steel Burr Grinder

• With spiral cone cutter and fixed grinder.
• Produces perfectly consistent particle sizes ideal for coffee brew.

Advanced Coffee Powder Straight Drop Structure
Less coffee powder residual and won't be blocked.

8 Coffee Grind Control Grade
Choose the grinding thickness for your favorite brewing way.

2-10 Cup Grinding Selection
Accurately control the beans & powder amount.

2-in-1 Coffee Beans Or Coffee Powder

• Place the Coffee beans in the Beans box.
• Put the coffee powder in the filter.

1.5L Large Capacity
Can brew up to 10 cups of coffee. Set powder amount (2, 4, 6, 8 or 10 cups) by pressing the POWDER 2-10 button according to your need. The default value is 10 cups.

Coffee Strength control (3 Taste)
Optimum flavor through brewing settings. Three settings deliver coffee just the way you like it, with a choice of strong, medium, or mild for flavor customized to your taste.

Blooming Function
In order to retain a more full-bodied coffee aroma, the machine features blooming function. The coffee grounds are moistened with hot water before brewing and they will swell up, because of which the coffee taste will become more intense.

Drip-Stop Function
Allows you to pull out coffee carafe within 30 seconds before brewing is finished.

Warmer Plate
After brewing, coffee in the carafe can be warmed at around 158-176℉ on the warmer plate for up to 120 minutes. The machine will power off automaticall to save energy.

24h Programmable Automatic Start Function
Put coffee beans/powder and set time in advance, it will operate automatically.

NOTE
The clock is a 24-hour clock.

Before First Use

We recommend flushing out the system before brewing your first pot of coffee by following the below steps. Once you've done that, brew a pot of real coffee and get ready to enjoy Gevi at its best!

Step 1. Remove Packaging
Remove all protective films and other packaging material from the machine.

Step 2. Position Machine
Place the machine on a flat stable surface and ensure a minimum of 10 cm. Free space around the machine. This machine is not suitable for insta- llation in a cabinet or for outside use.

Step 3. Wash & Dry Parts

• Wash the 6 parts listed below
  • Permanent Filter
  • Measuring scoop
  • Bean Container Lid

Below 2 parts are NOT DISHWASHER SAFE:

• Coffee Carafe
• Filter Insert With Drip Stop

• Wash
  • Make sure that the machine is switched off, has cooled down and the power plug is disconnected.
  • Press the"Filter Basket release button"on the side of the machine to open the Swing-out Filter Basket.
  • Remove the filter ring.
  • Take out the filter insert together with the permanent filter.
  • Wash the filter insert and the permanent filter in warm water with a mild detergent. Never use abrasive products.
  • Wipe the swing-out filter with warm water with a mild detergent. Never use abrasive products.
  • Put in the warm water to the coffee carafe and empty it.
• Rinse and dry each part thoroughly then place on the machine.

Do not immerse the machine in water or any other liquid.

Step 4. Preparing to Prime Machine

This priming step must be completed prior to first use.

• Fill Water Tank
  • Ensure that the machine is at the power-off situation.
  • Add fresh clean water to Coffee Carafe below the 10-cup marking.
  • Open the tank lid and filling fresh clean water to the water tank then close it.


NOTE

• Make sure that the Water Tank is clean & free of any debris, as any fine particles can block the water flow.
• To avoid damaging the machine only fill the water tank with cold tap water.
• Never fill water above the 10-cup marking. The water container has an overflow opening in the back.
• Please fill the same amount of water quantity same as the final cups of coffee you select, such as fil in 2 cups of water, you should choose 2 cups of coffee, as the machine will finish boiling all the water in water tank.

• The machine starts processing the water into the carafe.
• After all water has passed through, push the ON/OFF Button again to turn off machine.
• Empty carafe to pour.
  Repeat the above steps for 2 times.

NOTE
If water is not running through contact Gevi Customer Care.

Making Coffee

Perfect Coffee Tips

Tips: Water
Coffee is 98% water. The quality of that water is as important as the quality of your coffee. If water doesn't taste good from the tap, it won't taste good in your coffee. Every time to use water and ensure that water had removed chlorine, bad tastes and odors, for the purest coffee flavor, every time you brew.

Tips 2: Bean
While coffee is 98% water, all of the flavor comes from the beans. To achieve the same great taste you enjoy at a coffee bar, buy only a two-week supply of fresh coffee beans at a time. Once the bean is broken, its flavor degrades quickly. That's why Gevi grinds your beans just prior to brewing.

Tips: Grind
The grind is critical for proper flavor extraction. If the grind is too fine, overextraction and bitterness will result. Too fine a grind may also clog the filter. If grind is too coarse, the water will pass through too quickly and the maximum flavor will not be extracted. Gevi machine is preset for medium, the optimal grind for this type of brewing process.

Tips 4: Proportion
Coffee that is too strong or too weak is always a disappointment. Follow the recommended portions of whole beans or ground coffee in the instructions under MAKING COFFEE, and later adjust the amount to your taste.

NOTE
Do not overfill or the grinder could malfunction and/or overflow.

Operation Tips

Grinding Beans

NOTE
We suggest not placing too much coffee bean in bean container to avoid the moist of coffee beans. If add more than 200g of coffee beans, this could cause the grinder to malfunction and/or the machine to overflow.

• For first time use, use the coarsest setting ‒ the largest dot.
  • For dark oily beans use the coarsest setting. For light, dry beans use the finer settings.
  • The grind is critical for proper flavor extraction. If the grind is too fine, over extraction and bitterness will result.
    Too fine a grind may also clog the filter. If grind is too coarse, the water will pass through too quickly and the maximum flavor will not be extracted. Your coffeemaker is preset for medium, the optimal grind for this type of brewing process.
• If you buy large portions of beans, separate them into one or two week portions and store them in airtight containers in the freezer.
  • Preserve freshness by minimizing exposure to air, light, and moisture. Once beans are removed from the freezer, keep them in a sealed container at room temperature, since damaging condensation can occur when beans move from cold to warmer temperatures.
  • Do not store beans in the freezer directly.

If you fill beans from freezer directly into the grinder, moisture will seep into the burrs and the feeder channel. The moisture makes the ground coffee stick in the feeder channel and will clog it up over time,

• Some experts feel freezing dark- roast beans can cause oils to coagulate; others disagree. You'll have to decide that one for yourself!
  • Your coffee machine burr grinder is calibrated to work with all different kinds of roasts. Dark, oily beans will leave some oil residue in the feeder channel. Over time this can slow down the flow of ground coffee. Deep roasted beans are not suitable for this coffee machine, and it is easy to damage the grinder.
• Do not use sugar or powder coated beans in the grinder (e.g. cinnamon, chocolate, vanilla etc). Coated beans can pit the bean container. The coating might stick to the burrs and, over time, will reduce the perfor- mance of the grinding mechanism.
  • Do not add any liquid flavorings or syrups to the beans.

TIP
Do not reuse coffee powder since this will greatly reduce the coffee's flavor. Reheating coffee is not recommended as coffee is at its peak flavor immediately after brewing.

As long as the grinder is in operation, do not open the bean container lid and do not insert your finger or any other object into the grinder. After brewing is finished the ON/OFF red indicator light will turn off. For the next 1 to 2 minutes hot coffee will still pass from the filter into the carafe.

• To serve coffee, remove the carafe from the platform. Push and hold the pouring lever to serve coffee.

Brewing

To avoid damaging the machine only fill the water tank with cold tap water.

• Do not place parts of the body under the drip stop while the machine is in operation.
  Use the supplied measuring Spoon for purpose. Refer to the following table for the required amount:

TIPS

• 7g or 1 spoon of powder for 1-cup coffee recommended, but you may adjust according to personal taste.
• The maximum capacity for ground coffee is 70g coffee powder, using either a disposable coffee filter or permanent filter. Exceeding that amount may cause overflow if the coffee is too finely ground.
• You can also use a permanent filter instead of a disposable coffee filter. The filter and filter paper cannot be used at the same time.

• Paper Filter - place a basket paper filter in the Filter Insert, making sure the filter is completely open and touching the side walls and bottom of Filter Insert.
• Commercial-Style Permanent Filter - Be sure the filter handle is facing away from the grinder basket, so it does not interfere with the flow of ground coffee into the filter basket.

NOTE
Some ground coffee may flow into the carafe.

The amount of water added should be the same as the amount of powder cup you choose, such as you choose 2 cups of powder and you should add 2 cups of water, otherwise the machine will finish boiling all the water in water tank would cause weak of coffee.

TIPS
When you had set the strong strenght, but still tasted not strong enough. We suggest you to add less amount of water, and select for more powder. (e.g. select POWDER 2-10 Button for 4 cups, but add 2 cup of water, the flavor will be stronger).
The coffee you get would less than the water you pour in as some water had been absorbed by coffee powder.

Brew Pause Feature
Our Brew Pause feature interrupts the flow of coffee from the basket to let you pour that first cup mid- brew. Be aware that using this feature will weaken the flavor strength of the finished pot, because the flavor profile of coffee brewed at the beginning of the cycle differs from coffee made at the end.

NOTE
Removing carafe for more than 20 seconds may cause filter basket to overflow.

Drip Stop / Stop And Serve

• While the coffee is brewing you can remove the carafe to pour a cup or two. The drip stop will close automatically.
• To avoid any overflow, replace the carafe within 20 seconds.

The drip stop might not close completely allowing coffee to drip on to the platform. In this case immediately place carafe back into the machine and let all the coffee flow into the carafe.

After brewing is finished, check the Permanent Filter for any clogging and rinse the filter insert to remove any coffee particles from the drip stop.

Operation-Make Coffee With Coffee Beans

1. Fill the Water Tank

   Puting your desired cup according to the Coffee Carafe mark, then open the water tank lid and pour in water.
   1. Never pour hot water, milk, coffee powder or tea into water tank.
   2. For best coffee results, use filtered water & freshly roasted coffee beans.


      NOTE
      The coffee amount is referred to the Mark on the machine's water tank. The makr on the carafe in the same with the mark on the water tank. You can fill water according to the Mark to get the same cups of coffee. For example, if you want 8 cups of coffee, fill water to Mark 8 of the water tank.


      NOTE
      Please do not fill the water mark exceed 10 cup mark on water level indicator. Doing so could cause carafe to overflow.
2. Put Coffee Beans

   Open the lid of the bean container and wipe it with dry cloth to make sure it is dry inside.

   Do not use unroasted, caramelised or sugar-coated coffee beans.

   Add no more than 200 g of coffee beans to the bean container.

   NOTE
   • The bean container will hold approximately 200 grams of beans, good for two full pots of coffee in grinder setting 10.
   • Never fill the bean container with frozen or coated beans.
   • The amount of beans to be ground is controled by the grinding time through selecting the cups of coffee. So it will not grind all of the beans at one time. So it is suggested to add the proper amount of coffee beans as the coffee amount you want to prevent getting damp overnight.
   • This machine is not suitable for deep roasted beans.

     Replace and firmly press down the lid. Make sure that the water container lid is closed to prevent beans from spilling into the water container.
     Must clean the excess coffee beans inside the box after each use and use a dry towel to clean thebean container.
3. Insert Coffee Filter


   Press lightly and vertically the O Filter Basket release button to open the swing-out filter.

   NOTE
   Please do not put the carafe on the warm plate before opening the door of the funnel container as it may cause damage to the Filter Basket Release Button.

   NOTE
   If the Filter Basket Release Button is stuck and the door of the funnel container cannot be closed, please press it harder vertically for several times to reset the button.

   Put the permanent filter or paper filter and filter ring into the filter insert to become a whole funnel assembly.

   Put the funnel assembly (filter ring, permanent filter and filter insert) into the funnel container. Make sure the tube of the filter assembly aligns with groove of the Swing-out Filter Basket. Close the Swing-out Filter Basket firmly.
4. Start Up

   Insert the Power Plug. The machine switches on automatically.
5. Choose Cups

   Press POWDER 2-10 Button to set the number of cups for the powder and water. The default number is 10, and you can select 2,4,6,8,10 cups through pressing the button.

   NOTE
   The amount of powder cup you choose should be the same as the amount of water you added, such as you added 2 cups of water and you should add 2 cups of powder. If you pour more water than the number of cups you choose, it will cause the coffee to become weak (because the machine will brew all the water in the tank).
6. Grind Setting

   Set the grind regulator to the required grind.
   • Turn the regulator anticlockwise towards to grind the coffee finer.
   • Turn the regulator clockwise towards to grind the coffee coarser.

     NOTE
     • Adjust the grind only while the machine is grinding the coffee beans otherwise the grinder may be damaged.
     • A fine grind is recommended for a light roast and a coarse grind for a dark roast. The roast is normally printed on the coffee packaging.
     • We recommend you turn the knob to the middle position (4 or 5 grade) as if the beans are ground too fine, it will affect the coffee flow speed.
7. Strenght Setting

   Press "STRENGTH CONTROL" to select coffee strength. There are 3 kinds of taste concentrations. the default setting is mild.
   mild
   medium
   strong

   TIPS
   When you had set the strong strength, but still tasted not strong enough. We suggest you to add less amount of water, and select for more powder.(e.g.select POWDER 2-10 Button for 4 cups, but add 2 cupsof water, the flavorwill be stronger).
8. Coffee Extraction

   Place the glass carafe on the warming plate.

   NOTE
   If you like flavored coffee we recommend buying liquid flavorings at your local coffee store. Add a few drops into the carafe before or after brewing.

   Press the ON/OFF Button to start and the Indicator will be illuminated. It will grind beans first, then get into heating. After that it begins to make coffee.
   During grinding beans, it is normal that the coffee beans will produce some noise because of the grinding component is crushing coffee beans. If the beans get stuck, tap the bean container and let the beans go down.

   NOTE
   If you want to add beans during operation, you can open the lid and add the beans, then close the lid. It's no need to stop the machine. As long as the grinder is in operation, do not open the bean container lid and do not insert your finger or any other object into the grinder.

   Begin to brew.

   TIPS
   Pause feature by pressing ON/OFF Button interrupts the flow of coffee from the basket to let you pour that first cup mid-brew. Be aware that using this feature will weaken the flavor strength of the finished pot, because the flavor profile of coffee brewed at the beginning of the cycle differs from coffee made at the end.

   The machine will stop making coffee when the water in the water tank is finished, and buzzer will sound 3 times to notice you. Unless you press the ON/OFF button after the coffee is made, the coffee will be kept warm After finishing keep warm, the machine will get into standby mode. If you want to cancel the warm function, long press ON/OFF Button 2 times to swift off the machine.


   NOTE
   Always make sure that the carafe is transported in an upright position. If you turn the carafe on its side or upside down with its lid closed, hot coffee may escape. When the water capacity of the coffee carafe is large, be sure to press the edge of the lid with your thumb and pour the water at the correct angle.
9. Enjoy your Coffee
   The coffee you get would less than the water you pour in as some water had been absorbed by coffee powder. For a better taste, please enjoy the coffee within 1 hour.

Operation-Make Coffee With Coffee Powder

1. Fill The Water Tank

   Puting your desired cup according to the Coffee Carafe mark, then open the water tank lid and pour in water. Never pour hot water, milk, coffee powder or tea into water tank.


   NOTE
   The coffee amount is referred to the Mark on the machine's water tank. The mark on the carafe is the same with the mark on the water tank. You can fill water according to the Mark to get the same cups of coffee. For example, if you want 8 cups of coffee, fill water to Mark 8 of the water tank.


   NOTE
   Please do not fill the water tank exceed 10 cup mark on water level Indicator. Doing so could cause carafe to overflow.
2. Insert coffee Filter


   Press lightly and vertically the O Filter Basket release button to open the swing-out filter.

   NOTE
   Please do not put the carafe on the warm plate before opening the door of the funnel container as it may cause damage to the open button.

   NOTE
   If the open button is stuck and the door of the funnel container cannot be closed, please press it harder vertically for several times to reset the button.

   Put the permanent filter into the filter insert.

   Put the funnel assembly(filter ring, permanent filter and filter insertl) into the funnel container. Make sure the tube of the funnel assembly aligns with groove of the funnel container.
3. Put Powder

   Add desired coffee powder into the filter and not exceed the max line.

   NOTE
   The amount of powder cup you choose should be the same as the amount of water you added, such as you added 2 cups of water and you should add 2 cups(2 scoops) of powder. If you pour more water than the number of cups you choose, it will cause the coffee to become weak (because the machine will brew all the water in the tank).

   Put filter ring into the funnel container.

   Close the funnel container firmly.
4. Start Up

   Insert the Power Plug. The machine switches on automatically.
5. Press GRIND OFF Button

   Press GRIND OFF Button and GRIND OFF Indicator stays fully illuminated when the grinding is canceled.
6. Strenght Setting

   Press "STRENGTH CONTROL" to select coffee strength. There are 3 kinds of taste concentrations. the default setting is
   mild
   mild medium
   strong

   TIPS
   When you had set the strong strength, but still tasted not strong enough. We suggest you to add less amount of water, and select for more powder.
7. Coffee Extraction

   Place the glass carafe on the warming plate.

   NOTE
   If you like flavored coffee we recommend buying liquid flavorings at your local coffee store. Add a few drops into the carafe before or after brewing.

   Press the ON/OFF Button to start and the Indicator will be illuminated. It will grind beans first, then get into heating. After that it begins to make coffee.

   Begin to brew.

   TIPS
   Pause feature by pressing ON/OFF Button interrupts the flow of coffee from the basket to let you pour that first cup mid-brew. Be aware that using this feature will weaken the flavor strength of the finished pot, because the flavor profile of coffee brewed at the beginning of the cycle differs from coffee made at the end.
8. Complete extraction

   The machine will stop making coffee when the water in the water tank is finished, and buzzer will sound 3 times to notice you. Unless you press the ON/OFF button after the coffee is made, the coffee will be kept warm After finishing keep warm, the machine will get into standby mode. If you want to cancel the warm function, long press ON/OFF Button 2 times to swift off the machine.
9. Enjoy your Coffee


NOTE
Always make sure that the carafe is transported in an upright position. If you turn the carafe on its side or upside down with its lid closed, hot coffee may escape. When the water capacity of the coffee carafe is large, be sure to press the edge of the lid with your thumb and pour the water at the correct angle.

The coffee you get would less than the water you pour in as some water had been absorbed by coffee powder. For a better taste, please enjoy the coffee within 1 hour.

Programmable Time Function

Programming the Time

• Insert the Power Plug. The machine switches on automatically.

• If you make coffee with coffee beans, please prepare refer to the "Operation- Make Coffee With Coffee Beans" above from step 2 to 7.
• Then press"HOUR" and"MIN" button to set current time. The time cycle is 24 hours. (For example, it is 8:00pm, set the time"20: 00". )

• Long press PROGRAM Button to get into programmable function. Set the time you want it to auto- matically start by pressing "HOUR" and "MIN" button. (For example, you want it start at 8: 00am tomorrow morning,set the time"8: 00".)


NOTE
If the machine had got into programmable function, please press the " HOUR" and "MIN" button as soon as possible to set the time, otherwise it will automatically exit the program in 5 seconds. You can long press the "HOUR" and "MIN" button to spend up the adjustment.

• Press PROGRAM Button again, the PROGRAM Indicator will be illumi- nated and the coffee maker gets into programmable mode.

• If you make coffee with coffee powder, please prepare refer to the "Operation- Make Coffee With Coffee Powder" above from step 2 to 7. Then press "HOUR"and"MIN" button to set current time. The time cycle is 24 hours. (For example, it is 8:00pm, set the time"20: 00". )

• Long press PROGRAM Button to get into programmable function. Set the time you want it to auto- matically start by pressing "HOUR" and "MIN" button. (For example, you want it start at 8: 00am tomorrow morning, set the time"8: 00".)


  NOTE
  If the machine had got into programmable function, please press the " HOUR" and "MIN" button as soon as possible to set the time, otherwise it will automatically exit the program in 5 seconds. You can long press the "HOUR" and "MIN" button to speed up the adjustment.
• Press PROGRAM Button again, the PROGARAM Indicator and GRIND OFF Indicator will be illuminated and the coffee maker gets into programmable mode.


• When it comes to the preset time, the buzzer will sound 2 times. Then it willstart automatically. If you want to cancel or edit the programmable function, press the PROGRAM Button.
• Then you can set the machine again. The coffee you get would less than the water you pour in as some water had been absorbed by coffee powder. For a better taste, please enjoy the coffee within 1 hour.


To change the Auto-On Time

• Push and hold the PROGRAM Button until the display shows the Auto-On time.
• Push and hold the HOUR and then the MIN button to set a new Auto- On time.
• Push the PROGRAM Button. The display reverts to the actual time and .


Checking the Auto-On Time

• Push and hold the PROGRAM Button until the display shows the Auto-On time.
• Push the PROGRAM Button. The display reverts to the actual time and .


Care & Cleaning-Brewer

After brewing

• Make sure that brewing has finished and the machine has cooled down.
• Press the Filter Basket Release Button on the side of the machine to open the funnel container.

• Remove the filter ring.

• Take out the filter insert together with the permanent filter or disposable coffee filter.
• Empty the coffee grounds out of the permanent filter into the household waste or throw the disposable coffee filter together with the coffee grounds into the household waste.(Clean after brewing. Do not let used coffee sit for hours in the filter. Coffee oils will clog the mesh, causing the coffee to overflow the next time youbrew coffee.)
• Rinse out the filter insert and permanent filter under flowing water, test that the drip stop closes completely under running water. (Do not use the brush to clean, it will damage the filter and the seal ring the of funnel).


• Allow the filter insert and permanent filter to dry before placing back into the machine.

Daily cleaning

Be sure to unplug this machine before cleaning and let the machine cool down completely. To protect against electrical shock, do not immerse cord, plug or unit in water or liquid.

• Press the Filter Basket Release Button on the side of the machine to open the funnel container.

• Remove the filter ring.


• Take out the filter insert together with the permanent filter or disposable coffee filter.
• Wash the filter insert and the perm- anent filter in warm water containing washing up liquid.

  TIPS
  The filter ring, permanent filter and filter insert as well as the Coffee Carafe can also be cleaned in the dishwasher.


• Wipe the funnel container with warm water containing washing up liquid.

• Empty the Coffee Carafe.
• Wash the Coffee Carafe in warm water containing washing up liquid.

• Wipe the Keeping warm plate with a damp cloth.

• Thoroughly dry all components before placing them back in the machine.

Descaling The Machine

• Decalcification refers to the removal of calcium deposits that form over time on the metal parts of your machine. The mineral content of the tap water in your area and the frequency of use affects the rate of the calcium buildup, which can affect the functioning of your machine and the flavor of your coffee. To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly according to the water quality in your area and the frequency of use.
• If the drinking water is very hard, you will need to descale the machine earlier. If the brewing time increases or the machine becomes noisier, this is a sure sign that the coffee machine needs to be descaled.
• All hot water machine need descaling depending on the water hardness and how often the machine is used. Warranty claims cannot be made for a machine that is not functioning due to a failure to descale it properly.

Descaling Solution
You have 3 options:

1. One machine descaling tablet. or
2. Liquid descaler. or
3. White vinegar & warm water.

You also can use powder descalers or others to clean your machine as you like. For specific cleaning methods, please refer to the instructions provided by your descaler provider.

Health risks by use of incorrect descaler! Only use food-safe descaler to clean the parts that come in contact with water and coffee.

Preparing for Descaling
Step 1 - Make sure there is no filter with coffee grounds in the machine and the Coffee Carafe is clean.

Step 2 - Remove the Coffee Carafe. Step3 - Fill the Coffee Carafe up to the "10"mark with cold tap water.

Step 4 - Fill the water tank with water and descaler to the 10 cup level (The rate of descaler and water is 1:100).

Health risks by use of incorrect cleaning agents! Only use foodsafe cleaning agents to clean the parts that come in contact with water and coffee.

Step 5 - Place the Coffee Carafe on the Keeping warm plate.

Step 6 - Insert the Power Plug into a 120V AC power outlet & switch the power on.

The machine switches on automatically.

Step 7 - Press GRIND OFF Button, the blue GRIND OFF Indicator will be illuminated that the grinder is switched off.

Step 8 - Press the ON/OFF Button once, the machine will start to brew directly.

• The ON/OFF Indicator will light up. The water/descaler solution will ready to run through the machine.

Step 9 - When the coffee carafe starts to dispense water and descaler, press the ON/OFF Button again to stop the coffee maker immediately, left the descaler deposit in it at least 15 minutes.

Step 10 - Press the ON/OFF Button again, the machine will brew directly.

• Wait until the machine beeps 3 times and the symbol goes out.
• Empty carafe to pour.

Step 11 - Repeat the Step 1-10 to remove the remains of the water/ descaler solution and fill the water tank with cold tap water.

Step 12 - When there is no descaler solution smell, press the ON/OFF Button to switch off.

Cleaning surfaces
Step 13 - Wipe heating plate with a clean, damp cloth. Never use rough, abrasive materials or cleansers to clean the heating plate. Do not dry the inside of the water tank with a cloth, as lint may remain.

In-Depth Descaling

• When you find that the cup of your choice and the amount of coffee brewed are much not enough, and the machine will automatically stop but there is still a lot of water left in the water tank, and if this phenomenon occurs repeatedly, it may be because the water quality is not good or the machine is not cleaned in time.
• The cause of this problem is that there is a build-up of limescale inside the heating tubes, which will result in a machine premature shut-down without brewing enough coffee. Actually for all kinds of coffee machines, accumulation of limescale is a common problem, it needs customers to remove limescale regularly because this will not only keep the machine clean, but also deliver better coffee tastes.

Preparing for Descaling

Step 1 - Make sure there is no filter with coffee grounds in the machine and the Coffee Carafe is clean.

Step 2 - Fill the water tank with 20 grams of descaler and 800ML of water. If you use other descaler, please add an appropriate amount of descaler, follow Descaling Solution.

Step 3 - Place the Coffee Carafe on the Keeping warm plate.

Step 4 - Insert the Power Plug into a 120V AC power outlet & switch the power on. The machine switches on automatically.

Step 5 - Press GRIND OFF Button, the blue GRIND OFF Indicator will be illuminated that the grinder is switched off.

Step 6 - Press the ON/OFF Button once, the machine will start to brew directly.

• The ON/OFF Indicator will light up. The entire water/vinegar solution runs through the machine.
• Wait until the machine beeps 3 times and the symbol goes out.

Step 7 - Empty carafe to pour.

Step 8 - Repeat the Step 1-7 at least 3 times to fill the water tank with 20 grams of descaler and 800ML of water. Then check if the machine can be brewed normally.

Step 9 - If the machine can be brewed, remove the remains of the water/ descaler solution. Repeat the Step 1-7 at least 3 times to fill the water tank with cold tap water.

Step 10 - Press the ON/OFF Button to switch off.
If the machine can't be brewed, start to operate the Step 1-4, and continue with the following steps:

Step 11 - Press GRIND OFF Button, the blue GRIND OFF Indicator will be illuminated that the grinder is switched off.

Step 12 - Press the ON/OFF Button once, the machine will start to brew directly.

• The ON/OFF Indicator will light up. The water/descaler solution will ready to run through the machine.

Step 13 - When the coffee carafe starts to dispense water and descaler, press the ON/OFF Button again to stop the coffee maker immediately, left the descaler deposit in it at least 3 days.

NOTE
the water in the water tank does not need to be poured out.

Step 14 - After 3 days, Insert the Power Plug into a 120V AC power outlet & switch the power on. The machine switches on automatically.

Step 15 - Press GRIND OFF Button, the blue GRIND OFF Indicator will be illuminated that the grinder is switched off.

Step 16 - Press the ON/OFF Button again, the machine will brew directly.

• Wait until the machine beeps 3 times and the symbol goes out.

Step 17 - Empty carafe to pour.

Step 18 - Repeat the Step 1-7 to remove the remains of the water/descaler solution and fill the water tank with cold tap water.
Then the machine can be brewed normally.

NOTE
If water is not running through, contact Gevi Customer Care.

Care & Cleaning-Grinder

• Bean Container

When the bean container is empty, use a dry cloth to wipe off any oil deposits. Never pour any liquid into the bean container. Never try to disassemble the bean container.

• The Grind Outlet
  Periodically check the Grind Outlet for oil and coffee build-up. The Grind Outlet should be cleaned in any of the following situations:
  • moisture or heavy oil build-up has caused the ground coffee to block the Grind
• Outlet, or
  • you do not plan on using the grinder for more than a week.
• For cleaning, please follow this sequence:
  • Press the Filter Basket Release Button on the side of the machine to open the funnel container.
  • Wipe the Grind Outlet with a dry cloth.

Troubleshooting Guide

Common Troubleshooting Guide

Problem	Cause	Way To Check	Remedy
The machine will not switch on.	The machine is not connected to the power supply.	Press the power button but it doesn't work, check if the plug is plugged in and if the plug is loose.	Plug the power plug into a socket outlet with earthing contact.
	No coffee powder is coming out from the grinder.	Can't hear the grinding sound.	The machine burr is stuck or the motor malfunctions, contact Gevi Customer Care.
No coffee coming out of the grinder.	It seems as though the coffee is completely clogged inside the grinder.	Can hear the grinding sound but no coffee powder comes out.	The Feeder Channel: Periodically check the feeder channel for oil and coffee build-up. As long as you can see coffee flowing freely through the feeder channel window there is no need to open the cover. The feeder channel should be cleaned in any of the following situations: moisture or heavy oil build-up has caused the ground coffee to block the feeder channel, or you do not plan on using the grinder for more than a week. For cleaning, please follow this sequence: Make sure the filter is inserted in the Filter Insert. With a pointed tip push the small pin in the window down and slide the plastic cover forward.
No coffee coming out of the grinder.	It seems as though the coffee is completely clogged inside the grinder.	Can hear the grinding sound but no coffee powder comes out.	Wipe the inside clean with a dry cloth. Replace the feeder channel cover.
Make a loud noise by the grinder.	Larger stones can block the burr grinder permanently. Note: Occasionally small stones can be found in between coffee beans. Very small stones will be processed through the burr grinder without any harm (the stone will end up in your filter - not in your brewed coffee).	Grinding sounds incorrect.	Push the On/Off Button to stop grinding and here is how you can avoid stones entering the bean container:
			Shake your bean bag thoroughly so that a stone will fall to the bottom of the bag.
			Before emptying the bottom half of the bag of beans into the bean container, check to see whether there are any particles that look like stones, and remove them.
Can't grind beans.	The blade is blocked or worn.	Grinding is activated but no grinding sound is heard.	Open the bean box to check and take out the foreign objects.
			Use a fine needle to clean the coffee powder on the knife.
			Adjust the intensity of the grinding beans to the maximum to allow the cleaned coffee powder to fall off.
			BEFORE THE CLEAN SHOULD DISCONNECT THE POWER.
Can't grind beans.	The blade is blocked or worn.	Grinding is activated but no grinding sound is heard.	Please contact with the authorized service facility for repair.
Powder can't go down the channel.	The powder outlet is blocked.	E1 warning appears on the screen.	Clean the powder outlet with a brush when the power is off.
Coffee overflow.	Overfill coffee powder.	Open the filter basket to check if there is spillage of ground coffee.	7g powder for 1-cup coffee recommended. Do not exceed 70g.
	Use filter paper and filter at the same time.	Open the filter basket to check if both filter paper and filter are used.	Use either filter paper or filter (the two cannot be used at the same time)
	Misplacement of carafe.	Check the coffee carafe if it is placed on the warming plate.	Fully insert to contact the bottom of the valve. Do not open the carafe lid.
	Carafe is taken away for more than 30s during the brewing process.	Check if the coffee carafe has been removed from the machine for more than 30 seconds while brewing.	The carafe should not be taken away for more than 30 seconds during the brewing process.
	The filter basket is not closed.	Check if the filter basket is closed properly.	Close the filter basket firmly.
No water from the coffee machine.	Coffee Carafe not placed correctly under outlet.	Check that the Coffee Carafe is placed correctly on the hotplate.	Check that the Coffee Carafe is placed correctly on the hotplate and that is presses up the valve in the outlet.
No water from the coffee machine.	The pipe is blocked by scale.	No coffee or water flowing to the coffee carafe.	There is a build-up of limescale inside the heating tubes, which will result in a machine premature shut-down without brewing enough coffee, it needs customers to remove limescale regularly because this will not only keep the machine clean, but also deliver better coffee tastes. To descale and more details refer to "Descaling The Machine" and "In- Depth Cleaning".
	The drip stop has been removed from the filter basket.	Open the filter basket to check if the drip stop is properly installed.	Contact Gevi Customer Care.
Coffee is too watery.	Grind set too coarse.	The coffee is light in color or tastes weak.	Set the grind finer.
	Too little ground coffee.		Add a little more beans, refer to "Operation Tips"
	Too much water was added.		Add a proper amount of water for brewing, if you choose 2 cups of powder and you should add 2 cups of water, otherwise the machine will finish boiling all the water in water tank, which would cause a weak coffee.
Keeping warm plate is not working.	Unplugging the socket or pressing the ON/ OFF Button will not automatically heat preservation.	Move your hand near the warming plate and check if you feel the heat.	The heating plate will automatically keep warm for 2 hours after brewing, and then please go to the place where it can keep warm.
All display Indicators flash.	The machine must be descaled.	All display Indicators flash.	Carry out descaling.
Does not keep the grinding and brewing settings.	The machine loses power.	Press the power button but it doesn't work, check if the plug is plugged in and if the plug is loose.	If the machine loses power you have to reset the time and personal settings. As long as the machine is plugged in, the machine keep the grinding and brewing settings
Error codes E01 / E14	Problem with the grinder.	E1/E4 warning appears on the screen.	See the detailed description below: "Detail Troubleshooting Guide"
Error codes E12 / E13	PCB fault	E12/E3 warning appears on the screen.	See the detailed description below: "Detail Troubleshooting Guide"

Frequently Asked Questions

Technical Questions

Q1. There is no coffee coming out of the grinder. It seems as though the coffee is completely clogged inside the grinder. What do I do?
A. Please follow the steps outlined in "Operation-Make Coffee With Coffee Beans".

Q2. Can the grinder run without beans in the bean container?
A. Yes.

Q3. Can I have different grind amount settings for the current and the progr- ammed mode?
A. Yes, Press PROGRAM Button again to cancel programmable mode, press the POWDER 2-10 Button to change grind amount you need.

Q4. How long does the machine keep the grinding and brewing settings?
A. As long as the machine is plugged in. If the machine loses power you have to reset the time and personal settings (see "Programmable Timer Function").

Q5. How do I know if the display shows the current or the programmed setting?
A. The display always shows the current setting. To view the programmed setting push and hold the PROGRAM Button. The display will show"AUTO" and all settings for the Auto-On function.

Q6. Beans spilled into the water container. What do I do?
A. Unplug the machine, remove the carafe, empty the bean container (as well as you can), remove the filter holder insert and filter, open the water container lid and turn the machine upside down over a sink. After replacing all parts, reset the time and program the machine again.

Coffee Questions

Q1. How much coffee should I use?
A. The grinder grinds approximately between 7 seconds (setting "2, mild" ) and 40 seconds (setting "10, strong" ).

Q2. I want a full pot of coffee at 8:00 AM. What time should I program the grinder to start?
A. Set the timer 15 minutes earlier (in this case at 7:45 AM).

Q3. The grinder makes a loud noise? No coffee is processed.
A. A stone blocks the grinder.
