Owner's Manual
Thank you for purchasing the PERSONAL MONITOR PM-10.
Before using this unit, carefully read the sections entitled: "USING THE UNIT
SAFELY" and "IMPORTANT NOTES" (OWNER'S MANUAL pp. 3–5). These
sections provide important information concerning the proper operation of the
unit. Additionally, in order to feel assured that you have gained a good grasp of
every feature provided by your new unit, Owner's manual should be read in its
entirety. The manual should be saved and kept on hand as a convenient
reference.201b

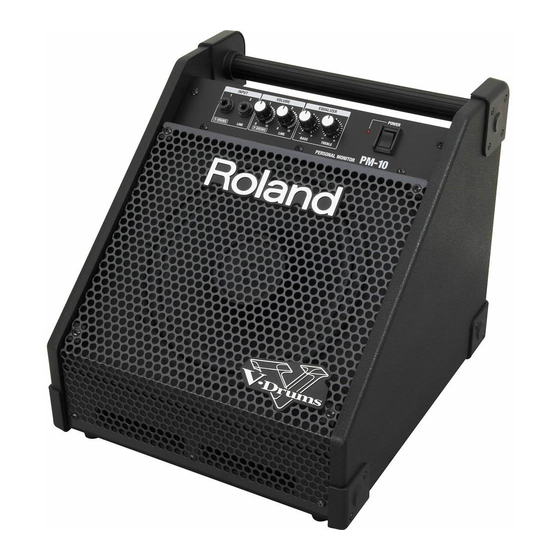

● Dedicated V-Drums Personal Monitor
The PM-10 is a powered monitor specially matched to Roland's "V-Drums"
percussion sound modules.
Equipped with a dedicated V-DRUMS input, this monitor brings out all of the
"V-Drums" sound.
● Powerful Sound
Although compact, the unit's 2-way, 10" coaxial speaker puts out powerful sound.
● Multifunctional Inputs
The PM-10 not only features a percussion sound module input jack, but also includes
a LINE input, allowing you to connect a CD or MD player or other such device.
● Portability
The monitor features a bar-type handle to make carrying easier.
Copyright © 2005 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without
the written permission of ROLAND
CORPORATION.202

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roland PM-10

Summary of Contents for Roland PM-10

  • Page 1 Although compact, the unit’s 2-way, 10” coaxial speaker puts out powerful sound. ● Multifunctional Inputs The PM-10 not only features a percussion sound module input jack, but also includes a LINE input, allowing you to connect a CD or MD player or other such device.

  • Page 2: Instructions Pertaining To A Risk Of Fire, Electric Shock, Or Injury To Persons

    WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION : RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3 (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page. • Never use or store the unit in places that are: •...
  • Page 4 • Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page. • Do not put anything that contains water (e.g., flower...

  • Page 5: Important Notes

    (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials. • Use a cable from Roland to make the connection. If using some other make of connection cable, please note the following precautions.

  • Page 6: Panel Descriptions

    * The input sensitivity of the PM-10 has been set somewhat high, to allow use with percussion sound modules having relatively low output levels. But if you connect a sound module with a high output level (such as the TD series), distortion may occur if you turn the volume level up too much.

  • Page 7: Turning On The Power

    Turning On the Power Make sure that all volume controls on the PM-10 and connected devices are set to “0.” Turn on the devices connected to the V-DRUMS Input Jack and LINE Input Jack.

  • Page 8: Important Notes On Placement

    Important Notes on Placement • When this unit is in operation, the top side will become hot. Take care not to touch it. • Do not put anything on the unit. • Do not place the monitor on its side or upside down. •...
