Owner's Manual
Thank you for purchasing the PERSONAL DRUM MONITOR PM-01.
201b
Before using this unit, carefully read the sections entitled:
"IMPORTANT SAFETY INSTRUCTIONS" (p. 2), "USING THE UNIT
SAFELY" (p. 3), and "IMPORTANT NOTES" (p. 5). These sections
provide important information concerning the proper operation of
the unit. Additionally, in order to feel assured that you have gained
a good grasp of every feature provided by your new unit, Owner's
manual should be read in its entirety. The manual should be saved
and kept on hand as a convenient reference.

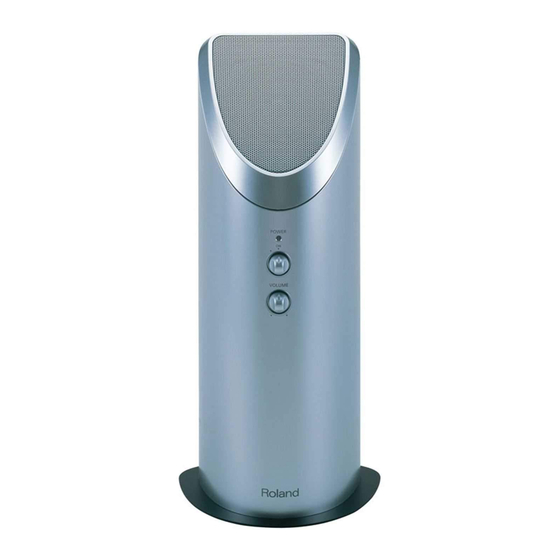

The PM-01 is a slim and compact powered monitor that matches the
design of the Roland HD-1 V-Drums.
202
Copyright © 2007 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in
any form without the written permission of ROLAND CORPORATION.

Advertisement

Table of Contents
loading

Related Manuals for Roland PM-01

Summary of Contents for Roland PM-01

  • Page 1 The PM-01 is a slim and compact powered monitor that matches the design of the Roland HD-1 V-Drums. Copyright © 2007 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

  • Page 2: Instructions Pertaining To A Risk Of Fire, Electric Shock, Or Injury To Persons

    IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The lightning flash with arrowhead symbol, within an CAUTION equilateral triangle, is intended to alert the user to the RISK OF ELECTRIC SHOCK presence of uninsulated “dangerous voltage”...
  • Page 3 Refer all cord. Also, the supplied power cord servicing to your retailer, the nearest must not be used with any other Roland Service Center, or an autho- device. rized Roland distributor, as listed on ....................
  • Page 4 • Before using the unit in a foreign audiologist. country, consult with your retailer, the ....................nearest Roland Service Center, or an authorized Roland distributor, as • Do not allow any objects (e.g., listed on the “Information” page. flammable material, coins, pins); or ....................

  • Page 5: Important Notes

    110a • Try to prevent cords and cables from • Whenever you suspect the possibility becoming entangled. Also, all cords of lightning in your area, pull the plug and cables should be placed so they on the power cord out of the outlet. are out of the reach of children.

  • Page 6: Maintenance

    Placement Maintenance 401a • Using the unit near power amplifiers (or other • For everyday cleaning wipe the unit with a equipment containing large power trans- soft, dry cloth or one that has been slightly formers) may induce hum. To alleviate the dampened with water.

  • Page 7: Panel Descriptions

    Connect the percussion sound module to this jack. * Use the cable included with the PM-01 to connect it to the Roland HD-1 V-Drums. * If you connect a sound module with a high output level (such as the TD series), distortion may occur if you turn the volume level up too much.
  • Page 8 Connections/Turning On the Power Connections fig.Panel2.eps Rear To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections. 926a When connection cables with resistors are used, the volume level of equipment connected to the input (LINE IN) may...

  • Page 9: Important Notes On Placement

    Do not place the monitor on its side or upside down. Please also refer to Placement in IMPORTANT NOTES. (p. 6) Example Setup If you’re connecting the PM-01 to the Roland HD-1 V-Drums, set up your equipment as shown at right. Specifications Rated Power Output Power Supply...
  • Page 10 For EU Countries This product complies with the requirements of European Directives EMC 89/336/EEC and LVD 73/23/EEC. For EU Countries...

  • Page 11: Australia/New Zealand
