O
'
WNER
S
U
C
SE AND
ARE

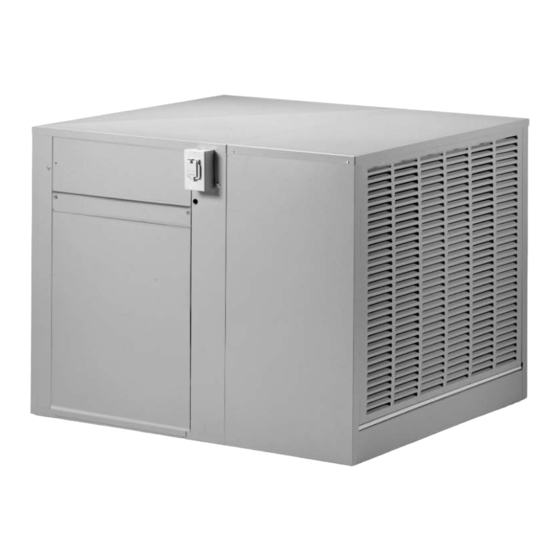

ECOKOOL SERIES VARIABLE
SPEED MOTOR
MAKE-UP AIR COOLER
: PVDM6803 & PVHM6803
MODELS
Safety
Operation
Installation
Maintenance
Start-up
Trouble Shooting
Congratulations: You have purchased a product of superior performance and design, which will give the best service when properly installed, operated
and maintained.
This guide will provide you with information needed to mount, operate, inspect, maintain, and troubleshoot your evaporative air cooler.
The first section, Installation and Start-Up, gives details for installation. The second section, Maintenance, contains operational and maintenance
instructions , while Troubleshooting includes information on commonly encountered problems.
INSTALLER: Please deliver this guide to owner.
!
WARNING -
TO REDUCE THE RISK OF FIRE, ELECTRIC
READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS.
Read all instructions carefully before installation.
Use only the blower motor and circulating pump(s)
combinations marked on the Model Nameplate indicating
suitability for use in this model. Any other motors or pumps
cannot be substituted.
Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes
and standards, including fire rated construction.
When cutting or drilling into a wall or ceiling, do not
damage electrical wiring or other concealed utilities (water
or gas lines, sewer lines, etc.).
Cooler motor, pump, cabinet and junction box must be
grounded in accordance with all local and national codes.
A ground wire must be used between the power supply
and the cooler.
Be sure that the cooler is connected to proper line voltage
stamped on the pump and blower (fan) motor specification
plate. NOTE: Improper voltage will void the pump and/or
motor warranties and may cause serious personal injury
or property damage.
Do not operate this blower (fan) motor with any solid-state
speed control device.
G
UIDE
M
ANUAL
SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING.
Always disconnect electrical power to unit before working
on or servicing cooler. More than one disconnect switch
may be required to de-energize the equipment for
servicing.
Do not remove access panels while cooler is running, this
may cause the blower (fan) motor to overload and damage
the motor windings.
NOTE:
Do not locate unit near exhaust or vent pipes as odors or
fumes may be drawn into cooler.
Use of anode devices, chemical additives or treatments in this
cooler will void the warranty.
Your warranty does not cover shipping damage. Report all
shipping damage at once to dealer or carrier making the
delivery.
For future reference, record the model and serial numbers,
date and place of purchase of your evaporative cooler here:
Model #
Serial #
Date of Purchase:
Place of Purchase:
01-999-2602 REV A 12/2020
Advertisement
Related Manuals for PHOENIX MANUFACTURING EcoKool PVDM6803
Summary of Contents for PHOENIX MANUFACTURING EcoKool PVDM6803
- Page 1 ’ WNER UIDE SE AND ANUAL ECOKOOL SERIES VARIABLE SPEED MOTOR MAKE-UP AIR COOLER : PVDM6803 & PVHM6803 MODELS Safety Operation Installation Maintenance Start-up Trouble Shooting Congratulations: You have purchased a product of superior performance and design, which will give the best service when properly installed, operated and maintained.
-
Page 2: Duct System
INTRODUCTION Location Your cooler may be a down (PVDM) or horizontal (PVHM) discharge Your Pro-series evaporative air cooler was thoroughly tested and model. Down discharge coolers are designed for installation on inspected before leaving the factory. This manual is your guide to either flat or pitched roofs (see Fig. -
Page 3: Electrical Installation
INSTALLATION Connect Power Supply CAUTION: All electrical installations must comply with local CAUTION: The external power supply to the unit must be and national building & safety codes; all work must be performed adequately grounded and protected against overloads and short by qualified personnel only. -
Page 4: Connect Water Supply
Belt Tension Adjustment Adjust Motor Pulley CAUTION: Disconnect all electrical power to the cooler and When the cooler is connected to extended ductwork, the cooler capacity insure that belt is not rotating before adjusting belt tension. Do and motor amperage may decrease due to the increased duct resistance. The adjustable motor pulley is to be used ONLY to return the cooler motor not adjust belt tension by changing diameter of motor pulley. -
Page 5: Maintenance Schedule
Cleaning Water Pump & Hose MAINTENANCE SCHEDULE CAUTION: Disconnect all electrical power to the cooler Regular maintenance and periodic inspection is the key to long and before attempting to install, open, or service your cooler. If successful service from your Pro-series cooler. The cooler should the cooler is thermostatically controlled, the thermostat is receive major servicing at least once a year, more often if conditions not to be used as the power supply disconnect, as it may... -
Page 6: Replacement Parts
Changing Cooler Pads 4. Reinstall pads, making sure they are positioned correctly (painted stripe on pad placed to the bottom, facing outside). CAUTION: Disconnect all electrical power to the cooler before 5. Reinstall water distributor cover and tube assembly, top pan and attempting to install, open, or service your cooler.
