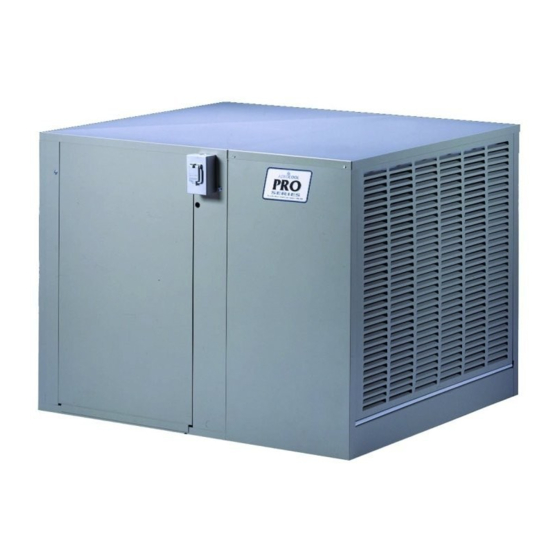

PHOENIX MANUFACTURING Aerocool PD4803 Owner's Manual

O ' G
WNER S UIDE
U C M
SE AND ARE
DUCTED COOLER MODELS:
PD4803 PD6803
PH4803 PH6803
Safety
Installation
Start-up
Congratulations: You have purchased a product of superior performance and design, which will give the best service when properly installed, operated
and maintained.
This guide will provide you with information needed to mount, operate, inspect, maintain, and troubleshoot your evaporative air cooler.
The first section, Installation and Start-Up, gives details for installation. The second section, Maintenance, contains operational and maintenance
instructions , while Troubleshooting includes information on commonly encountered problems.
INSTALLER: Please deliver this guide to owner.
!
WARNING -
TO REDUCE THE RISK OF FIRE, ELECTRIC
READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS.
Read all instructions carefully before installation.
Use only the blower motor and circulating pump(s)
combinations marked on the Model Nameplate indicating
suitability for use in this model. Any other motors or pumps
cannot be substituted.
Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes
and standards, including fire rated construction.
When cutting or drilling into a wall or ceiling, do not
damage electrical wiring or other concealed utilities (water
or gas lines, sewer lines, etc.).
Cooler motor, pump, cabinet and junction box must be
grounded in accordance with all local and national codes.
A ground wire must be used between the power supply
and the cooler.
Be sure that the cooler is connected to proper line voltage
stamped on the pump and blower (fan) motor specification
plate. NOTE: Improper voltage will void the pump and/or
motor warranties and may cause serious personal injury
or property damage.
Do not operate this blower (fan) motor with any solid-state
speed control device.
ANUAL
Operation
Maintenance
Trouble Shooting
SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING.
Always disconnect electrical power to unit before working
on or servicing cooler. More than one disconnect switch
may be required to de-energize the equipment for
servicing.
Do not remove access panels while cooler is running, this
may cause the blower (fan) motor to overload and damage
the motor windings.
NOTE:
Do not locate unit near exhaust or vent pipes as odors or
fumes may be drawn into cooler.
Use of anode devices, chemical additives or treatments in this
cooler will void the warranty.
Your warranty does not cover shipping damage. Report all
shipping damage at once to dealer or carrier making the
delivery.
For future reference, record the model and serial numbers,
date and place of purchase of your evaporative cooler here:
Model #
Serial #
Date of Purchase:
Place of Purchase:
Date: 7/19
1-999-2614
