Chamberlain KI A6426-1 Quick Start Manual

INSTALLATION
NOTE: Replacing the control board will require the limits and all the
remote controls to be programmed.
1. Disconnect all power and batteries to the gate operator.
2. Remove screws and open the control box.
3. Disconnect coaxial connector and all terminal blocks from the
control board.
NOTE: For installation of new control board, be sure to note the
locations of all terminal block connections.
4. Disconnect battery connectors.
5. Loosen mounting screws. Slide the mounting bracket with control
board up and remove. Set aside for reinstallation.
6. Copy all settings from the existing control board to new control
board (Force and Timer to Close).
7. Install new control board and bracket, secure with mounting
screws.
8. Reconnect all terminal blocks and coaxial cable.
9. Reconnect battery connectors. Verify the DIAGNOSTIC LED blinks.
10. Reconnect power to operator.
11. Reinstall control box cover and secure with screws.
12. Learn the limits for the gate operator (refer to detailed instructions
on next page). Program all remote controls.
13. Test the force adjustment.
14. Verify all other inputs and outputs as necessary (safety sensors,
edges, loops, locks, alarm, reset, accessory power, open and single
button).
Terminals
blocks
ALARM
LOCK
Battery
GATE 1
connector
F8
ACCESSORY
POWER
GATE 2
Coaxial connector
R182
C1Ø1 C66 C65 CLOSE
EDGE
D36
ACCESSORY
0VLD
L1 OPEN EDGE/
SOL PHOTO
L1
GND
MAGR
U4
D42 ON OFF C75
LEARN LOCK /
Z1
R2 XMITTER OPEN
BIPART DELAY PHOTO
R91
R1
C7Ø
D1Ø R94
BR C71
C72
GR
C73
WH CLOSE
DIAGNOSTIC
R93 PHOTO
YL
R93
BL GATE 1
RD
SET SET
LEARN
OPEN CLOSE
LIMITS
LIMIT LIMIT
Z12
TIMER
GATE 2 CTRL PWR
RUNNING
SINGLE BUTTON OVLD
TIMER TO CONTROL
24V
R9Ø FORCE CLOSE INPUTS
OPEN
BR R1ØØ R1Ø1
SINGLE BUTTON
GR
RESET
WH
STOP
OFF MAX OFF MAX
YL
COM
BL D44 COM
RD R184
F7
Z4
LOOP
Q22 INPUTS
D2 C13
SHADOW
D129
R196 INTERRUPT
CHGR
CTRL PWR
R42Ø OVLD
R423
F1 F3 AC PWR
/SOLAR
K6
JU2
U2 R22
DB1

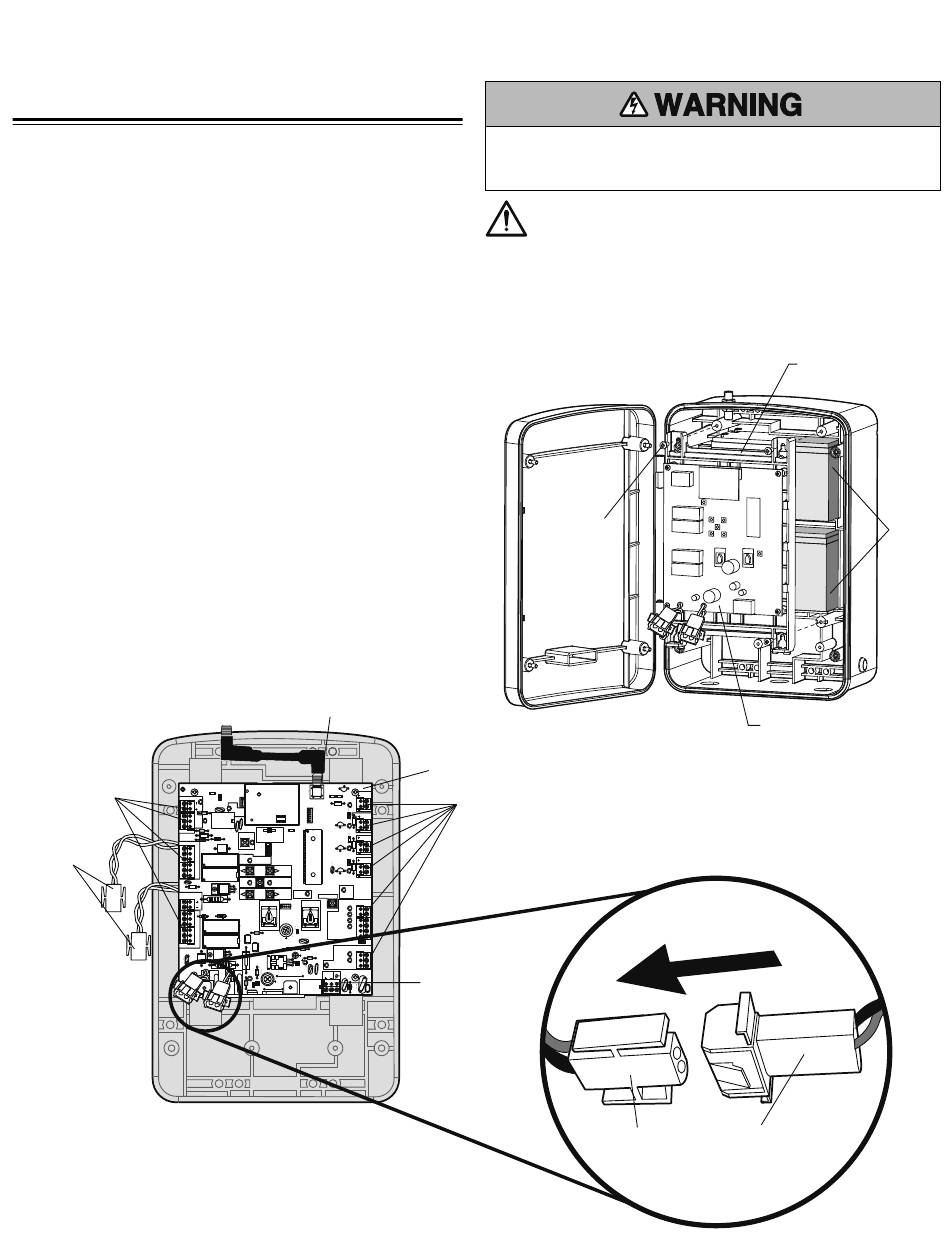

CONTROL BOARD REPLACEMENT KIT
To avoid SERIOUS PERSONAL INJURY or DEATH from a moving gate,
disconnect ALL electric and battery power BEFORE performing ANY
service or maintenance.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer
or birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov
Mounting
screws
Control board
Terminals
blocks
AC PWR/
solar PWR input
1
Control board
Battery
Battery
connector
connector
from control board
from battery
K1A6426-1
Mounting
bracket
Batteries
