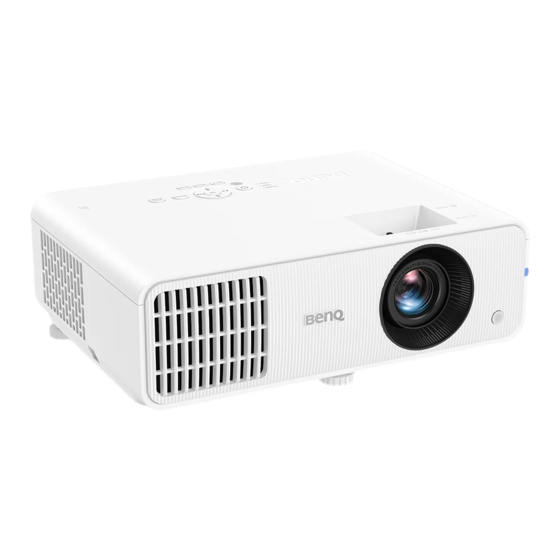

LW550
Projector RS232 Command Control
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LW550 and is the answer not in the manual?

Questions and answers

Summary of Contents for BenQ LW550

  • Page 1 LW550 Projector RS232 Command Control Installation Guide...
  • Page 2: Table Of Contents

    Table of Contents Introduction ....................................3 Wire arrangement ..............................3 RS232 pin assignment.............................. 3 Connections and communication settings ....................... 4 RS232 serial port with a crossover cable ....................4 Settings ..................................4 RS232 via LAN................................... 7 Settings ..................................7 RS232 via HDBaseT ..............................8 Settings ..................................
  • Page 3: Introduction

    Introduction The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands. Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.
  • Page 4: Connections And Communication Settings

    Connections and communication settings Choose one of the connections and set up properly before RS232 control. RS232 serial port with a crossover cable D-Sub 9 pin (male) on a projector PC or laptop D-Sub 9 pin (female) Communication cable (crossover) Settings On-screen images in this document are for reference only.
  • Page 5 Determine the COM Port name used for the RS232 communications in Device Manager. Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected.
  • Page 6 Finish Serial port setup. Baud rate 115200 bps (default) Changeable settings in User OSD (9600/14400/19200/38400/57600/115200) Data length 8 bit Parity check None Stop bit 1 bit Flow control None...
  • Page 7: Rs232 Via Lan

    RS232 via LAN RJ45 port on a projector PC or laptop LAN cable Settings Find the Wired LAN IP address of the connected projector from the OSD menu and make sure the projector and the computer are within the same network. Input 8000 in the TCP port # field.
  • Page 8: Rs232 Via Hdbaset

    RS232 via HDBaseT HDBaseT compatible device RJ45 port on a projector D-Sub 9 pin RJ45 PC or laptop D-Sub 9 pin LAN cable Settings Determine the COM Port name used for the RS232 communications in Device Manager. Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected.
  • Page 9 Finish Serial port setup. Baud rate 115200 bps (default) Changeable settings in User OSD (9600/14400/19200/38400/57600/115200) Data length 8 bit Parity check None Stop bit 1 bit Flow control None...
  • Page 10: Command Table

    Command table • Available features differ by projector specification, input sources, settings, etc.. • Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set. • Uppercase, lowercase, and a mixture of both types of characters are accepted for a command. •...
  • Page 11 Write Volume + <CR>*vol=+#<CR> Write Volume - <CR>*vol=-#<CR> Write Volume level for customer <CR>*vol=value#<CR> Read Volume Status <CR>*vol=?#<CR> Write Mic. Volume + <CR>*micvol=+#<CR> Write Mic. Volume - <CR>*micvol=-#<CR> Read Mic. Volume Status <CR>*micvol=?#<CR> Write Audio pass Through off <CR>*audiosour=off#<CR> Write Audio-Computer1 <CR>*audiosour=RGB#<CR>...
  • Page 12 Write User1 <CR>*appmod=user1#<CR> Write User2 <CR>*appmod=user2#<CR> Write User3 <CR>*appmod=user3#<CR> Write ISF Day <CR>*appmod=isfday#<CR> Write ISF Night <CR>*appmod=isfnight#<CR> Write <CR>*appmod=threed#<CR> Read Picture Mode <CR>*appmod=?#<CR> Write Contrast + <CR>*con=+#<CR> Write Contrast - <CR>*con=-#<CR> Write Set Contrast value <CR>*con=value#<CR> Read Contrast value <CR>*con=?#<CR> Write Brightness + <CR>*bri=+#<CR>...
  • Page 13 Write Aspect 16:6 <CR>*asp=16:6#<CR> Write Aspect 16:9 <CR>*asp=16:9#<CR> Write Aspect 16:10 <CR>*asp=16:10#<CR> Write Aspect 2.4:1 <CR>*asp=2.4:1#<CR> Write Aspect Auto <CR>*asp=AUTO#<CR> Write Aspect Real <CR>*asp=REAL#<CR> Write Aspect Letterbox <CR>*asp=LBOX#<CR> Write Aspect Wide <CR>*asp=WIDE#<CR> Write Aspect Anamorphic <CR>*asp=ANAM#<CR> Write Aspect Anamorphic 2.35 <CR>*asp=ANAM2.35#<CR>...
  • Page 14 Read 4 Corners Top-Right-X <CR>*cornerfittrx=?#<CR> Status Write 4 Corners Top-Right-Y <CR>*cornerfittry=-#<CR> Decrease Write 4 Corners Top-Right-Y <CR>*cornerfittry=+#<CR> Increase Read 4 Corners Top-Right-Y <CR>*cornerfittry=?#<CR> Status Write 4 Corners Bottom-Left-X <CR>*cornerfitblx=-#<CR> Decrease Write 4 Corners Bottom-Left-X <CR>*cornerfitblx=+#<CR> Increase Read 4 Corners Bottom-Left-X <CR>*cornerfitblx=?#<CR>...
  • Page 15 Write Reset picture settings <CR>*rstpicsetting#<CR> Write Projector Position-Front <CR>*pp=FT#<CR> Table Write Projector Position-Rear <CR>*pp=RE#<CR> Table Write Projector Position-Rear <CR>*pp=RC#<CR> Ceiling Write Projector Position-Front <CR>*pp=FC#<CR> Ceiling Read Projector Position Status <CR>*pp=?#<CR> Write Quick cooling on <CR>*qcool=on#<CR> Write Quick cooling off <CR>*qcool=off#<CR> Read Quick cooling status <CR>*qcool=?#<CR>...
  • Page 16 Settings-Microphone on Write Standby <CR>*standbymic=off#<CR> Settings-Microphone off Read Standby <CR>*standbymic=?#<CR> Settings-Microphone Status Write Standby Settings-Monitor <CR>*standbymnt=on#<CR> Out on Write Standby Settings-Monitor <CR>*standbymnt=off#<CR> Out off Read Standby Settings-Monitor <CR>*standbymnt=?#<CR> Out Status Write 2400 <CR>*baud=2400#<CR> Write 4800 <CR>*baud=4800#<CR> Write 9600 <CR>*baud=9600#<CR> Write 14400 <CR>*baud=14400#<CR>...
  • Page 17 Write Single Alternative Eco <CR>* lampm =singleeco#<CR> Read Lamp Mode Status <CR>*lampm=?#<CR> Read Model Name <CR>*modelname=?#<CR> Read System F/W Version <CR>*sysfwversion=?#<CR> Read Scaler F/W Version <CR>*scalerfwversion=?#<CR> Read Lan F/W Version <CR>*lanfwversion=?#<CR> Read MCU F/W Version <CR>*mcufwversion=?#<CR> Read Ballast F/W Version <CR>*ballastfwversion=?#<CR>...
  • Page 18 Write Remote Receiver Off <CR>*rr=off#<CR> Write Remote <CR>*rr=fr#<CR> Receiver-front+rear Write Remote Receiver-front <CR>*rr=f#<CR> Write Remote Receiver-rear <CR>*rr=r#<CR> Write Remote Receiver-top <CR>*rr=t#<CR> Write Remote Receiver-top+front <CR>*rr=tf#<CR> Write Remote Receiver-top+rear <CR>*rr=tr#<CR> Read Remote Receiver Status <CR>*rr=?#<CR> Write Instant On-on <CR>*ins=on#<CR> Write Instant On-off <CR>*ins=off#<CR>...
  • Page 19: Faq Video

    (2) How to use RS232 cable connection to power on & off projector? https://youtu.be/faGUvcDBmJE (3) How to set up RS232 cable connection? https://youtu.be/CYJRqyO6K1w (4) How to use RS232 command to request fan speed and temperature value? https://youtu.be/KBXEd-BCDKQ BenQ.com © 2023 BenQ Corporation All rights reserved. Rights of modification reserved. Version: 1.01-C...
