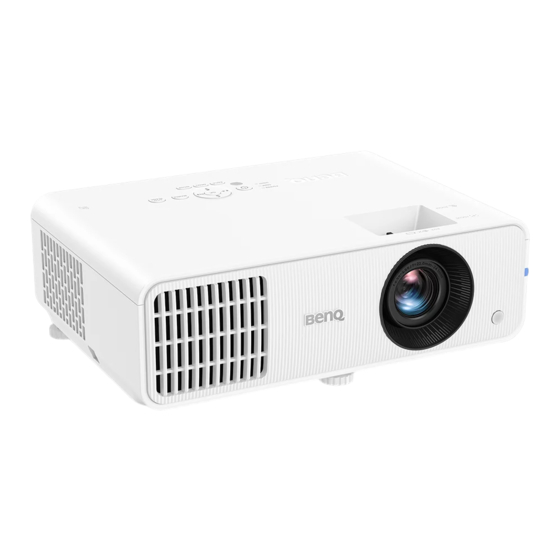

BenQ LW550 User Manual
  1. Manuals
  2. Brands
  3. BenQ Manuals
  4. Projector
  5. LW550
  6. User manual

BenQ LW550 User Manual

Hide thumbs Also See for LW550:
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Projector
User Manual
LW550 / LH550
V 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LW550 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ LW550

Summary of Contents for BenQ LW550

  • Page 1 Digital Projector User Manual LW550 / LH550 V 1.00...

  • Page 2: Warranty And Copyright Information

    For other information, please visit www.BenQ.com. Copyright Copyright © 2023 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

  • Page 3: Table Of Contents

    Table of Contents Warranty and Copyright information ................2 Important safety instructions ..................4 Introduction ........................7 Shipping contents ......................7 Projector exterior view ...................... 8 Controls and functions ..................... 9 Positioning your projector .................... 12 Choosing a location ......................12 Obtaining a preferred projected image size..............13 Mounting the projector ....................

  • Page 4: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. 1.
  • Page 5 9. Do not place this product on an unstable 12. Always place the projector on a level, cart, stand, or table. The product may fall, horizontal surface during operation. sustaining serious damage. - Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back.
  • Page 6 50 cm clearance from walls and free flow of air around the projector. supply's power outlet and call BenQ to - Locations where temperatures may become have the projector serviced. excessively high, such as the inside of a car with all windows rolled up.

  • Page 7: Introduction

    Introduction Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories Remote control with Projector Power cord batteries Quick start guide Warranty card* Regulatory statements •...

  • Page 8: Projector Exterior View

    Projector exterior view 1. Vent (air exhaust) 8. Audio output jack 2. Focus ring and Zoom ring 9. HDMI 1 input port 3. Vent (air inlet) 10. HDMI 2 input port 4. Projection lens 11. USB Type A port with power charging 5.

  • Page 9: Controls And Functions

    Controls and functions Projector & Remote control All the key presses described in this document are available on the remote control or projector. 5. Arrow keys ( , POWER When the On-Screen Display (OSD) menu Toggles the projector between standby is activated, these keys are used as mode and on.
  • Page 10 6. SOURCE 14. SMART ECO Displays the source selection bar. Displays the Light Mode menu for selecting a suitable light source operating 7. ECO BLANK mode. Used to hide the screen picture. 15. FREEZE Do not block the projection lens Freezes the projected image.
  • Page 11 Remote control effective range The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor(s) to function correctly. The distance between the remote control and the sensor(s) should not exceed 8 meters (~ 26 feet). Make sure that there are no obstacles between the remote control and the IR sensor(s) on the projector that might obstruct the infra-red beam.

  • Page 12: Positioning Your Projector

    Purchase the BenQ Projector Ceiling/Wall screen. Note that a special rear projection Mount Kit from your dealer to mount your screen and the BenQ Projector Ceiling/Wall projector. Mount Kit are required for this installation location.

  • Page 13: Obtaining A Preferred Projected Image Size

    • The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio 16:10 Screen diagonal Screen Center of lens Offset Projection distance LW550 Screen size Projection distance (mm) Diagonal Min distance Max distance Offset (mm)
  • Page 14 All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 15: Mounting The Projector

    BenQ projector mounting kit and that you ensure it is securely and safely installed. If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall down due to an improper attachment through the use of the wrong gauge or length screws.

  • Page 16: Adjusting The Projected Image

    Adjusting the projected image Adjusting the projection angle If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. You can screw the adjuster feet to fine-tune the horizontal angle. To retract the feet, screw the adjuster feet in a reverse direction.
  • Page 17 2. After the 2D Keystone correction page displays. To correct keystoning at the top of the image, use . To correct keystoning at the bottom of the image, use . To correct keystoning at the right side of the image, use .

  • Page 18: Connection

    Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Ensure the cables are firmly inserted. A/V device Audio cable HDMI cable Speakers Notebook or...
  • Page 19 Connecting audio The projector has built-in mono speaker(s) which are designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications.

  • Page 20: Operation

    Operation Starting up the projector 1. Plug the power cord. Turn on the power outlet switch (where fitted). The power indicator on the projector lights orange after power has been applied. 2. Press on the projector or on the remote control to start the projector.

  • Page 21: Using The Menus

    Using the menus The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various adjustments and settings. To access the OSD menu, press MENU on the projector or remote control. • Use the arrow keys ( / / / ) on the projector or remote control to move through the menu items.

  • Page 22: Securing The Projector

    The OSD screenshots below are for reference only, and may differ from the actual design. Securing the projector Using a security cable lock The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector.

  • Page 23: Switching Input Signal

    Please write down the recall code, and contact 2. Write down the number and turn off your projector. BenQ Customer Center. 3. Seek help from the local BenQ service center to decode the number. You may be required to provide Recall Code: proof of purchase documentation to verify that you are an authorized user of the projector.

  • Page 24: Shutting Down The Projector

    Once detected, the selected source information will appear at the corner of the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal. • The brightness level of the projected image will change accordingly when you switch between different input signals.

  • Page 25: Menu Operation

    Menu operation Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using. The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.
  • Page 26 Reference Mode Presentation/Spreadsheet/sRGB/Video Brightness 0~50~100 Contrast -50~0~50 Color -50~0~50 Tint -50~0~50 Sharpness 0~15~31 Gamma 1.8/2.0/2.1/2.2/2.3/2.4/2.5/2.6/BenQ Selection Color Temperature (Native/Cool/Normal/Warm) R Gain (0~200) Color G Gain (0~200) Temperature B Gain (0~200) Tuning Picture R Offset (0~511) G Offset (0~511) B Offset (0~511)
  • Page 27 Main menu Submenu Options Aspect Ratio Auto/Real/4:3/16:9/16:10 H: -30~0~30 2D Keystone V: -30~0~30 Auto Vertical -30~0~30 Keystone Test Pattern On/Off Auto/Top Bottom/Frame Sequential/Frame 3D Mode Packing/Side by Side/Off 3D Sync Invert Disable/Invert Apply 3D 3D Settings 1/3D Settings 2/3D Settings Display Settings 3/Off...
  • Page 28 Bhs Ind Standby Mode Eco/Normal Standby Audio Pass Settings Off/HDMI-1/HDMI-2 Through Background BenQ/Black/Blue/Purple Background System Settings Splash Screen BenQ/Black/Blue Menu Type Basic/Advanced Menu Settings Menu Display 5 sec/10 sec/20 sec/30 sec/Always Time Mute On/Off Volume 0~5~10 Audio Settings Power On/Off...

  • Page 29: Basic Menu

    Basic menu The higher the value, the brighter the image. Adjust this control so the black Brightness areas of the image appear just as black and that detail in the dark areas is visible. There are several options to set the image's aspect ratio depending on your input signal source.
  • Page 30 The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type. • Bright: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

  • Page 31: Advanced Menu

    Advanced menu Picture The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type. • Bright: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
  • Page 32 The higher the value, the brighter the image. Adjust this control so the black Brightness areas of the image appear just as black and that detail in the dark areas is visible. The higher the value, the greater the contrast. Use this to set the peak white Contrast level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
  • Page 33 Gamma Selection Gamma refers to the relationship between input source and picture brightness. • 1.8/2.0/2.1/BenQ: Select these values according to your preference. • 2.2/2.3: Increases the average brightness of the picture. Best for a lit environment, meeting room or family room.
  • Page 34 Color Management This function provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference. • Primary Color: Selects a color from among R (Red), G (Green), B (Blue), C (Cyan), M (Magenta), or Y (Yellow).
  • Page 35 Display There are several options to set the image's aspect ratio depending on your input signal source. • Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width. 15:9 picture • Real: Projects an image as its original resolution and resizes 4:3 picture it to fit within the display area.
  • Page 36 This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.
  • Page 37 Digital Zoom Magnifies or reduces the projected image size. After the Digital Zoom page displays, press ZOOM+/ZOOM- to reduce or magnify the image to a desired size. Press the directional arrows ( , ) on the projector or remote control to navigate the picture. The picture can only be navigated after it is magnified.
  • Page 38 Blank Timer Sets the image blank time when there is no action taken on the blank screen, once elapsed the image will return to the screen. If the preset time spans are not suitable for your need, select Disable. No matter Blank Timer is activated or not, you can press most of the keys on the projector or remote control to restore the picture.
  • Page 39 Disables or enables "Type A connector" 5V power output. To enable this USB Power function, select On. Select Off when PointWrite Touch Module is not in use to Switch prevent damage. Returns all of the adjustments you’ve made for the Settings menu to the Reset Settings factory preset values.
  • Page 40 Information • Native Resolution: Shows the native resolution of the projector. • Detected Resolution: Shows the native resolution of the input signal. • Source: Shows the current signal source. • Picture Mode: Shows the selected mode in the Picture menu. •...

  • Page 41: Maintenance

    Maintenance Care of the projector Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector and let it cool down completely before cleaning the lens. • Use a canister of compressed air to remove dust. •...
  • Page 42 Time used in ECO mode = y hours Time used in SmartEco mode = z hours α 2. Equivalent Light Hour = hours α --- - × χ --- - × --- - × , if X= light source life spec of Normal mode Y= light source spec of ECO mode Z= light source spec of SmartEco mode A’...
  • Page 43 Indicators Light Status & Description Power events Stand-by mode Powering up Normal operation Normal power-down cooling Download Data abort, scaler shutdown abnormally Burn-in events Burn-in on Burn-in off Light events Light life exhausted Light error in normal operation Thermal events Fan 1 error (the actual fan speed is outside the desired speed) Fan 2 error (the actual fan speed is outside the desired...

  • Page 44: Troubleshooting

    Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC power jack on the projector, and plug the power cord into the power There is no power from the power cord. outlet. If the power outlet has a switch, make sure that it is switched on.

  • Page 45: Specifications

    Specifications Projector specifications All specifications are subject to change without notice. Optical Resolution LW550: 1280 x 800 WXGA Input terminals LH550: 1920 x 1080 1080p Display system Video signal input 1-CHIP DMD SD/HDTV signal input Lens Digital - HDMI x 2 F = 2.4 ~ 2.5, f = 22 ~ 24.1 mm...

  • Page 46: Dimensions

    Dimensions 303.5 107.4 220.7 Unit: mm 46 Specifications...

  • Page 47: Timing Chart

    XGA_85 84.997 68.667 94.500 XGA_120 (Reduce 119.989 97.551 115.5 Supported Blanking) 1152 x 864 1152 x 864_75 67.5 BenQ Notebook 1024 x 576@60Hz 60.00 35.820 46.996 Timing BenQ Notebook 1024 x 600@65Hz 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60 45.000...
  • Page 48 • Video timings Supported 3D format Vertical Horizontal Pixel Timing Resolution Frequency Frequency Frequency Frame Frame Side by (Hz) (kHz) (MHz) Sequential Packing Bottom Side 720 (1440) x 480i 59.94 15.73 Supported 480p 720 x 480 59.94 31.47 Supported 720 (1440) x 576i 15.63 576p...
