Summary of Contents for extronics iBATT5XX

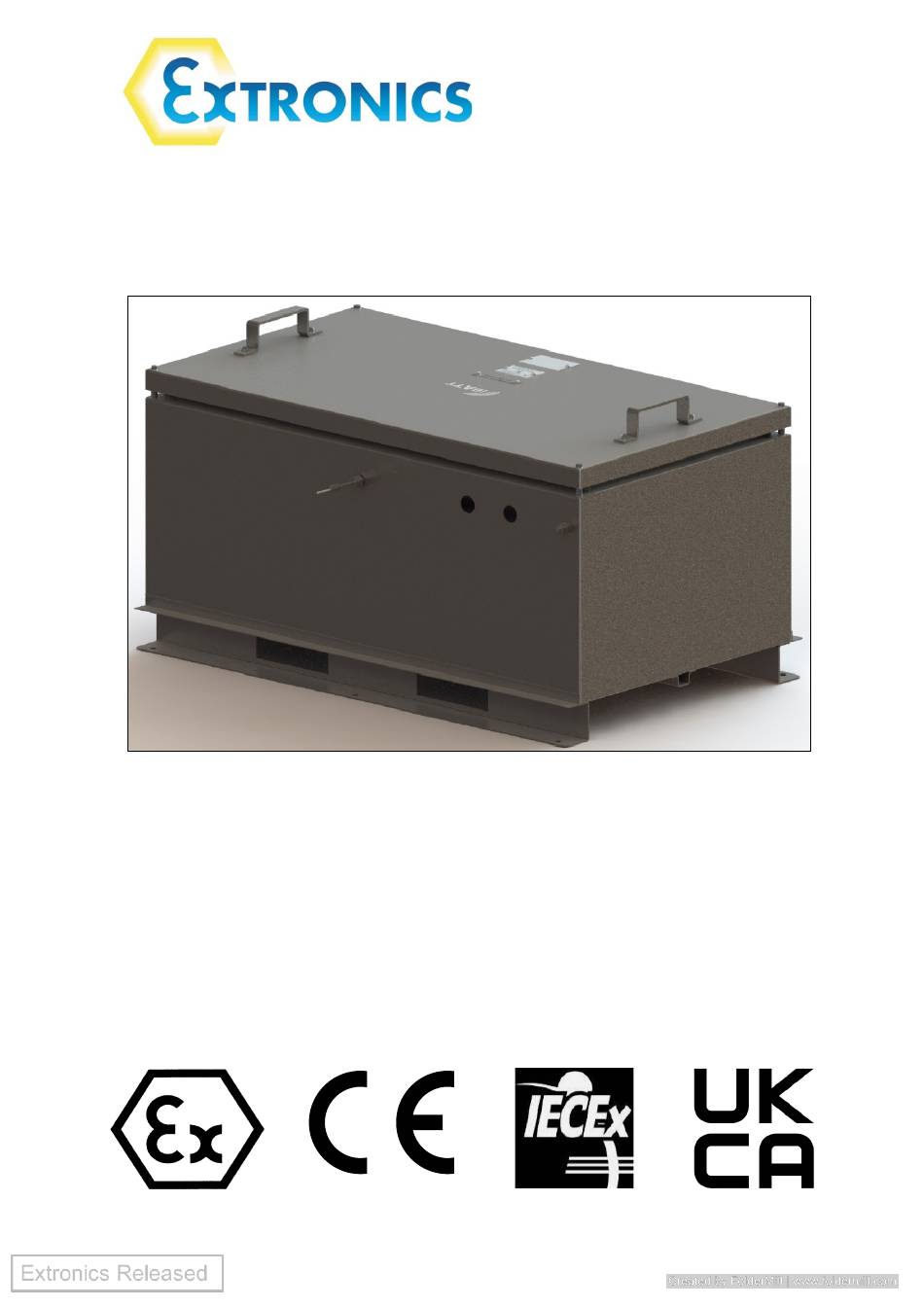

- Page 1 Installation & Operating Manual iBATT5XX...
- Page 2 This page is intentionally left blank. Document Number 413017(7). For release status refer to Extronics DDM. © 2023 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
- Page 3 Installation & Operating Manual Contents Introduction ......................4 Safety Information and Notes ................5 Storage of this Manual ................... 5 Certification Requirements ................5 Special Conditions for Safe Use ..............5 Warnings ....................... 6 Installation & Use....................7 Lifting ......................7 Mounting ......................
- Page 4 Zone1 and Zone 2 hazardous areas. It is designed to be used in conjunction with the iUPS1XX system & other products to provide an uninterruptible power supply. The iBATT5XX can also be used independently providing the special conditions for safe use are applied as detailed on the ATEX/IECEx/UKEX certificates.
- Page 5 Installation & Operating Manual 2 Safety Information and Notes 2.1 Storage of this Manual Keep this user manual safe and in the vicinity of the device. All persons who have to work on or with the device should be advised on where the manual is stored.
- Page 6 • Installation of the iBATT5XX must be performed in accordance with IEC 60079-14. • Maintenance and inspection must be performed in accordance with IEC 60079-17.
- Page 7 Opening and Closing the Enclosure The iBATT5XX enclosure is designed with a bolted or hinged lid which is secured using retained bolts. Unscrew each lid bolt & remove the lid. When the lid is re-fitted, place the lid onto the base &...
- Page 8 3.9 Transportation and Storage The iBATT5XX enclosure must be transported and stored so that it is not subjected to any excessive mechanical stresses. 3.10 Cleaning and Maintenance The iBATT5XX and its components maintenance intervals depend on the environment where the enclosure is installed.
- Page 9 The iBATT5XX is not designed to be subjected to excessive stresses e.g. vibration, heat, impact. Additional protection is required to protect against these external stresses. The iBATT5XX will require additional protection if it is installed in a location where it may be subjected to damage.
- Page 10 Installation & Operating Manual 4 Technical Data 4.1 Specification Maximum Voltage Unlimited Maximum Cells 36 (but can be increased, ask Extronics) Maximum Capacity 2500Ah (but can be increased, ask Extronics) Maximum Enclosure Size 1610 x 1810 x 700 Enclosure Material...
- Page 11 Installation & Operating Manual 4.2 Battery Information See separate battery product information sheet supplied by Extronics.
- Page 12 Installation & Operating Manual 5 Certification 5.1 Marking Information...
- Page 13 Installation & Operating Manual 5.2 EU Declaration of Conformity...
- Page 14 Installation & Operating Manual 5.3 UKEX Declaration of Conformity...
- Page 15 Installation & Operating Manual 6 Type Codes See separate battery product information sheet supplied by Extronics.
