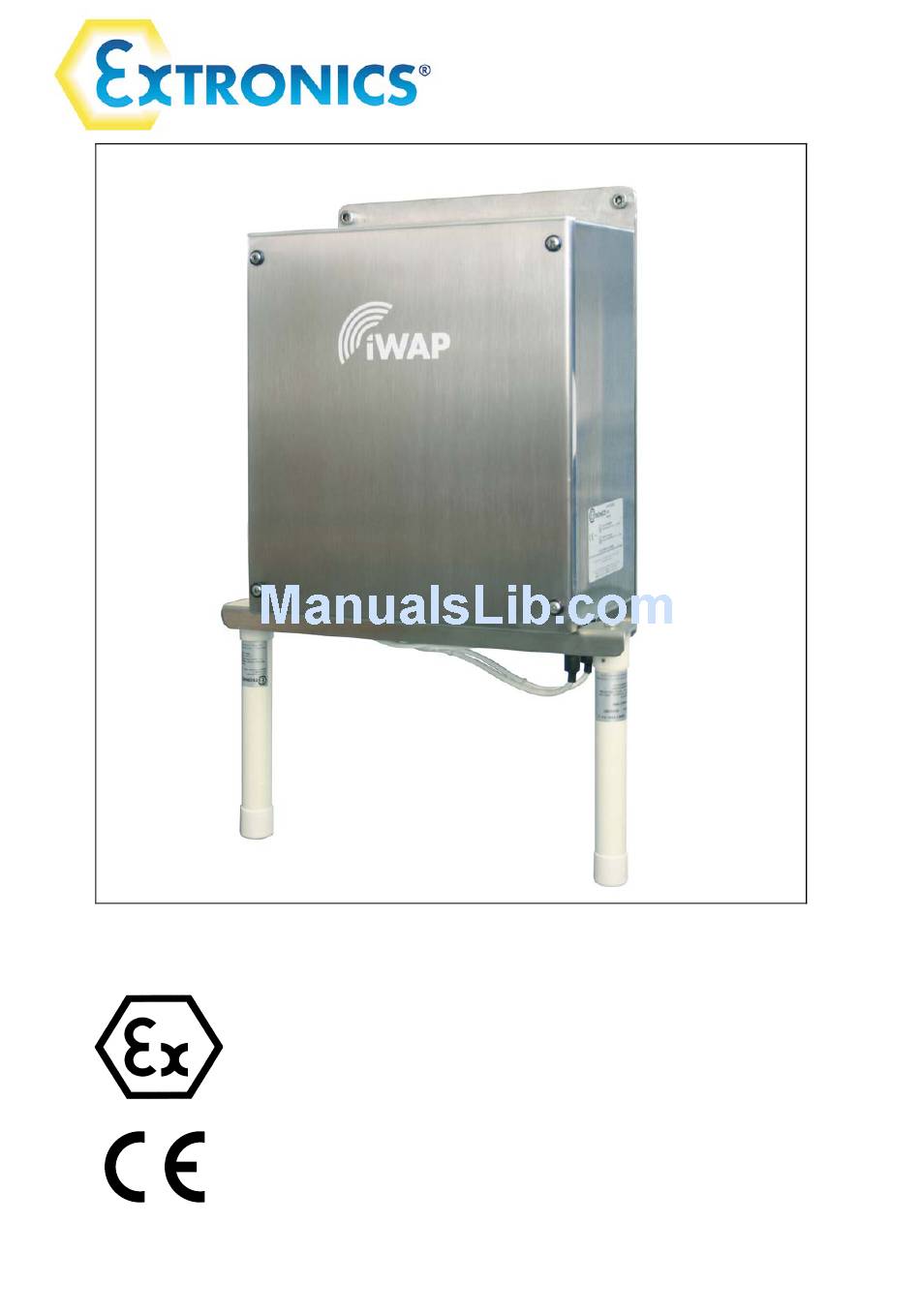

- Page 1 Installation & Operating Manual iWAP202...
- Page 2 Document Number 409345 (based on 407655) (See Last Page for Revision Details) For warranty information, refer to Terms and Conditions at http://www.extronics.com © 2014 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 3: Table Of Contents
Operating Manual Contents Introduction ......................4 Safety Information and Notes ................5 Storage of this Manual ................... 5 Special Conditions of Safe Use ..............5 2.2.1 ATEX ...................... 5 List of Notes ....................5 Installation and Setting-to-Work ................7 Installation ..................... 7 3.1.1 Removing the cover ................ -
Page 4: Introduction
WLAN network devices to be installed in hazardous areas. The Extronics iWAP202 is designed for use with one to six standard antennas or Extronics iANT200 series of antennas for optimum coverage on Chemical Plants, Oil Refineries or Oil & Gas Platforms. -
Page 5: Safety Information And Notes
EN 60079-0, EN 60079-14 and EN 60079-25. Maintenance and inspection must be performed in accordance with EN 60079-17. Warning! Installation of the iWAP202 is only to be performed by skilled electricians and instructed personnel in accordance with national legislation. Warning! The iWAP202 contains INTRINSICALLY SAFE circuits. - Page 6 IP rating of the enclosure. Warning! Although antennas connected to the Intrinsically Safe RF outputs of the iWAP202 may be installed in Zone 0, Zone 1 or Zone 20 hazardous areas, the iWAP202 enclosure must NOT be installed in these environments. Warning! Do not exceed the RF Threshold Power for the equipment group in which the iWAP202 and its antennas are to be installed;...
-
Page 7: Installation And Setting-To-Work
Operating Manual 3 Installation and Setting-to-Work 3.1 Installation The IWAP202 is simple to install and can be secured directly to suitable surface using the mounting holes on the Enclosure. 3.1.1 Removing the cover Unscrew the four screws and remove the enclosure lid. -
Page 8: Power Supply
Operating Manual 3.1.2 Power Supply The iWAP202 may only be powered from an IEEE 802.3af POE or IEEE 802.3at POE+ power source. The equipment rating plate identifies which power supply type is required for a specific variant. 3.1.3 Fitting the Cables... -
Page 9: Rj45 Screw Terminal Option
Wire into item 23 Ex e Screw terminals Minimum cross section of cable = 0.14mm Maximum cross section of cable = 1.5mm 3.1.7 Earthing Warning! The iWAP202 MUST be securely earthed with a minimum 4mm cable using the External M6 Earth Stud. External M6 SS Earth Stud... -
Page 10: Intrinsically Safe Rf Outputs
Antennas connected to the iWAP202 Intrinsically Safe RF outputs must be assessed as ‘simple apparatus’ in accordance with IEC 60079-11. Antennas supplied by Extronics for use with the iWAP202 already meet these requirements. It is possible to assess other antennas for this purpose, contact Extronics for details. -
Page 11: Antenna Installation
Antennas approved by Extronics for use with the iWAP202 may either be fitted directly to the RF connectors of the iWAP202, or via a length of coaxial cable. If antennas are sited remotely from the iWAP202 flameproof enclosure, any metallic parts of the antennas must be isolated from earth by >... -
Page 12: Authorized Persons
The IWAP202 is not designed to be subjected to excessive stresses e.g. vibration, heat, impact. Additional protection is required to protect against these external stresses. The IWAP202 will require additional protection if it is installed in a location where it may be subjected to damage. -
Page 13: Label Drawing
CONTAINS INTRINSICALLY SAFE CIRCUITS ENSURE GASKET IS FITTED BETWEEN BODY AND COVER TO MAINTAIN IP RATING REFER TO INSTALLATION INSTRUCTIONS Extronics Ltd, 1 Dalton Way, Midpoint 18, Middlewich, Cheshire CW10 0HU, UK Tel:+44 (0)845 2775000 Fax: +44 (0)8452774000 E-mail: info@extronics.com Web: www.extronics.com •... -
Page 14: Ec Declaration Of Conformity
Operating Manual 6 EC Declaration of Conformity... - Page 15 Operating Manual...
-
Page 16: Manual Revision
Operating Manual 7 Manual Revision Revision Description Date Initial Release 18/12/2014 iSOLATE501 additions 02/12/2015...
