- Page 1 Operating Manual iSCAN301S 417535...

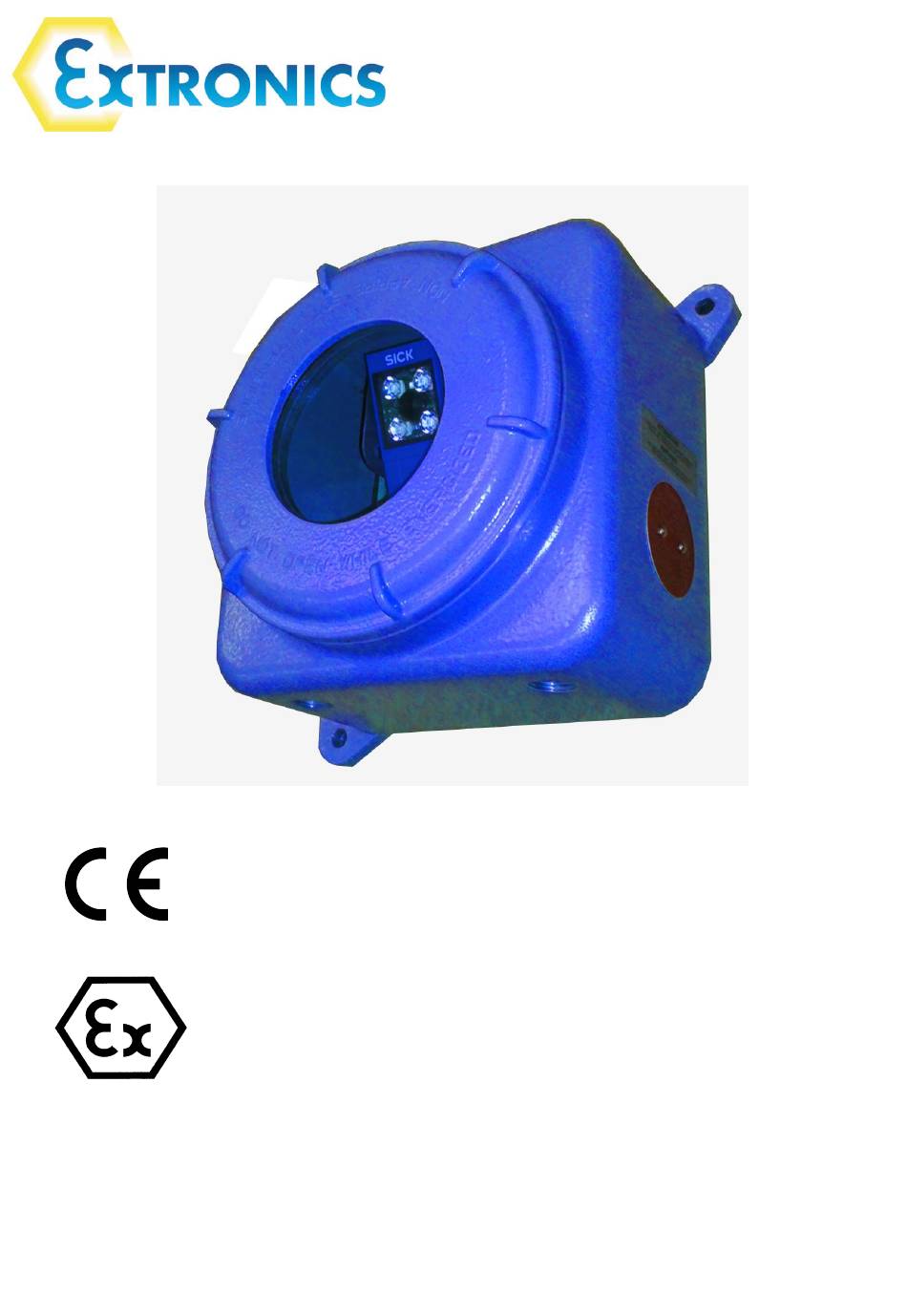

- Page 2 The Photograph on the front page shows the iSCAN301S Aluminium Enclosure. For warranty information, refer to Terms and Conditions at http://www.extronics.com © 2018 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 3: Table Of Contents
Operating Manual Contents Introduction ......................4 Safety Information and Notes .................. 5 Special Conditions for Safe Use – ..............5 Storage of this Manual ..................5 List of Notes ....................... 5 Installation and Setting-to-Work ................7 Installation ......................7 3.1.1 Dimensions .................... -
Page 4: Introduction
Operating Manual 1 Introduction The iSCAN301 unit consists of an Optical barcode scanner mounted inside an Ex d enclosure with a glass viewing window. The unit has two M20 tapped holes in the base through which the user must supply power and data cables fitted through appropriately certified Ex d IIB / IIC cable glands. -
Page 5: Safety Information And Notes
Important Modifications and conversions to the units are not permissible and will cause the Ex protection and the guarantee to become void. Extronics Ltd is not liable for any consequential damage. Important The technical data specified for hazardous areas comply with the values certified in the European Ex approval. - Page 6 Operating Manual Important For installation, maintenance and cleaning of the units, it is important to observe the applicable standards and provisions concerned with explosion protection (EN 60079-14, EN 60079-0, EN 60079-1) as well as the Accident Prevention Regulations and codes of practice in your region. Information The EPL is Gb and Db, the laser is Class 1 in accordance with IEC 60825- 1:2007-3, and the emission limits are below 15mW, therefore the equipment...
-
Page 7: Installation And Setting-To-Work
Operating Manual 3 Installation and Setting-to-Work 3.1 Installation The iSCAN301S is simple to install and can be secured directly to suitable surface using the built in mounting points of the aluminium enclosure. 3.1.1 Dimensions 3.1.2 Fitting the cables Feed the power or data cable through the enclosure cable entries (see section 3.4.1) -
Page 8: Setting-To-Work
Operating Manual 3.2 Setting-to-work The iSCAN301S can be set up by following the instructions in the ICR620S-T11503 Operating Instructions. These can be downloaded from https://www.sick.com/media/dox/6/36/436/Operating_instructions_LECTOR%C2%AE62 0_en_IM0038436.PDF 3.3 Wiring Schematics 3.4 Connecting the cables 3.4.1 Cable Gland Entry Cable entries must be made by appropriately certified Ex d IIB / IIC cable glands via the... -
Page 9: Intended Purpose Usage
The user bears the sole risk in such cases. 4.1 Transportation and Storage All iSCAN301S devices must be transported and stored so that they are not subjected to any excessive mechanical stresses. 4.2 Authorized Persons Only persons trained for the purpose are authorized to handle the iSCAN301S;... -
Page 10: Cleaning And Maintenance Intervals
The iSCAN301S is not designed to be subjected to excessive stresses e.g. vibration, heat, impact. Additional protection is required to protect against these external stresses. The iSCAN301S will require additional protection if it is installed in a location where it may be subjected to damage. -
Page 11: Code Reader Specification
Operating Manual 5 Code Reader Specification Reading field Side Focus Teach auto focus Sensor CMOS matrix sensor, grayscale values Sensor resolution 752 px x 480 px (WVGA) Internal lighting Red, Blue Light source Illumination LEDs: visible red light (λ = 617 ± 15 nm), visible blue light (λ... -
Page 12: Technical Data
Operating Manual 6 Technical Data Certification A II 2 G Ex d IIC T6 Gb A II 2 D Ex tb IIIC T85°C 100°C Db, IP66 Dimensions H224 x W224 x D152 mm (including mounting flanges) Mounting centres 198 x 198 mm (11mm diameter) Weight Approx. -
Page 13: Manual Revision
Operating Manual 7 Manual Revision Revision Description Date First release 29/06/16 JR/PR Added EU Manufacturers Declaration 14/07/16 Revised EU D of C, include complete certificates and clarify ‘special conditions of safe use’ as per 08/12/16 certificates. EU D of C and manual section 2.2 List of Notes includes clarification regarding exemption from EN 24/01/17 60079-28:2015...
