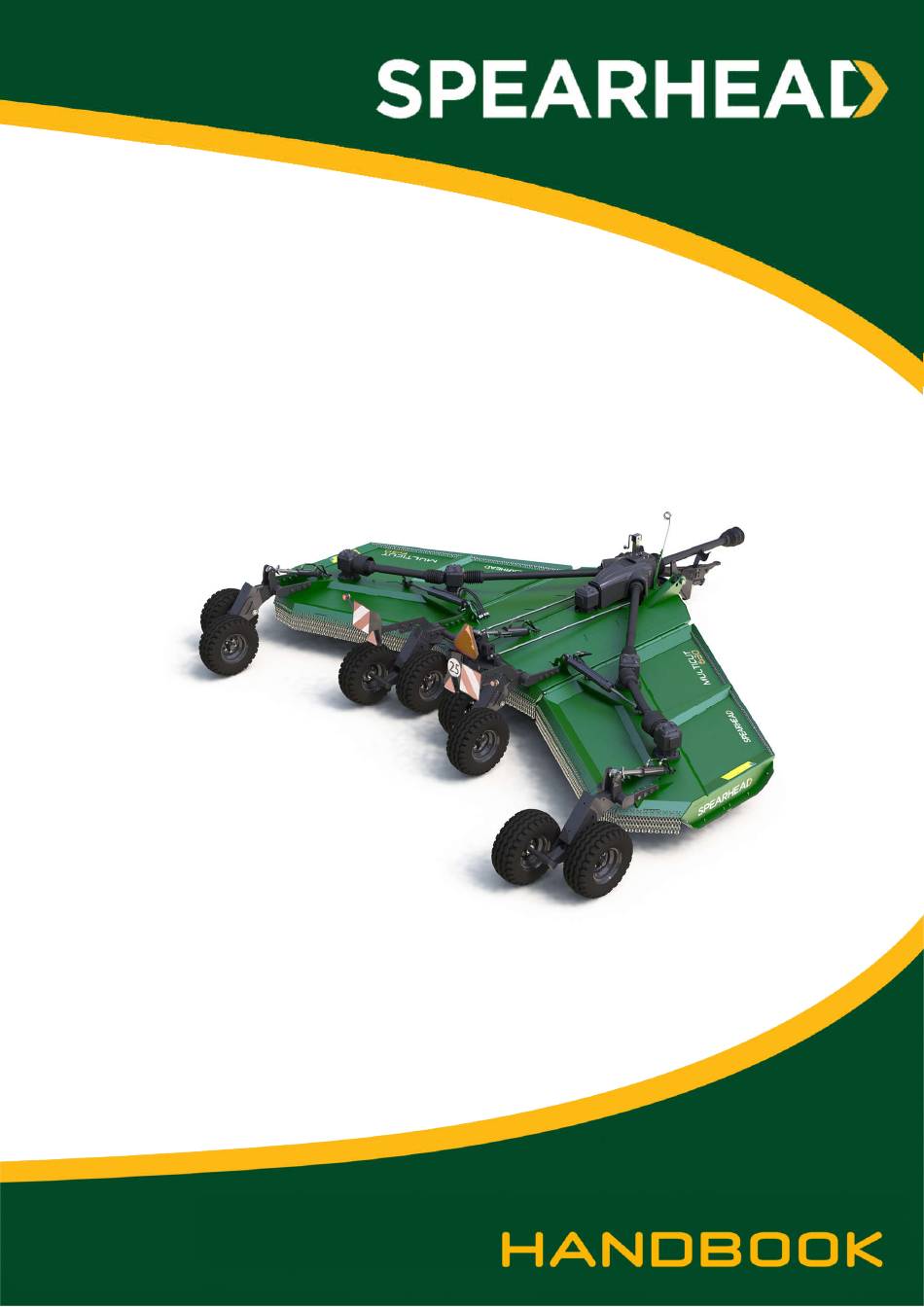

MULTICUT 630
MULTICUT 630
Edition 1.3 – May 2021
Part No. 8999121A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTICUT 630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spearhead MULTICUT 630

Summary of Contents for Spearhead MULTICUT 630

  • Page 1 MULTICUT 630 MULTICUT 630 Edition 1.3 – May 2021 Part No. 8999121A...
  • Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with Spearhead Machinery Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
  • Page 3 MULTICUT 630...

  • Page 4: Table Of Contents

    MULTICUT 630 Contents Safety Recommendations Introduction Tractor Requirements Attaching To The Tractor Setting Up Your Machine Operation Transportation Machine Protection Servicing & Maintenance Safety First Daily Every 8 Hours Regularly Blades Slip Clutch Settings Skids Storage Trouble Shooting Guide...
  • Page 5 MULTICUT 630...

  • Page 6: Safety

    MULTICUT 630 Safety Warning Warning Avoid fluid escaping Shut off engine and remove under pressure. Consult key before performing technical manual for maintenance or repair work. services procedures Warning Warning Danger – flying objects Check all nuts are tight keep safe distance from every 8 hours.

  • Page 7: Recommendations

    MULTICUT 630 Recommendations Beware of the following Potential Dangers associated with the use of this machine: Becoming trapped when hitching or unhitching   Machine overbalancing when wing is raised.  Getting caught on rotating power take off (PTO) Being hit or caught by any moving part, e.g. Blades, drive shaft and wings.
  • Page 8 MULTICUT 630 Recommendations Ensure all blades have stopped spinning before folding wings into transport  position.  Disengage the machine, stop the engine and remove the key before leaving the tractor cab for any reason Clean up any debris left at the work site.

  • Page 9: Introduction

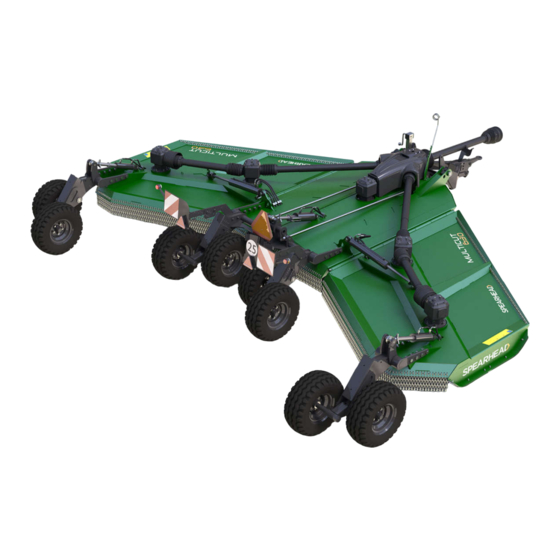

    MULTICUT 630 Introduction The Spearhead 630 is a heavy-duty rotary mower for a set-aside, stubble and pasture topping. By carefully following the instructions in this handbook, the 630 will give many years of trouble free operation. Safety First Never start using the machine until the handbook has been read and understood.

  • Page 10: Attaching To The Tractor

    MULTICUT 630 Attaching To The Tractor Determining The Correct Length PTO Shaft To determine the correct length of the driveline, it is advisable to hook the machine to the tractor and place the machine in order for it be at a minimum distance between the power takeoffs.
  • Page 11 MULTICUT 630 3. Carefully deburr the ends of the tubes with a file and remove any chippings from the tubes 4. Shorten shield tubes one at a time by cutting the same length that was cut from the drive tubes. If the driveline is equipped with Single...

  • Page 12: Setting Up Your Machine

    MULTICUT 630 Setting Up Your Machine Levelling – Front To Rear Once coupled to the tractor, check the mower is cutting level from the front to the rear of the machine. This is important to ensure each rotor will cut at the same height.
  • Page 13 There are several ways of adjusting the wing height on a Spearhead 630 mower. These adjustments are necessary to compensate for wear and also variation of tolerances.
  • Page 14 MULTICUT 630 Setting Up Your Machine Height To alter the minimum height of cut; fully raise the machine, remove all stops from the ram and gently lower the machine. To increase the height of cut, add stops/spacers by fully lifting machine add the spacers required and then gently lower the machine onto the stops.

  • Page 15: Operation

    MULTICUT 630 Operation Once ready for work, raise the mower cutting height slowly engage the PTO with the tractor engine at low revs to prevent shock damage to the machine. Slowly increase engine revs to achieve the recommended PTO speed of 1000r.p.m. As...
  • Page 16 MULTICUT 630 Recommended Whilst operating it is possible to continue working when turning as the 630 Rotary Cutter is fitted with a constant velocity joint on PTO shaft. However take care not to run the rear tractor wheel against the mower draw bar as this will result in serious damage to the tractor, the mower and, in particular, the PTO shaft.

  • Page 17: Transportation

    MULTICUT 630 Transportation First disengage the PTO drive, fold the wings fully up and secure with transport strap (Fig. 7). Raise he machine up and fit 8-10 of the height stops and then drop weight of machine back onto ram.

  • Page 18: Machine Protection

    Alternatively refer to page 26. If in any doubt, consult Spearhead’s Service Department or your local Spearhead Dealer for further advice. Fig. 8 Slip Clutch (BONDIOLI & PAVESI)

  • Page 19: Servicing & Maintenance

    MULTICUT 630 Service & Maintenance Safety First Never leave the tractor seat without first disengaging the PTO and  stopping the engine. Ensure all rotating parts have stopped turning.  Never attempt any repairs, maintenance, service or any other ...

  • Page 20: Every 8 Hours

    MULTICUT 630 Service & Maintenance – Every 8 hours Every 8 hours Fig. 10 Primary input shaft. Cross (C) 22 g Shield Bearings (S) Telescopic Members (T) 32 g 80° CV-joint (80°) 80 g For maximum life and performance, the CV body must be greased regularly. Lubricate with ...

  • Page 21: Regularly

    MULTICUT 630 Servicing & Maintenance Regularly Check there is no wrapping of string, plastic, grass or other debris between  rotor boss and gearbox oil seal.  Inspect gearbox seals for leaks.  Clear grass and other debris from the deck.

  • Page 22: Slip Clutch Settings

    MULTICUT 630 Clutch Maintenance & Settings BONDIOLI Manufacture (Belleville Spring) Check the condition of the friction discs before use and following periods of storage. Release the tension from the spring, turn the clutch while holding the P.T.O stationary. Adjust the spring compression to the original setting.

  • Page 23: Skids

    MULTICUT 630 Servicing & Maintenance Skids When operating on abrasive soils, particularly in stubbles and similar conditions with thin ground cover, excessive skid wear may be expected. To provide extra protection and to prolong life of the skids, special hard facing rods are available.

  • Page 24: Trouble Shooting Guide

    MULTICUT 630 Trouble Shooting Guide Broken or damaged blades Slip clutches overheating Raise cutting height to avoid Machine overloaded striking the ground Incorrect operating speed Remove or avoid obstacles such as rocks Incorrect setting Check rotor speed Blades hitting the ground...
  • Page 25 MULTICUT 630...
  • Page 26 MULTICUT 630 Spearhead Machinery Station Road Salford Priors Evesham Worcestershire WR11 8SW Tel: 01789 491860 Fax: 01789 778683 www.spearheadmachinery.com enquiries@spearheadmachinery.com...
