Spearhead Multicut 300
Multicut 300
th
7
Edition – Feb 2014
Part No. 8999009
1 1 1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multicut 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spearhead Multicut 300

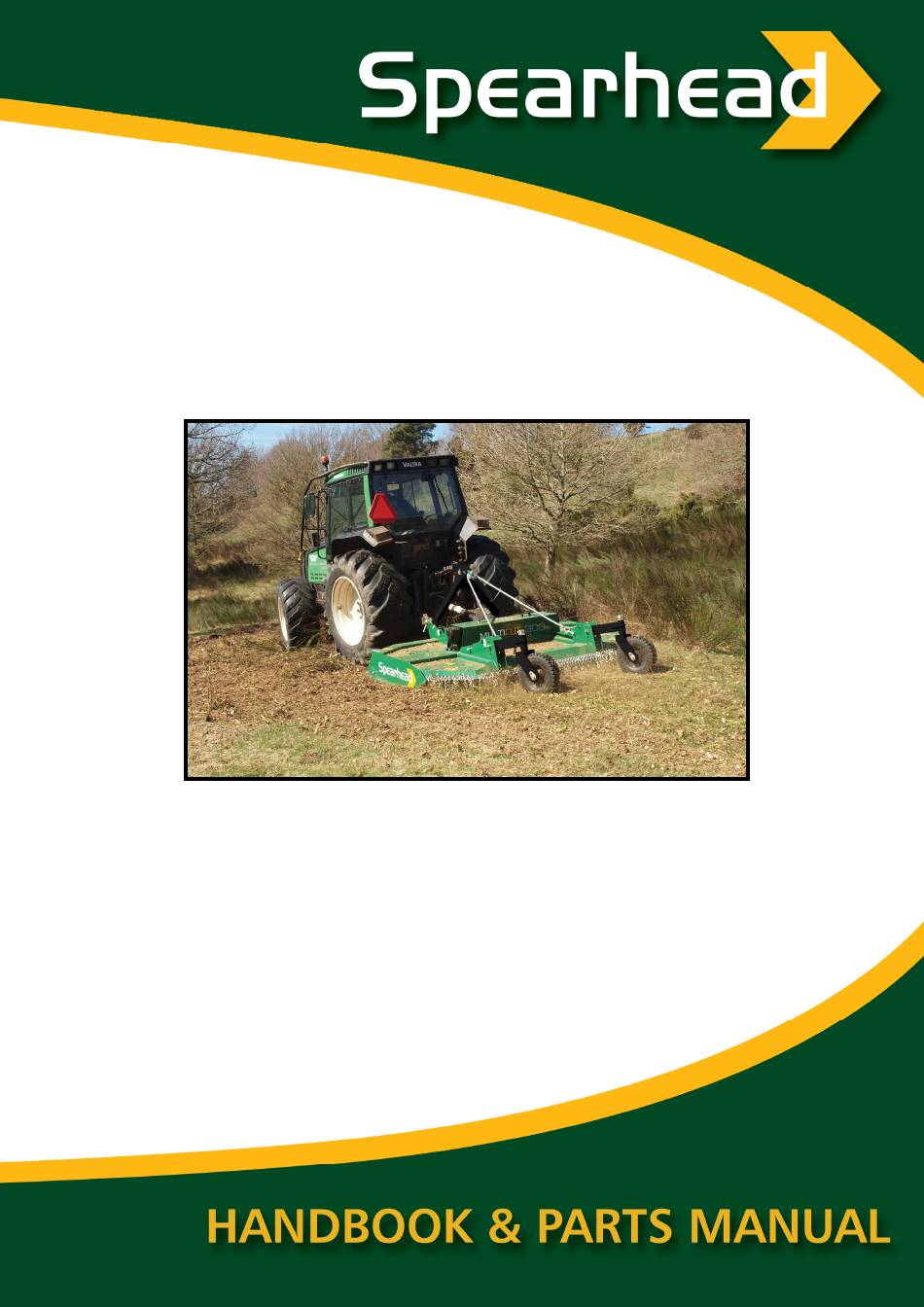

  • Page 1 Spearhead Multicut 300 Multicut 300 Edition – Feb 2014 Part No. 8999009 1 1 1 1...
  • Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with Spearhead Machinery Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
  • Page 3 1.02. All spare parts supplied by Spearhead Machinery Limited are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 6 months.
  • Page 4 Machinery web site and confirms the registration to the purchaser by completing the confirmation form in the operator’s manual. 2.02. Any fault must be reported to an authorised Spearhead Machinery dealer as soon as it occurs. Continued use of a machine, after a fault has occurred, can result in further component failure for which Spearhead Machinery Ltd cannot be held liable.
  • Page 5 Conforming to E Machinery Machinery Directive Directive 2006/42 2006/42/ / / / EC 2006/42 2006/42 We, Spearhead Machinery Ltd, Green View, Salford Priors, Evesham, Worcestershire, WR11 8SW hereby declare that: Product Product Product Product ……………………………………………..………………………… Product Code Product Code Product Code Product Code ……………………………………………..…………………………...
  • Page 6: Table Of Contents

    Spearhead Multicut 300 Contents Contents Contents Contents Important Safety Safety Stickers Introduction Safety First Tractor Requirements Attaching To The Tractor Setting Up & Adjustments – Height Machine Protection Operation Transportation Servicing & Maintenance Servicing & Maintenance Servicing & Maintenance Servicing & Maintenance...
  • Page 7: Important Safety

    Spearhead Multicut 300 Important Important Important Important Safety • Never operate the machine with other people present, as it is possible for debris, including stones, to be discharged from the front and rear of the flail hood. • Always ensure all cab safety guards are in place and all tractor windows closed.
  • Page 8: Safety Stickers

    Spearhead Multicut 300 Safety Safety Safety Safety Warning Warning Stay clear of mower blade Shut off engine and remove as long as engine is key before performing running. maintenance or repair work. Warning Warning Danger – flying objects Check all nuts are tight keep safe distance from every 8 hours.
  • Page 9: Introduction

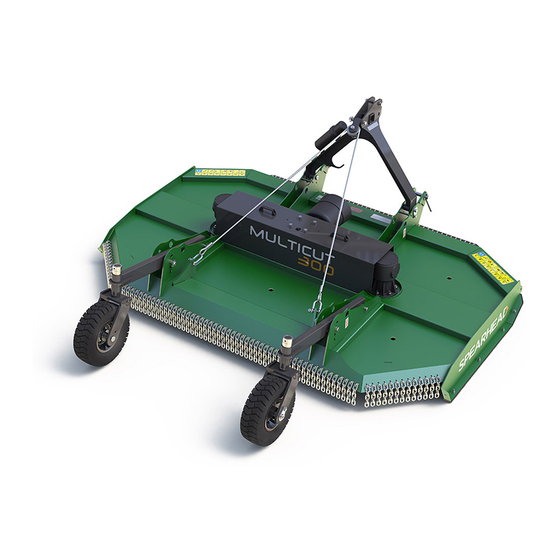

    Spearhead Multicut 300 Introduction Introduction Introduction Introduction The Spearhead Multi-Cut 300 is a very robust high capacity Rotary Cutter that is easy to operate and maintain, but to ensure trouble-free operation this manual should be carefully studied. Safety First Safety First...
  • Page 10: Attaching To The Tractor

    Spearhead Multicut 300 Attaching To The Tractor Attaching To The Tractor Attaching To The Tractor Attaching To The Tractor Fit the machine to the tractor linkage in the standard way, ensuring the correct match of linkage (CAT 2 pins). Check that the top link is in good order and threads are well lubricated.
  • Page 11: Setting Up & Adjustments - Height

    The shear bolt or clutch settings should not be altered without reference to the Spearhead Service Department. Never operate without protection, this could result in severe damage to the gearbox and drive lines, as well as infringing the warranty.
  • Page 12: Operation

    Spearhead Multicut 300 Operation Operation Operation Operation When in work, lower the machine to the ground carrying its weight on the wheels, allowing the machine to follow the contours of the ground and ensuring there is sufficient slack in the wire rope. Select a sensible forward speed bearing in mind the density of growth, the terrain, and the available horsepower, taking extra care when turning, particularly on slopes.
  • Page 13: Servicing & Maintenance

    Spearhead Multicut 300 Service & Maintenance Service & Maintenance Service & Maintenance Service & Maintenance Safety First • Never leave the tractor seat without first disengaging the PTO and stopping the engine. • Ensure all rotating parts have stopped turning.
  • Page 14: Daily Every 8 Hours

    Spearhead Multicut 300 Daily / Every 8 hours Daily / Every 8 hours Daily / Every 8 hours Daily / Every 8 hours • Grease all grease points, on PTO, including secondary drive line under the center guard • Check condition of blades and blade bushes and ensure all retaining bolts are fully tight.
  • Page 15: Blades

    Spearhead Multicut 300 Blades Blades Blades Blades Caution! When carrying out maintenance work on or near the blades be careful of free-swinging blades over-centring and falling. It is recommended that protective headgear, gloves and goggles are worn. The blades can be re-sharpened by grinding the cutting edges and care must be taken that the blades are of the same weight and length after grinding.
  • Page 16: Skids

    Spearhead Multicut 300 Skids Skids Skids Skids When operating on abrasive soils, particularly in stubbles and similar conditions with thin ground cover, excessive skid wear may be expected. To provide extra protection and to prolong life of the skids, special hard facing rods are available.
  • Page 17: Trouble Shooting Guide

    Spearhead Multicut 300 Trouble Shooting Guide Trouble Shooting Guide Trouble Shooting Guide Trouble Shooting Guide Broken or damaged blades • Raise cutting height • Avoid obstacles • Timing incorrect • Ensure a steady feed into drive (do not snatch the PTO) •...
  • Page 18: Ordering Your Parts

    Spearhead Multicut 300 When ordering parts please refer to your parts list to help your dealer with your order. Part number and quantity Description Machine model number Serial number of the machine Delivery instructions (e.g. next day). Delivery is normally via carrier direct to your dealer. Please check with your dealer for stock availability and arrangement of dispatch.
  • Page 19 Spearhead Multicut 300 PTO Shaft Assembly PTO Shaft Assembly PTO Shaft Assembly PTO Shaft Assembly...
  • Page 20: Shaft

    Spearhead Multicut 300 PTO Shaft Assembly PTO Shaft Assembly PTO Shaft Assembly PTO Shaft Assembly REF. NO PART NO. DESCRIPTION 3000 Swipe / 300 Multi-Cut 5769993 P.T.O. SHAFT ASSEMBLY 1000 RPM – 6/6 SPLINE 5769994 P.T.O. SHAFT ASSEMBLY 1000 RPM – 6/21 SPLINE...
  • Page 21: Centre Gearbox

    Spearhead Multicut 300 Centre Gearbox 5769992 Centre Gearbox 5769992 Centre Gearbox 5769992 Centre Gearbox 5769992...
  • Page 22 Spearhead Multicut 300 Centre Ge Centre Ge Centre Ge Centre Gearbox 5769992 arbox 5769992 arbox 5769992 arbox 5769992 REF. NO PART NO. DESCRIPTION 5769992 GEARBOX ASSY 6 SPLINE 1000RPM GEARBOX CASING 5771501 GEAR SET 5771506 SHAFT – 6 SPLINE 4771599...
  • Page 23: Rotor Gearbox

    Spearhead Multicut 300 Rotor Gearbox 5770002 Rotor Gearbox 5770002 Rotor Gearbox 5770002 Rotor Gearbox 5770002...
  • Page 24 Spearhead Multicut 300 Rotor Gearbox 5770002 Rotor Gearbox 5770002 Rotor Gearbox 5770002 Rotor Gearbox 5770002 REF. NO PART NO. DESCRIPTION 5770002 LH AND RH ASSEMBLY – 6 SPLINE 3000 Swipe / 300 Multi-Cut HOUSING 5771401 GUARD / COVER GASKET 5771416...
  • Page 25: Main Frame Assembly

    Spearhead Multicut 300 Main Frame Main Frame Main Frame Main Frame...
  • Page 26 Spearhead Multicut 300 Main Frame Main Frame Main Frame Main Frame REF. NO PART NO. DESCRIPTION 1770400B BODY 3000 Swipe / 300 Multi-Cut 7770702 BLADE RH 7770703 BLADE LH 1770404A BRACKET RH 1770403A BRACKET LH 5770002 GEARBOX 6 SPLINE 1777613A...
  • Page 27 Spearhead Multicut 300 Main Frame Main Frame Main Frame Main Frame...
  • Page 28 Spearhead Multicut 300 Main Frame Main Frame Main Frame Main Frame REF. NO PART NO. DESCRIPTION 2770436 WASHER 2770420 BOLT 1777209 WASHER 2770506 BOLT 2770509 BOLT 2770434 WASHER 2770412 6310206 6310203A 2770417 6770907 ADAPTOR 2770479 5771410 WASHER 5771409 2770512 2770467...
  • Page 29 Spearhead Multicut 300...
  • Page 30 Spearhead Multicut 300...
  • Page 31 Spearhead Multicut 300 GreenTec A/S Merkurvej 25 DK - 6000 Kolding Tel. +45 7555 3644 Fax. +45 7555 4243 info@GreenTec.eu www.GreenTec.eu...
