- Page 1 Documentation KL1859 HD Bus Terminal, 8-channel digital input + 8-channel digital output 24 V DC Version: 1.0.0 Date: 2016-08-10...
-
Page 3: Table Of Contents
Documentation Issue Status...................... 6 2 Product overview............................ 7 Introduction ............................ 7 Technical data .......................... 8 3 Presentation KL1859 within TwinCAT ..................... 9 4 Mounting and wiring .......................... 10 Installation on mounting rails ...................... 10 Connection system ......................... 12 ATEX - Special conditions ...................... 15 ATEX Documentation ........................ -
Page 4: Foreword
The TwinCAT Technology is covered, including but not limited to the following patent applications and patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. -
Page 5: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 6: Documentation Issue Status
Documentation Issue Status Version Comment 1.0.0 • First published Firmware and hardware versions Documentation KL1859 Version Firmware Hardware 1.0.0 The firmware and hardware versions (delivery state) can be taken from the serial number printed on the side of the terminal. -
Page 7: Product Overview

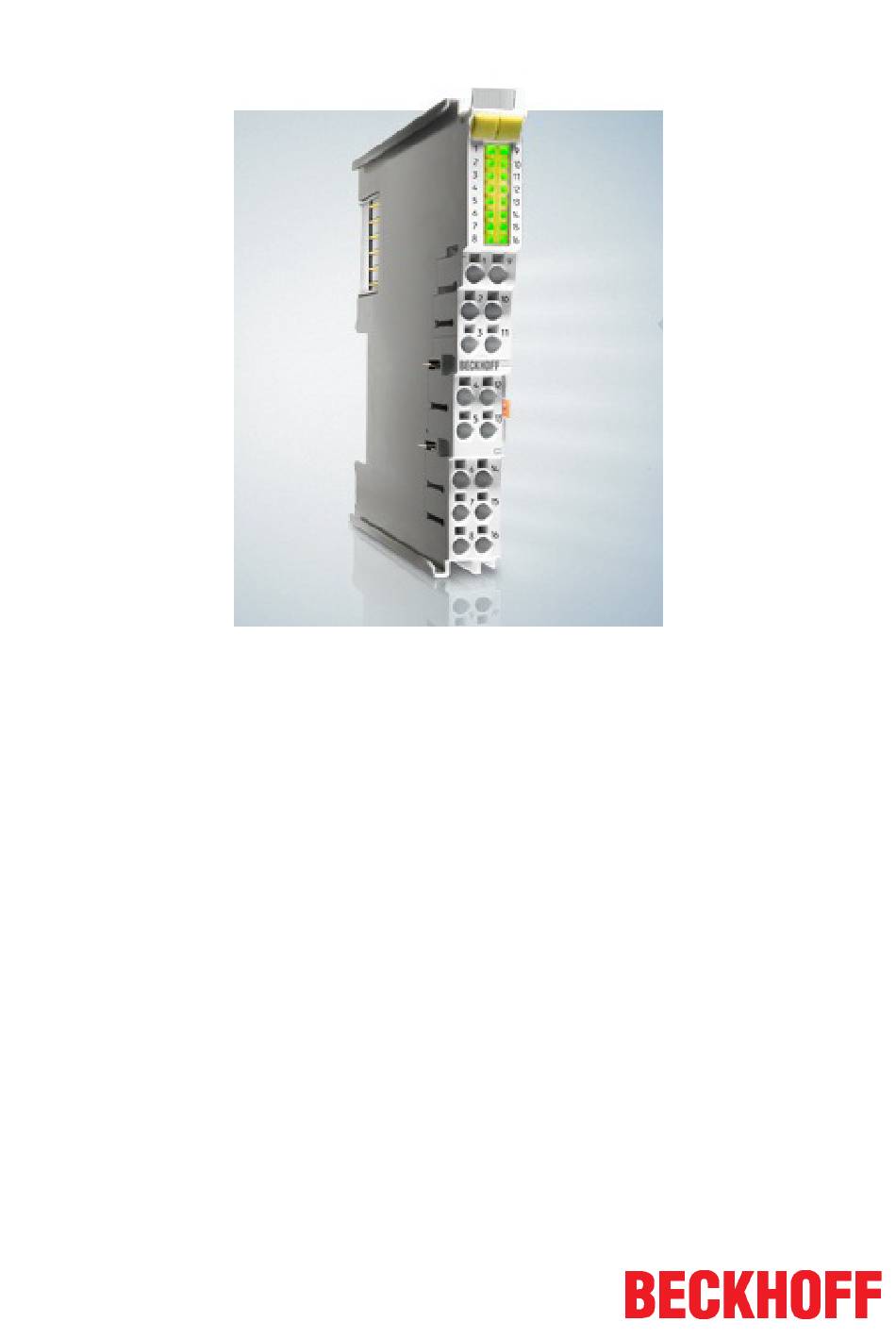

Introduction Fig. 1: KL1859 The digital KL1859 Bus Terminal combines eight digital inputs and eight digital outputs in one device. The inputs have a filter of 3.0 ms. The outputs process load currents up to 0.5 A, are short-circuit-proof and protected against polarity reversal. The signal states are displayed by LEDs. -
Page 8: Technical Data
Product overview Technical data KL1859 - Technical data Technical data KL1859-0000 Connection technology 1-wire Number of Inputs Number of Outputs Nominal voltage 24 V DC (-15 %/+20 %) “0“ signal voltage -3…+5 V (EN 61131-2, type 1/3) “1“ signal voltage 11…30 V (EN 61131-2, type 3) Input filter typ. -
Page 9: Presentation Kl1859 Within Twincat
Presentation KL1859 within TwinCAT Presentation KL1859 within TwinCAT Fig. 2: KL1859 within TwinCAT 2.11 KL1859 Version: 1.0.0... -
Page 10: Mounting And Wiring
Note flict with the fixing bolts of the mounting rail. To mount the mounting rails with a height of 7.5 mm under the terminals and couplers, you should use flat mounting connections (e.g. countersunk screws or blind rivets). Version: 1.0.0 KL1859... -
Page 11: Fig. 4 Disassembling Of Terminal
PE power contact The power contact labeled PE can be used as a protective earth. For safety reasons this contact mates first when plugging together, and can ground short-circuit currents of up to 125 A. KL1859 Version: 1.0.0... -
Page 12: Connection System
• The terminals of KSxxxx and ESxxxx series feature a pluggable connection level and enable steady wiring while replacing. • The High Density Terminals (HD Terminals) include electronics and connection level in a single enclosure and have advanced packaging density. Version: 1.0.0 KL1859... -
Page 13: Fig. 6 Standard Wiring
12 mm Bus Terminals. Massive conductors and conductors with a wire end sleeve can be inserted directly into the spring loaded terminal point without tools. KL1859 Version: 1.0.0... -
Page 14: Fig. 9 Mounting A Cable On A Terminal Connection
3. The terminal closes automatically when the pressure is released, holding the wire securely and permanently. Terminal housing ELxxxx, KLxxxx ESxxxx, KSxxxx Wire size width 0.08 ... 2,5 mm 0.08 ... 2.5 mm Wire stripping length 8 ... 9 mm 9 ... 10 mm Version: 1.0.0 KL1859... -
Page 15: Atex - Special Conditions
Observe the permissible ambient temperature range of 0 - 55°C for the use of Beckhoff fieldbus components in potentially explosive areas! d) Measures must be taken to protect against the rated operating voltage being exceeded... -
Page 16: Atex Documentation
Mounting and wiring Marking The Beckhoff fieldbus components certified for potentially explosive areas bear one of the following markings: II 3 G Ex nA II T4 KEMA 10ATEX0075 X Ta: 0 - 55°C II 3 G Ex nA nC IIC T4 KEMA 10ATEX0075 X Ta: 0 - 55°C... -
Page 17: Connection And Led Displays
Mounting and wiring Connection and LED displays Fig. 10: KL1859 - terminal points and LEDs Terminal point Description Name Input 1 Input 1 Input 2 Input 2 Input 3 Input 3 Input 4 Input 4 Input 5 Input 5 Input 6... - Page 18 Mounting and wiring LED indicators Color Meaning INPUT 1- 8 green signal "0" voltage (-3 V ... 5 V) signal "1" voltage (15 V ... 30 V) OUTPUT 1- 8 green no output voltage +24 V output voltage Version: 1.0.0 KL1859...
-
Page 19: Appendix
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 20 Power contact on left side......................Fig. 6 Standard wiring.......................... Fig. 7 Pluggable wiring ........................Fig. 8 High Density Terminals......................Fig. 9 Mounting a cable on a terminal connection ................Fig. 10 KL1859 - terminal points and LEDs ..................Version: 1.0.0 KL1859...
