- Page 1 Version 1.0 February 2013 702P01024 Xerox Color J75 Press ® Quick Start Guide...
- Page 2 ©2012 Xerox Corporation. All rights reserved. Xerox®, and Xerox and Design® are trademarks of Xerox Corporation in the United States and/or other countries. BR4006...
-
Page 3: Table Of Contents
Print server customer documentation.................3-1 4 Paper and other media................4-1 Loading paper in trays 1, 2, and 3.................4-1 Loading paper in the Bypass tray (Tray 5)..............4-2 5 Replacing consumable supplies............5-1 Ordering supplies.........................5-1 Replacing a toner cartridge....................5-2 Xerox Color J75 Press ® Quick Start Guide... - Page 4 Table of Contents Xerox Color J75 Press ® Quick Start Guide...
-
Page 5: Product Overview

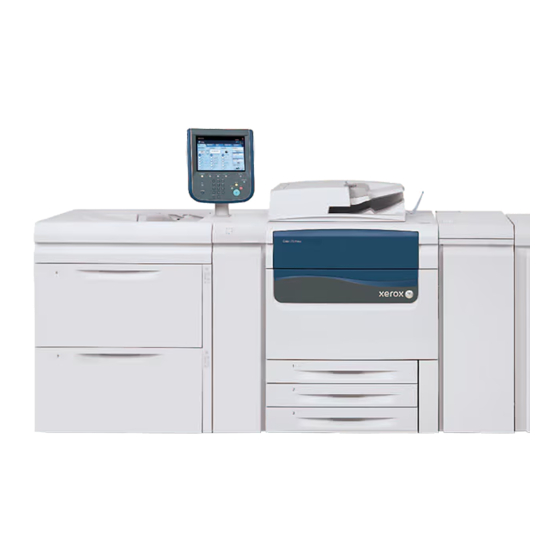

Product overview This machine is a full color/black and white copier and network printer that operates at a speed of 75 copies/prints per minute. Xerox Color J75 Press ® Quick Start Guide... -
Page 6: User Interface (Ui)
2. Services Home 3. Services 4. Job Status 5. Machine Status 6. Log In/Out 7. Energy Saver 8. Clear All 9. Stop 10. Start 11. Interrupt 12. Keypad 13. Language 14. Help Xerox Color J75 Press ® Quick Start Guide... -
Page 7: Power On/Off
2. Main power switch: This switch is located behind the front door/cover. It is used mainly by the Xerox Service Representative when servicing the machine. In rare problem solving cases, you may be directed to power off the machine with this switch. -
Page 8: Power Off
Power off 1. Press the power switch to the Off position. 2. Verify that the UI display is turned off completely, before turning on the machine again. Xerox Color J75 Press ® Quick Start Guide... -
Page 9: Copy
The confirmation indicator lights to show that the documents are loaded correctly. 3. Press the Services Home button. 4. Select Copy on the Services Home screen. 5. From the Copy screen, select the desired features/options. Xerox Color J75 Press ® Quick Start Guide... -
Page 10: Basic Copy Using The Document Glass
2. Place the document face down by aligning it as shown in the illustration. 3. Press the Services Home button. 4. Select Copy on the Services Home screen. 5. From the Copy screen, select the desired features/options. Reduce/Enlarge Paper Supply Xerox Color J75 Press ® Quick Start Guide... - Page 11 2-Sided Copying Original Type Lighten/Darken The features displayed on the main Copy screen vary depending on how the main Copy screen is configured by the administrator. 6. Enter the quantity. 7. Press Start. Xerox Color J75 Press ® Quick Start Guide...
- Page 12 Copy Xerox Color J75 Press ® Quick Start Guide...
-
Page 13: Where To Find Help
Where to find help Help on the World Wide Web Xerox on the World Wide Web: For system support, user help, customer documentation, and service support, go to www.xerox.com and click the Contact Us link for specific contact information/telephone numbers in your area. - Page 14 Where to find help Xerox Color J75 Press ® Quick Start Guide...
-
Page 15: Paper And Other Media
Do not load materials above the MAX line located on the rear Edge Guide. 7. Gently push in the tray until it comes to a stop. If enabled by your System Administrator, the Paper Tray settings screen may be displayed on the UI. Xerox Color J75 Press ® Quick Start Guide... -
Page 16: Loading Paper In The Bypass Tray (Tray 5)
4. Open the ream of paper with the seam side facing up. 5. Fan the sheets before loading them into the tray. 6. Insert the paper or media into the tray until it stops. Xerox Color J75 Press ® Quick Start Guide... - Page 17 Refer to the System Administration Guide for detailed information on the paper curl and alignment adjustment options. c) Select Save until you are returned to the tray settings window. 9. Select Confirm to close the window. Xerox Color J75 Press ® Quick Start Guide...
- Page 18 Paper and other media Xerox Color J75 Press ® Quick Start Guide...
-
Page 19: Replacing Consumable Supplies
Replacing consumable supplies Ordering supplies Xerox supplies, paper, and throughput material can be ordered from Xerox by going to www.xerox.com and clicking on either the Contact Us link for specific contact information/telephone numbers in your area or by clicking on the Supplies and entering/selecting your specific machine information (product family and model type). -
Page 20: Replacing A Toner Cartridge
1. Open the toner cover, located just above the machine front door/cover. 2. Lay paper on the floor before removing the cartridge. This will allow any excess toner to fall on the paper. Xerox Color J75 Press ® Quick Start Guide... - Page 21 7. Gently tilt the new cartridge up and down and then left and right to redistribute the toner. 8. Install the new toner cartridge by aligning the arrows on the cartridge evenly with the printer, and gently sliding the cartridge into the machine until you hear a click. Xerox Color J75 Press ® Quick Start Guide...
- Page 22 Never use a vacuum cleaner when cleaning up spilled toner. It can cause a small explosion as the toner fills the vacuum cleaner and creates sparks. Use a broom, brush, or a cloth moistened with a neutral detergent. Xerox Color J75 Press ® Quick Start Guide...
- Page 23 World Wide Web 3-1 User Interface (UI) 1-2 Ordering supplies Customer Replaceable Units (CRUs) 5-1 World Wide Web help www.xerox.com 3-1 Paper loading paper in the Bypass tray (Tray 5) Xerox Color J75 Press ® Quick Start Guide...
- Page 24 Index Xerox Color J75 Press ® Quick Start Guide...
