Sealey 1050CXHV Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instruction footwear
manual
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement
9
of damaged parts. Use genuine parts only. The use of unapproved parts may be dangerous and will invalidate the
warranty.
Locate the jack in a suitable, well lit working area.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can freely move).
9
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "PARK" if
9
automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle
9
tilting.
Ensure there are no passengers in the vehicle.
9
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Only place jack under those lifting points recommended by vehicle manufacturer (see vehicle hand book).
9
Check the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
▲ DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
Use suitable capacity axle stands under the vehicle before proceeding with any task.
9
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
DO NOT operate the jack if damaged.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT exceed the rated capacity of the jack (2tonne/2000kg). When lifting a load of maximum capacity or close
8
to it, it is recommended that the effort be reduced by the use of assistance during this operation.
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
8
DO NOT adjust the safety overload valve.
8
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
2. INTRODUCTION
Steel chassis with welded castor supports and one-piece hydraulic unit. Fitted with overload valve, carry handle and finger cover for extra safety.
Suitable for the hobby user or as an emergency mobile jack. Includes one-piece pumping handle.
3. SPECIFICATION
Model no's............................................................ 1050CXHV
Capacity: ........................................................ 2tonne/2000kg
Length: ....................................................................... 450mm
Max. chassis height: .................................................. 126mm
Max. saddle height: .................................................... 330mm
Min. saddle height: ..................................................... 130mm
© Jack Sealey Limited

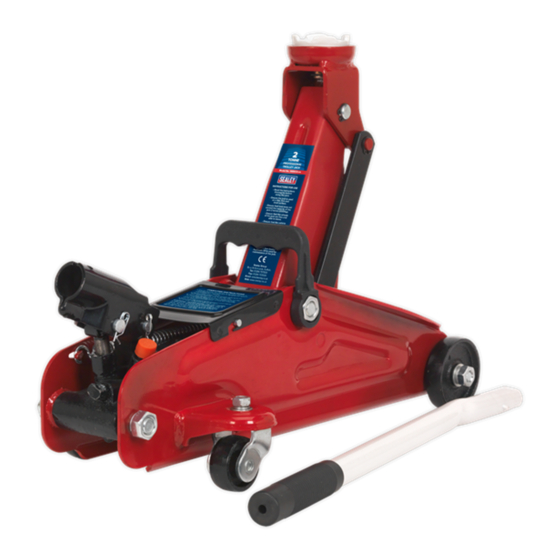

2TONNE SHORT CHASSIS TROLLEY JACK -
HI-VIS
1050CXHV
MODEL NO:
Original Language Version
TJL3
1 3 5
2 4 R
Use on h rd level floor
Chock
wheels
j ck c p city
Close
Lower
OR
Lift & twist
to lower
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
1050CXHV Issue:1 06/04/21
