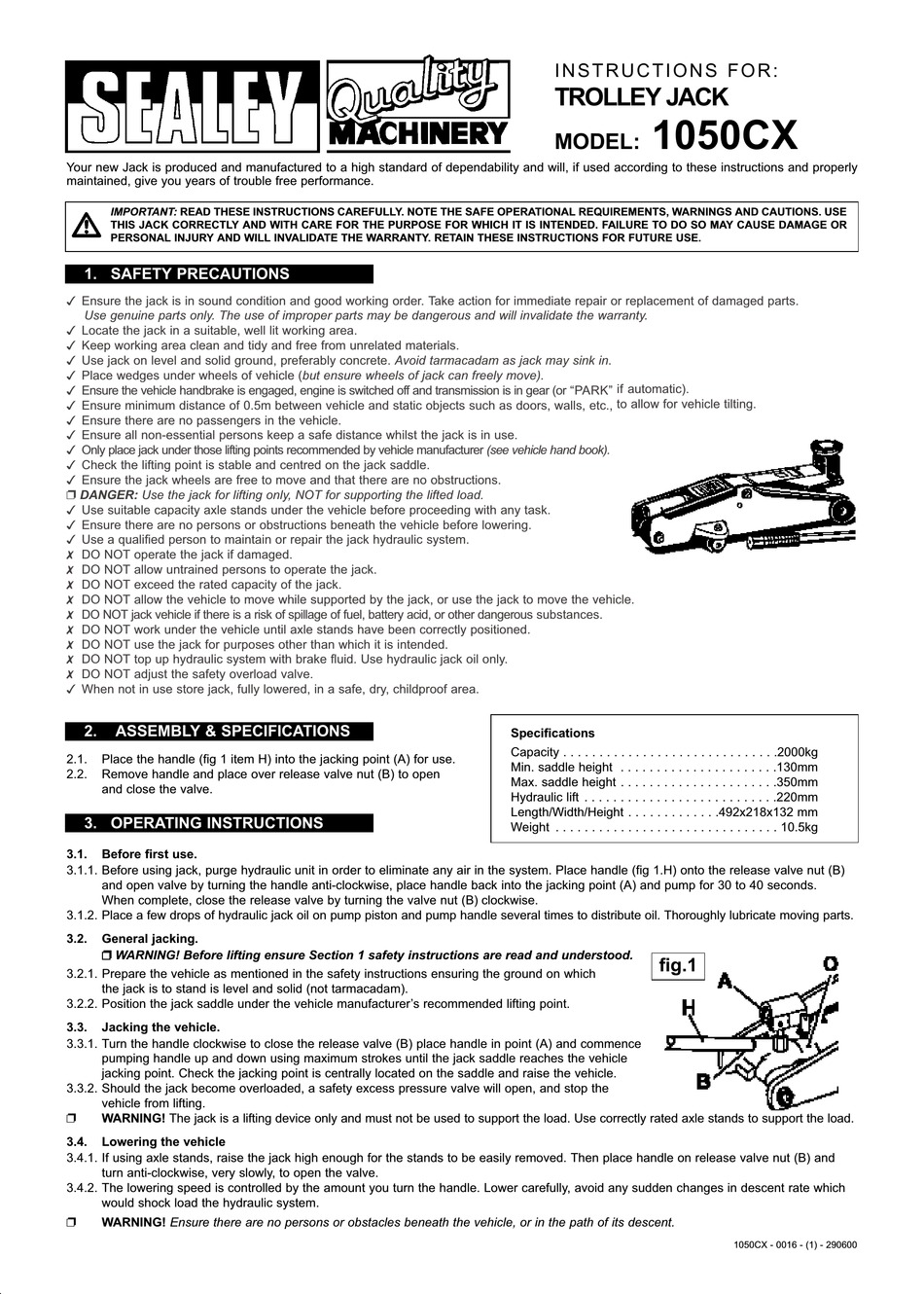

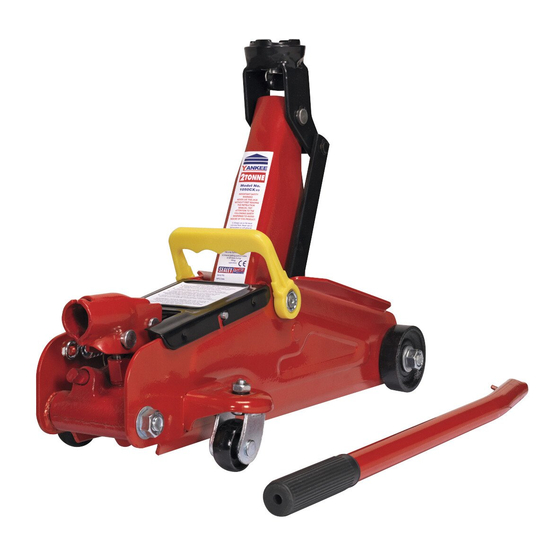

Sealey 1050CX Instructions

Your new Jack is produced and manufactured to a high standard of dependability and will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE
THIS JACK CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.
1. SAFETY PRECAUTIONS
! Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts.
Use genuine parts only. The use of improper parts may be dangerous and will invalidate the warranty.
! Locate the jack in a suitable, well lit working area.
! Keep working area clean and tidy and free from unrelated materials.
! Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
! Place wedges under wheels of vehicle (but ensure wheels of jack can freely move).
! Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or “PARK” if automatic).
! Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle tilting.
! Ensure there are no passengers in the vehicle.
! Ensure all non-essential persons keep a safe distance whilst the jack is in use.
! Only place jack under those lifting points recommended by vehicle manufacturer (see vehicle hand book).
! Check the lifting point is stable and centred on the jack saddle.
!Ensure the jack wheels are free to move and that there are no obstructions.
FDANGER: Use the jack for lifting only, NOT for supporting the lifted load.
! Use suitable capacity axle stands under the vehicle before proceeding with any task.
!Ensure there are no persons or obstructions beneath the vehicle before lowering.
! Use a qualified person to maintain or repair the jack hydraulic system.
%DO NOT operate the jack if damaged.
%DO NOT allow untrained persons to operate the jack.
%DO NOT exceed the rated capacity of the jack.
%DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
%DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
%DO NOT work under the vehicle until axle stands have been correctly positioned.
%DO NOT use the jack for purposes other than which it is intended.
%DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
%DO NOT adjust the safety overload valve.
!When not in use store jack, fully lowered, in a safe, dry, childproof area.
2. ASSEMBLY & SPECIFICATIONS
2.1. Place the handle (fig 1 item H) into the jacking point (A) for use.
2.2. Remove handle and place over release valve nut (B) to open
and close the valve.
3. OPERATING INSTRUCTIONS
3.1. Before first use.
3.1.1. Before using jack, purge hydraulic unit in order to eliminate any air in the system. Place handle (fig 1.H) onto the release valve nut (B)
and open valve by turning the handle anti-clockwise, place handle back into the jacking point (A) and pump for 30 to 40 seconds.
When complete, close the release valve by turning the valve nut (B) clockwise.
3.1.2. Place a few drops of hydraulic jack oil on pump piston and pump handle several times to distribute oil. Thoroughly lubricate moving parts.
3.2. General jacking.
F WARNING! Before lifting ensure Section 1 safety instructions are read and understood.
p
3.2.1. Prepare the vehicle as mentioned in the safety instructions ensuring the ground on which
the jack is to stand is level and solid (not tarmacadam).
3.2.2. Position the jack saddle under the vehicle manufacturer’s recommended lifting point.
3.3. Jacking the vehicle.
3.3.1. Turn the handle clockwise to close the release valve (B) place handle in point (A) and commence
pumping handle up and down using maximum strokes until the jack saddle reaches the vehicle
jacking point. Check the jacking point is centrally located on the saddle and raise the vehicle.
3.3.2. Should the jack become overloaded, a safety excess pressure valve will open, and stop the
vehicle from lifting.
F WARNING! The jack is a lifting device only and must not be used to support the load. Use correctly rated axle stands to support the load.
3.4. Lowering the vehicle
3.4.1. If using axle stands, raise the jack high enough for the stands to be easily removed. Then place handle on release valve nut (B) and
turn anti-clockwise, very slowly, to open the valve.
3.4.2. The lowering speed is controlled by the amount you turn the handle. Lower carefully, avoid any sudden changes in descent rate which
would shock load the hydraulic system.
F WARNING! Ensure there are no persons or obstacles beneath the vehicle, or in the path of its descent.
p
I N S T R U C T I O N S F O R :
TROLLEY JACK
1050CX
MODEL:
Specifications
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000kg
Min. saddle height . . . . . . . . . . . . . . . . . . . . . .130mm
Max. saddle height . . . . . . . . . . . . . . . . . . . . . .350mm
Hydraulic lift . . . . . . . . . . . . . . . . . . . . . . . . . . .220mm
Length/Width/Height . . . . . . . . . . . . .492x218x132 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5kg
fig.1
1050CX - 0016 - (1) - 290600
