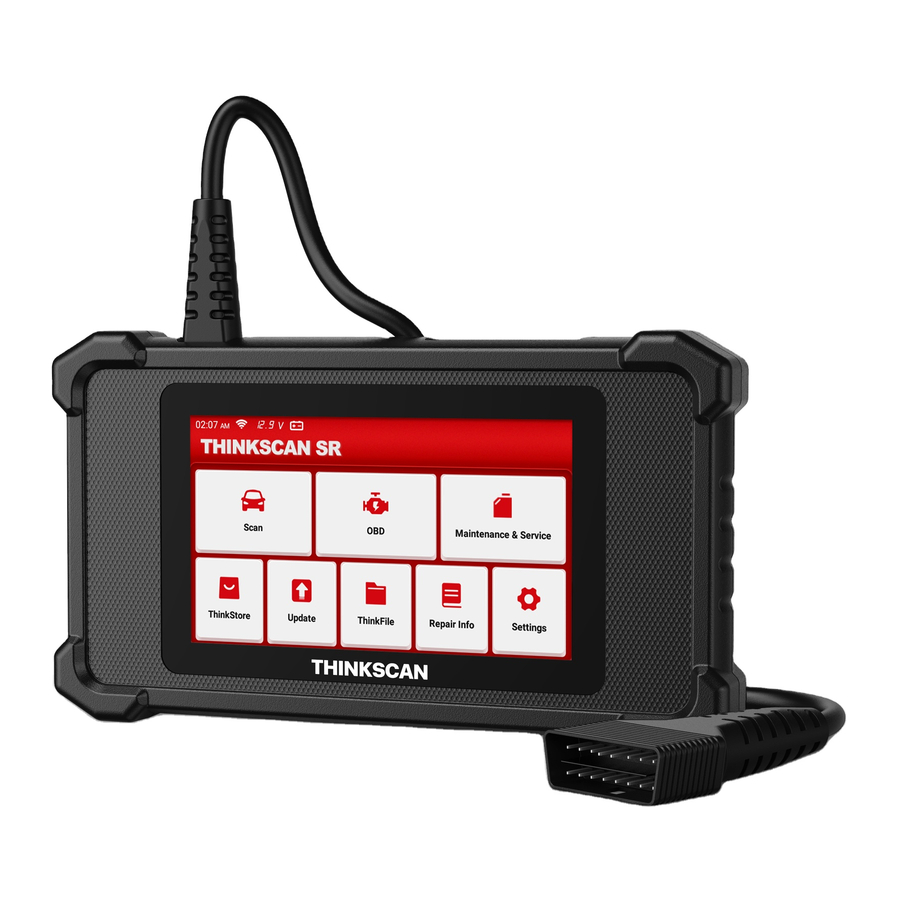

Thinkcar THINKSCAN SR - Scanner Quick Start Manual

Connect the THIINKSCAN SR with your vehicle through the OBDII port

Usually, the OBD port is located under the dashboard, above the pedal on the driver's side. The five locations shown in the picture are common OBDII port locations.

Turn on the THINKSCAN SR

After connecting with the car, the screen will be shown below.

Connect Wi-Fi

The system will automatically search all available Wi-Fi networks and you can choose the Wi-Fi needed. Notice the "Wi-Fi" must be set before use.

Functions Description

The THINKSCAN SR main unit has the following 8 functions:

1. Scan: This function serves to read & clear the DTC of the ECU memory of the tested system. Read and display real-time data and parameters of the car ECU.
2. OBD: Diagnosis of all problems related to the engine.codes, read data stream, read ECU information, etc.
3. Maintenance & Service: Supports the most common multiple maintenance and reset functions.
4. ThinkStore: To purchase Thinkcar products and softwares.
5. Update: This module allows you to update the diagnostic software & App and set frequently used software.
6. ThinkFile: It is used to record and establish the files of the diagnosed vehicles. The files are created based on the vehicle VIN and check time, including all diagnostic-related data such as diagnostic reports, data stream records and screenshots.
7. Repair Info: It includes 4 modules, a fault code data base, a table of vehicles able to be diagnosed, videos, a learning course.
8. Setting: Common system settings can be made here to modify and add information.

Download Diagnostics Software

You need to download the corresponding diagnostics software when first apply "All Systems Diagnostic" and "OBD Functions". And no need to download again when you use it next time.

You can do some basic set up on this page. Include Wi-Fi, screen brightness, language, time zone, and so on.

1. Order: Diagnostic software purchase records.
2. Feedback: You can to feedback the diagnostic software/app bugs to us for analysis and improvements.
3. Repair info: It includes 4 items, a fault code database, a cist of vehicles able to be diagnosed, videos, a learning course. The maintenance technician can quickly refer to the explanation of the fault codes, and understand all the vehicles that can be diagnosed through the table. The videos contain equipment usage, maintenance and diagnosis guides. The learning course demonstrates how tools are operated. These four functions help technicians quickly grasp the equipment use and improve diagnostic efficiently.
4. Upgrade: This module allows you to update the diagnostic software & App and set up the most used software. If you did not download the software in process of product registration or a pop-up message prompting you that some new software can be updated, you may use this option to download it or keep it synchronized with the latest version.
5. Screenshots: Turn on this switch to take a screen capture.
6. Screen floating window: Turn on this switch to record the screen operation video.
7. Network: Set the connectable Wi-Fi network.
8. Firmware upgrade:Used to update the firmware.
9. Language: Select the tool language from the languages displayed on the interface.
10. Time zone: Choose the time zone of the current location, then the system will automatically configure the time according to the time zone you chose.

FAQ

Here we list some common questions and answers related to this tool.

Q: Why does it have no responses when connected to a car computer?
A: Check whether the connection with the vehicle diagnostic socket is normal, whether the ignition switch is on, and whether the tool supports the car.

Q: Why does the system stop while reading the data stream?
A: This may be caused by loose diagnostic dongles. Please unplug the dongle and reconnect it firmly.

Q: Communication error with vehicle ECU?
A: Please confirm:

1. Whether diagnostic dongles are correctly connected.
2. Whether ignition switch is ON.
3. If all checks are normal, please send vehicle year, make, model and VIN number to us by Feedback function.

Q: Why does the host screen flash when the engine ignition starts?
A: It is normal and caused by electromagnetic interference.

Q: How to upgrade the system software?
A:

1. Start the tool and ensure a stable Internet connection.
2. Go to "Set up" -> "App Update", click "OTA" and then click "check version" to enter the system upgrade interface.
3. Complete the process by following the instructions on the screen step by step. It may take a few minutes. After successfully completing the upgrade, the tool will automatically restart and enter the main interface.

Q: How to use the points?
A: Points: Points can be earned by participating in events organized by THINKCAR, or by recommending others to purchase our products. Every 1 point deducts 1 USD when purchasing THINKCAR's products and services.
