Bloomy Lotus Bamboo - Diffuser Manual

Overview

Thank you for purchasing this product.
Please read the user manual carefully before use.

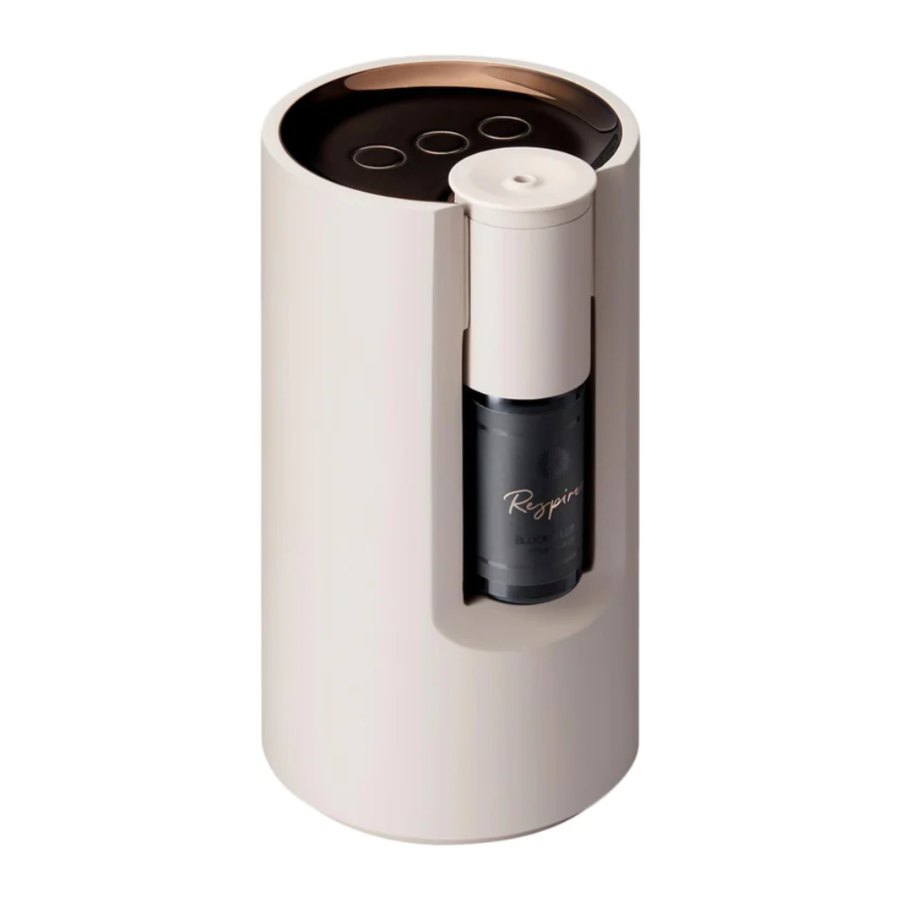

Main body

1. Body
2. On/Off Button
3. LED Indicator
4. Mist Output, Low / High
5. Timer, 1hr/ 2hrs/ 5hrs
6. Diffusing Hole
7. Nozzle
8. Fragrance Oil Bottle
9. Oil Pipe
10. Air Inlet
11. Nozzle Top Cover
12. USB Slot

13. Type-C USB
    *Power adapter not included

Operation Instructions

1. Pull up the nozzle and remove it from the main body. Hold the nozzle and rotate the bottle in clockwise to remove.

2. Fill up the oil into the orignial bottle or change your favourite essenital oil bottle. Hold the nozzle and rotate the bottle in anti-clockwise to secure.

3. Insert the nozzle (with bottle) to the main body. Press down the nozzle perfectly and ensure the nozzle locked in the slot.


4. Insert the type-c USB cable to the power adapter socket or a USB port.

5. Remove the sticker. Press the On/Off button to start the device and switch the mist output and timer.

6. Nebulizer will begin diffusing.


Note:

• For best result, we recommend to use 100% pure essential oil with this nebulizer. Artificial fragrance, flavor, or impurities might harm to the unit.
• Always unplug the product from the electrical socket when not in use.
• Do not remove the nozzle and moving the device during operation.
• Keep the nebulizer on a stable and flat surface. Carpet, cushions, or other uneven surfaces might affect the ventilation system.
• Use any 5ml, 10ml or 15ml of your favourite essential oil bottle or the default oil bottle to this nebulizer. You may cut the oil pipe to fit in different size of the bottle. (Make sure to cut from the flat part as the non-flat part is for oil absorption.)

Setting Instructions

On/Off (1 LED indicator)

• Press to turn on the device
• Default setting is low level output, 5 mins diffusing with 10 mins off intervals.
• Default timing is 1hour working time.

Mist output (2 LED indicator)

• Default setting is low level output, 5 mins diffusing with 10 mins off intervals.
• Press the mist output button once to switch to high level output, 5mins diffusing with 5 mins off intervals.
• Press the mist output button twice to switch back low level output.

Timer (3 LED indicator)

• Default timing is 1hour working time.
• Press the timer button once to switch to 2hours working time.
• Press the timer button twice to switch to 5hours working time.
• Press the time button third to switch back 1hour working time.

Clean & maintenance

1. Fill the rubbing alcohol to the empty bottle.

   *The rubbing alcohol should be under 75% concentration*

2. Plug in and turn on the nebulizer for 5mins.


3. Remove the bottle, pull up to take out the nozzle top cover.


4. Use cotton swap to dip the rubbing alcohol, brush softly to clean the nozzle.


Note:

• Never use the alcohol with over 75% concentration, it might hurt the machine.
• Alcohol is flammable, keep the indoor air circulation to prevent fire occur.
• For best result, clean the nozzle 1-2times per week.
• Clean the nozzle and change the oil pipe before change any other of the essential oil.
• Strength of aroma will vary depending on settings and different types of oil. Find the settings that fit your needs.
• Use only pure natural essential oils to prevent damaging the diffuser components.

Make sure do not tilt down the nozzle or device as the oil will leak and might harm the device.

Product Dimensions

• Product Name: Bamboo
• Model code: BL P -002
• Product Size: Ø80mm(L) x 84.2mm(W) x 155.6mm(H)
• Material: PP + Aluminum
• Power input: DC5V / 2.5W
• Manufacturer: Bloomy Lotus LLC
• Main unit weight: 240.5g
• Coverage Area: Up to 80m²
• Environment: Indoor
• Run Time:1 /2 /5 hours
• Design: USA
  Made in China

Troubleshooting

If you experienced unsatisfactory operations, please follow our troubleshooting guidelines listed below.

Videos

Bloomy Lotus Bamboo - How to Use Video

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bloomy Lotus Bamboo - Diffuser Manual
