READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for
future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or
operate the stove or accessories.
INSTALLATION
WARNING: BLOWER MUST BE DISCONNECTED FROM POWER SUPPLY BEFORE INSTALLING. IT IS
ONLY INTENDED FOR USE WITH THIS STOVE.
1. Using a 5/16" open end or socket wrench, remove the 4
screws holding the rear panel.
2. Mount the blower assembly to the mounting box with the 4
screws removed in Step 1. See Figure 1.
OPERATION
1. Rotate knob to the right to turn on the blower.
2. Continue to rotate the knob to the right to slow the motor
speed; rotate the knob to the left to increase the motor
speed.
3. Rotate the knob all the way to the left to turn off the blower.
ELECTRICAL CONSIDERATIONS
The Blower Motor requires 120V, 60 Hz AC and will draw 0.26 amps of current. If you plan to ever use the
blower, the rear of the stove will need to be
of an electrical outlet. Lay the power cord out such that it will not come into contact with the stove's surface.
Keep power cord at least 12 inches from stove surfaces. The SUPPLY CORD cannot be replaced. If the cord is
damaged, the appliance should be scrapped.
BLOWER CLEANING
To remove debris such as dust and dirt, lightly vacuum the outside of the enclosure of the 120 Volt / 60 Hz /
0.26 Amp blower. Be sure that the motor is unplugged before vacuuming, or before preforming any other stove
maintenance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual for correct installation and operational procedures. For assistance or additional
information consult a qualified installer, service agency, or contact the manufacturer at 1-800-251-0001.
INSTALLATION INSTRUCTIONS
within power cord

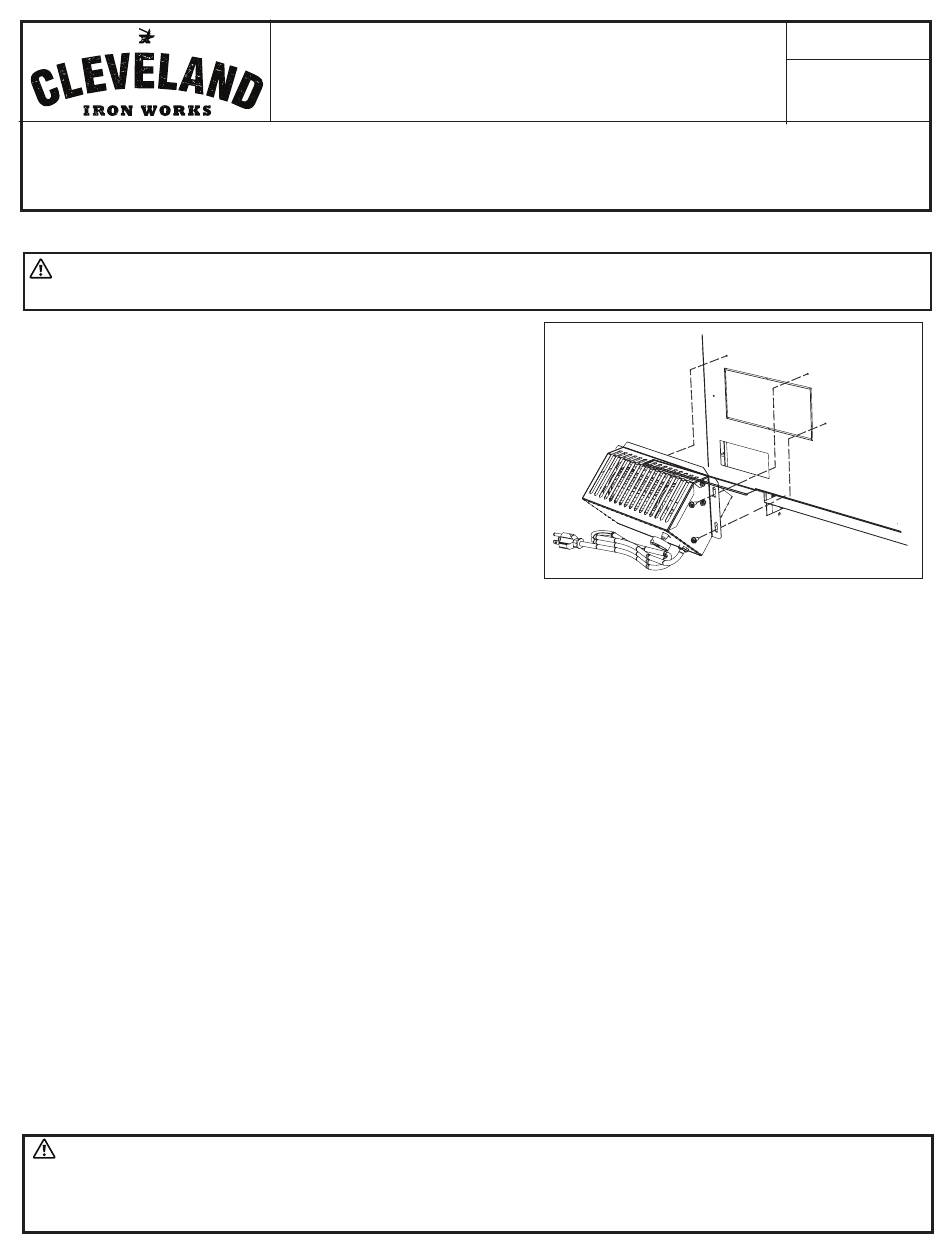

Figure 1
distance, which is roughly 75 inches (190 cm)
Model #HB50
Wood Stove
Blower
66776
