IOGear Dock Pro GUD4C8K3 Installation Manual

Quick Start Guide
Dock Pro USB4 8K Triple View
™
Docking Station
GUD4C8K3
PART NO. Q1654
www.iogear.com
Package Contents
1 x GUD4C8K3
1 x 0.8m USB Type-C to C cable (USB4)
™
1 x Power Adapter
System Requirements
Host device requirements
• USB4 or Thunderbolt 4 host required for max bandwidth (40 Gbps)
• USB-C (DP alt mode) and Thunderbolt 3 hosts are compatible at lower
bandwidth
OS requirements
• Windows 10,11
®
• macOS High Sierra 10.13 or later
®

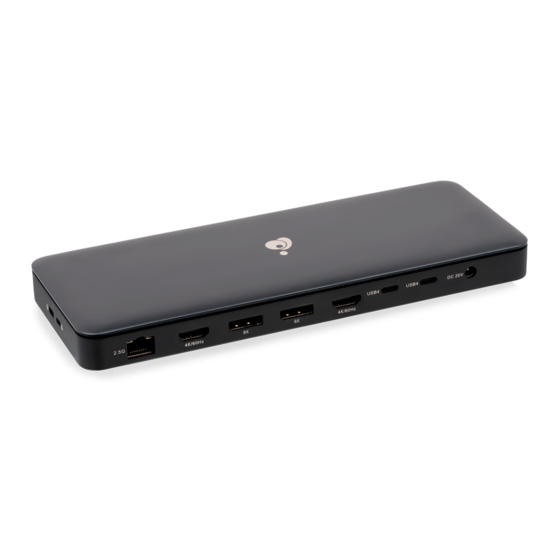

Overview
A. USB-C 3.1 Gen 2 (10 Gbps) PD 30W
B. 2x USB-A 3.1 Gen 2 (10 Gbps)
C. USB-A 3.1 port Gen 1 (5 Gbps)
D. SD/Micro SD (Max 312 Mbps)
E. 3.5mm combo audio port
F. Power button
G. USB4 host port
H. RJ45 10/100/1000/2.5G
I. Stream 3: DisplayPort up to 8K@30Hz or HDMI up to 4K@60Hz
J. Stream 2: DisplayPort up to 8K@30Hz
K. Stream 1: HDMI up to 4K@60Hz
L. 2x USB4 full feature port up to 8K@30Hz
M. 20V power port
N. Anti-theft locks
1
1 x Quick Start Guide
1 x Warranty Card
