LG LSCE305ST Owner's Manual

LG LSCE305ST Owner's Manual

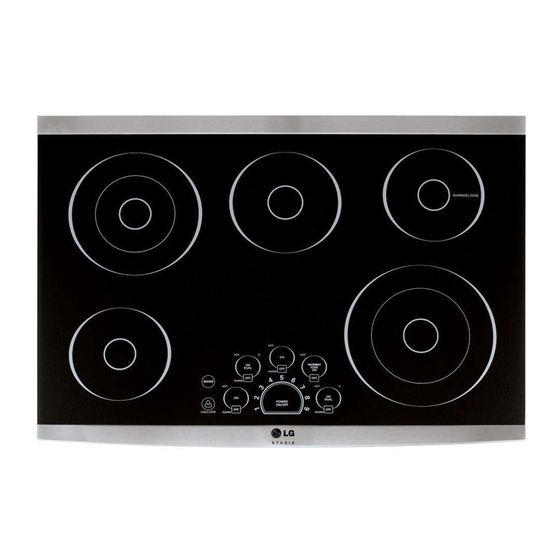

Ceramic-glass radiant cooktop
Hide thumbs Also See for LSCE305ST:

Advertisement

Quick Links

Download this manual
Scan to see the online manual.
OWNER'S MANUAL
CERAMIC-GLASS
RADIANT COOKTOP
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
LSCE305ST LSCE365ST
www.lg.com
MFL54169102
Copyright © 2010-2023 LG Electronics Inc. All Rights Reserved.
Rev.18_062123

Advertisement

loading

Related Manuals for LG LSCE305ST

Summary of Contents for LG LSCE305ST

  • Page 1 Scan to see the online manual. OWNER'S MANUAL CERAMIC-GLASS RADIANT COOKTOP Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH LSCE305ST LSCE365ST www.lg.com MFL54169102 Copyright © 2010-2023 LG Electronics Inc. All Rights Reserved. Rev.18_062123...
  • Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE WARNING STATEMENTS CAUTION STATEMENTS PRODUCT OVERVIEW Product Features INSTALLATION Before Installing Installing the Cooktop 18 OPERATION Cookware Control Panel 25 MAINTENANCE Care and Cleaning 27 TROUBLESHOOTING Before Calling for Service 29 LIMITED WARRANTY...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS • Never wear loose fitting or hanging garments while using this appliance. • Always turn off all controls when cooking is completed. • Do not use water or flour on grease fires. Smother the fire with a pan lid, or use baking soda or a dry chemical or foam-type extinguisher.
  • Page 5 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If your appliance malfunctions or fractures, switch off all cooking zones, and contact an LG Customer Information Center for service.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS CAUTION STATEMENTS CAUTION • To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Operation • This appliance may only be used for normal cooking and frying in the home. It is not designed for commercial or industrial purposes.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS • Keep meltable objects or materials away from the ceramic glass surface, for example, plastic utensils, aluminum foil, or cooking wraps. If any materials or foodstuffs melt on the ceramic-glass surface, these should be cleaned up immediately. •...
  • Page 8 Parts and Features Triple Cooking Zone 12"/9"/6" (305 mm/229 Throughout this manual, features and appearance mm/152 mm) may vary from your model. Warming Zone 6" (152 mm) LSCE305ST Dual Cooking Zone 9″/6″ (229 mm/152 mm) Control Panel Accessories Cleaner Parts and Features Cooktop Cleaner (1 ea) Single Cooking Zone 6"...
  • Page 9 INSTALLATION INSTALLATION Before Installing Tools Needed Before You Begin Installation and service must be performed by a qualified installer. Important: Save these instructions for local electrical inspector’s use. Read and save these instructions for future reference. Read these instructions completely and carefully. CAUTION •...
  • Page 10 Be sure the bottle of cleaner and conditioner warranty registration. packed in the literature bag is left where the user can find it easily. It is important that the Technical Specifications Models LSCE305ST Description Radiant Cooktop Connection 240/208 VAC 60 Hz., 32.1 A/27.9 A voltage...
  • Page 11 INSTALLATION Models LSCE365ST Position Size Power Front Left 7" (178 mm) 1800 W (Bridge) Front Right 9"/6" (229 mm/152 mm) 3000 W/1400 W Cooking Zones Rear Left 7″ (178 mm) 1800 W+800 W (Bridge) Rear Right 6" (152 mm) 100 W (Warm) 12"/9"/6"...
  • Page 12 Do not obstruct these areas. 4″ X 8″ (102 mm x 203 mm) opening to route armored cable if panel is present. Approximate location of junction box Dimension/Clearance LSCE305ST LSCE365ST Width of upper plate 30 27/32" (783 mm) 36 11/16" (932 mm) Depth of upper plate 21 23/32"...
  • Page 13 INSTALLATION Dimension/Clearance LSCE305ST LSCE365ST Distance from side edge of cutout to side of counter 13/16" (20 mm) Distance from edge of cooktop to nearest 3 3/4" (95 mm) combustible wall (either side of unit) Height below cutout 5 23/32" (145 mm) (Empty space is needed underneath the cooktop for installation purposes.)
  • Page 14 14 INSTALLATION sheathed cable. The flexible armored cable WARNING extending from this appliance should be connected directly to the grounded junction • The electrical power to the cooktop must be shut box. The junction box should be located as off while line connections are being made. shown in Dimensions and Clearances with Failure to do so could result in serious injury or as much slack as possible remaining in the...
  • Page 15 INSTALLATION Where Local Codes Permit Connecting If Cooktop is Used in a New Branch the Appliance-Grounding Conductor to Circuit Installation (1996 NEC), Mobile the Neutral (White) Wire Home, Recreational Vehicle, or where Local Codes Do Not Permit Grounding Observe all governing codes and local ordinances. to the Neutral (White) Wire Disconnect the power supply.
  • Page 16 Bolt any wires. Retainer Brackets Type A Screw Alternative installation LSCE305ST NOTE • Do not use caulking compound. The cooktop must be removable, should service be required. LSCE365ST Attach the retainer brackets to the bottom of the cooktop;...
  • Page 17 INSTALLATION Final Check Perform a final operational check of the cooktop, making sure the cooktop powers on properly and that each cooking zone operates correctly. Refer to the Operating Instructions in this guide for details.
  • Page 18 18 OPERATION OPERATION Cookware Cookware should always be lifted over the ceramic cooktop surface to prevent scratching. Over time, sliding ANY type of cookware over the ceramic Selecting Cookware cooktop may alter the overall appearance of the cooktop. Eventually, the buildup of scratches can Pots and Pans make cleaning the surface difficult and degrade the overall appearance of the cooktop.
  • Page 19 OPERATION • The base of the pot should be the same size as the element. • Using a pressure cooker shortens cooking times by up to 50%.
  • Page 20 Control Panel Features Locations of Surface Elements and Controls The surface burner elements are positioned in the same locations on the cooktop and the control panel for ease of use. LSCE305ST LSCE365ST LSCE305ST LSCE365ST WARM: Lowers the selected active element to the lowest setting.
  • Page 21 OPERATION protect the ceramic surface and make future 10 seconds with the element power settings. cleanup easier. Otherwise, the element will turn off for safety. CAUTION Setting the Power Level • Never use abrasive scrubbing pads or cleaners. The power level for the selected element can be They can cause permanent damage to the set from 1 to 9.
  • Page 22 22 OPERATION Warm WARNING The cooktop has a WARM setting feature that can • Your cooktop has a residual heat indicator for be used on all elements except the warming zone each element. This indicator will warn that this element. area has been used and is still giving off enough To activate: heat to cause burns.
  • Page 23 OPERATION • Do not use plastic wrap to cover foods. Plastic may melt onto the cooktop surface and be very difficult to clean. • Use only cookware and dishes recommended as safe for cooktop use. • Always use potholders when removing food from the warming zone as cookware and plates will be hot.
  • Page 24 24 OPERATION Setting Child Lock The cooktop must be off to set the CHILD LOCK function. If it is not off, press and hold POWER ON/OFF for approximately 2 seconds. The indicator above the POWER ON/OFF control turns off. Press the ON control again to activate the entire triple element.
  • Page 25 MAINTENANCE MAINTENANCE Care and Cleaning Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue. Make sure that the electrical power is off and all surfaces are cool before cleaning any part of the NOTE cooktop.
  • Page 26 NOTE on the cooktop surface. Always clean the cooktop surface before cooking. • For additional product information, visit our website at www.lg.com NOTE Metal Marks and Scratches • Any damage or failure of the product resulting from the items below may not be covered under the LIMITED WARRANTY.
  • Page 27 TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of a defect in workmanship or materials. Parts and Features Problem Possible Cause &...
  • Page 28 28 TROUBLESHOOTING Control Panel Problem Possible Cause & Solution There is a fault with the thermistor or micom. Flashing Flashing • Turn the cooktop off using the POWER ON/OFF. Turn cooktop back on Flashing using the POWER ON/OFF. Food spill/soil on the control panel Flashing •...
  • Page 29 Should your LG Radiant Cooktop (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States including U.S.
  • Page 30 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
  • Page 31 LIMITED WARRANTY the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration. Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below.
  • Page 32 32 LIMITED WARRANTY You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty.
  • Page 33 Memo...
  • Page 34 34 Memo...
  • Page 35 Memo...
  • Page 36 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
