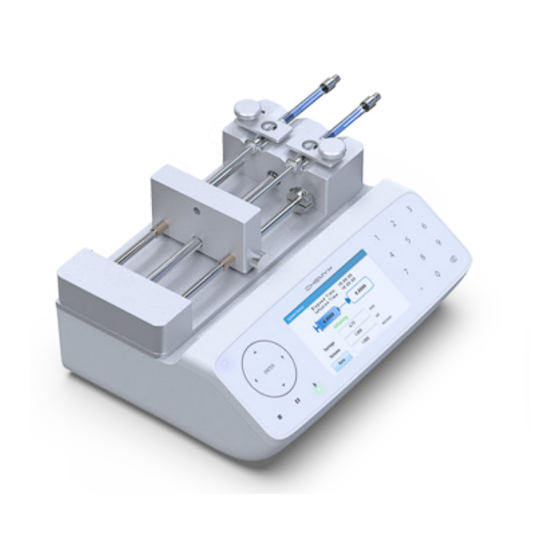

Chemyx FUSION X Series User Manual
  1. Manuals
  2. Brands
  3. Chemyx Manuals
  4. Medical Equipment
  5. FUSION X Series
  6. User manual

Chemyx FUSION X Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
FUSION X SERIES
USER MANUAL FOR NEW FUSION 100-X & 200-X
INTELLECTUAL PROPERTY
All Intellectual Properties, as defined below, owned by or which is otherwise the property of Chemyx Inc. or its suppliers relating to the Chemyx syringe pumps, including but not limited to, accessories,
parts or software relating thereto (Chemyx Syringe Pumps), are proprietary to federal and state laws, and international treaty provisions. Intellectual Property includes but is not limited to, inventions
(patentable or unpatentable), patents, trade secrets, copyrights, software, firmware, computer programs, and related documentation and other works of authorship. Moreover, you agree that you will
not, and will not attempt to, modify, prepare derivative works of, reverse engineer, disassemble the Chemyx syringe pumps, decompile or otherwise attempt to create source code from the related
software/firmware. No title to or ownership in Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with Chemyx and its suppliers.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUSION X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Chemyx FUSION X Series

Summary of Contents for Chemyx FUSION X Series

  • Page 1 INTELLECTUAL PROPERTY All Intellectual Properties, as defined below, owned by or which is otherwise the property of Chemyx Inc. or its suppliers relating to the Chemyx syringe pumps, including but not limited to, accessories, parts or software relating thereto (Chemyx Syringe Pumps), are proprietary to federal and state laws, and international treaty provisions. Intellectual Property includes but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, firmware, computer programs, and related documentation and other works of authorship.
  • Page 2 Table Of Contents Geberal Description Safety Information Warranty and Repair Information Product Overview Principle of Operation Controlled Elements Controls Fusion 200-X Specific Componets Specifications Pump Setup Loading a Syringe Adjusting the Safety Nut Pump Operation Navigating Between Screens Mode Selection Screen Syringe Selection Volume Infusion/Withdrawal (Fusion 200-X only)
  • Page 3 Touchscreen Toggle Baud Rate Motor Power` LCD Power-Off Time Pump Control by Computer Cable Requirements and connecting COM Port Settings Pump Commands Chemyx Pump Controller Programs Pump Maintenance Lubricating the Pump Calibrations Pump Accessories Footswitch Connecting the Footswitch Using the Footswitch...
  • Page 4 Please read the following safety precautions to ensure personal safety and operational longevity of the Chemyx syringe pump. Chemyx is not responsible for the equipment if used in a manner not specified by the manufacturer; warranty coverage provided by the equipment may be dropped as a result.
  • Page 5 Warranty & Repair Information Warranty Information Chemyx provides a two-year limited warranty from the shipment date for its pumps against defects in materials and workmanship. Chemyx will repair any product that proves defective during its stated warranty period. The foregoing warranty will not apply to damage resulting from: Improper or inadequate maintenance or operation.
  • Page 6 Thoroughly durable both inside and out, the Chemyx Fusion syringe pumps are designed to provide years of constant and reliable service.
  • Page 7 Controlled Elements Syringe Clamp Pusher Block Syringe Channels Guide Rods Lead Screw Fusion 100-X pump components Safety Collar Syringe Holder Block Block Release Button All Fusion Series pumps have a single lead screw through which the pusher block is threaded. The pusher block moves when the lead screw turns.
  • Page 8 Controls Front Panel of Pump Navigation Keypad Pump Controls LCD Touchscreen Numeric Keypad The Fusion Series uses a full glas LCD touchscreen with an intuitive graphical user interface (GUI) for setting up detailed pump run methods. Buttons and entry fields within the GUI are all selectable using the touchscreen. As a resistive, LCD touchscreen, the interface can be operated with any object, not just the touch of a fingertip.
  • Page 9 Option to add a 11 syringe rack Parameter Setting Option to choose time or rate Humidity 20% to 80% RH, non-condensing Installation Category Regulatory Compliance CE, RoHS, REACH, ETL For More Information visit chemyx.com Chemyx Syringe Pumps are not for human use...
  • Page 10 Option to add a 11 syringe rack Parameter Setting Option to choose time or rate Humidity 20% to 80% RH, non-condensing Installation Category Regulatory Compliance CE, RoHS, REACH, ETL For More Information visit chemyx.com Chemyx Syringe Pumps are not for human use...
  • Page 11 The Fusion series can accommodate up to two syringes in the Fusion 100-X and 200 X models, while the Fusion 400 can house up to four syringes. The Fusion 200-X can be expanded to 10 channels using the Chemyx 10-Channel Syringe Rack accessory.
  • Page 12 Adjusting the Safety Nut The Fusion series of pumps can generate a significant amount of linear force. While this is extremely useful for dispensing viscous fluids at higher flow rates, the higher linear force of the Fusion series can also potentially damage the syringes in use.
  • Page 13 Pump Operation Operating Interface Limits for selected fields Selected Fields Unselected Field The LCD screen displays a graphical user interface (GUI) from which all the pump settings and run parameters are entered. Whenever an item is currently selected, the color scheme of the element typically turns to a darker shade of the color. For example, the light blue buttons turn dark blue when selected, and the white background surrounding an unselected editable text field turns blue when the field is selected and available for editing.
  • Page 14 Mode Selection Screen The Mode Selection screen is the top level menu for the Fusion series pumps. This screen allows users to select the Basic or Multi-Step modes, load a previously saved method, and adjust system settings or power settings. The Mode Selection screen consists of two screens.
  • Page 15 Syringe Selection For every application, the first required step for setup is to select the inner diameter (ID) of the syringe(s) being used. This value is important for the syringe pump to accurately calculate the transfer rate and the total transferred volume for the liquid in the syringe.
  • Page 16 Volume The Volume field represents the total volume of liquid that the pump will transfer (infusion or withdrawal) before stopping. The amount of time that the pump will run with the set target volume can be determined by dividing the volume by the flow rate. The value entered can be any integer or decimal within the limits for the syringe.
  • Page 17 Additionally, high flow rates can exert tremendous pressure within a syringe that may cause glass or plastic syringes to burst. In the case of high-pressure experiments, users should consider using Chemyx Stainless-Steel Syringes and the high-pressure Chemyx Nexus 6000 pump.
  • Page 18 Options The Fusion 200-X is capable of both infusion and withdrawal. On Fusion 200-X systems, an Infusion/Withdrawal toggle button should appear to the right of the Volume field. The text and arrow direction on the button indicates the mode that is currently set and direction that the pusher block will move upon starting the run.
  • Page 19 Additionally, high flow rates can exert tremendous pressure within a syringe that may cause glass or plastic syringes to burst. In the case of high-pressure experiments, users should consider using Chemyx Stainless-Steel Syringes and the high-pressure Chemyx Nexus 6000 pump.
  • Page 20 Multi-Step Mode Multi-Step Mode is used for more advanced applications that may require numerous steps, multiple different volume and rate settings, step looping, or ramping rates. The Multi-Step Mode screen can be reached by tapping on the Multi-Step icon on the Mode Selection screen. The pump can only be started in Multi-Step Mode when the Multi-Step Mode screen is showing.
  • Page 21 Total Steps The Total Steps field determines how many steps will occur in the method. Each step has independent values for Volume, Rate, Delay, and Infusion/Withdrawal. Upon entering the number of steps, the list on the left of the screen will update to show all of the steps.
  • Page 22 Additionally, high flow rates can exert tremendous pressure within a syringe that may cause glass or plastic syringes to burst. In the case of high-pressure experiments, users should consider using Chemyx Stainless-Steel Syringes and the high-pressure Chemyx Nexus 6000 pump.
  • Page 23 Start-Time Delay The Delay field represents the amount of time (in minutes and seconds) to delay starting the pump after the current step begins. When entering this value with the numeric keypad, the decimal key is used to indicate the separation between minutes and seconds.
  • Page 24 Pump Control The pump’s actions are controlled by the Stop, Pause, and Start keys on the front. In order to start a run, the screen should be showing either the Basic Mode (for basic runs) or Multi-Step Mode (for multi-step runs) main screens. Pressing the Start key in either other these screens will start a run with the currently set parameters.
  • Page 25 Run Status Basic Mode System Status screen The System Status screen for Basic Mode highlights the current activity of the pump during a run. The Elapsed Time field indicates how much time has passed since the pump has started physically running, not including any start-time delay.
  • Page 26 Load Run The Load Run screen allows users to recall Basic Mode methods that were saved in the Options screen. The Load Run screen can be reached by tapping on the Load folder icon on the Mode Selection screen. The left side of the screen shows a list of all the saved methods (a maximum of 20).
  • Page 27 Power Settings Power Settings screen The Power Settings screen can be reached by tapping on the Power icon on the Mode Selection screen. Motor Power The Fusion Series pumps can generate up to a maximum of 85 lbs (55 lbs for the Fusion 100-X) of linear force. Some syringes made of more fragile materials may not be able to withstand the full linear force of the pump.
  • Page 28 Pump Control by Computer Two types of connections are available for external computer control: DB9 and USB. The cables for each are available for purchase through Chemyx online store. DB9 Serial Cable (Male-to-Female) USB-A to USB-B cable For the DB9 serial connection, a Male-to-Female DB9 cable must be used. Do not use any “null modem,” “crossover”, or “crossed- over”...
  • Page 29 COM Port Settings Regardless of the operating system being used, the terminal program controlling the serial connection should use the following connection settings: 9600, 38400, 14400, 57600, Baud Rate 19200 and 115200. Data Bits Parity None Stop Bits Flow Control None The baud rate setting for the serial connection must match the baud rate set in the pump settings GUI (See Baud Rate in System Settings).
  • Page 30 Regardless of the operating system being used, the terminal program controlling the serial connection should use the following connection settings: Command Description help Displays a list of available commands. Starts the pump with the currently set parameters. The parameters that will run depend upon start which mode (Basic Mode or Multi-Step Mode) the pump touchscreen is showing.
  • Page 31 Command Description Sets the transfer volume. The pump will run until the volume infused or withdrawn equals this volume. This command also sets whether the pump is infusing or withdrawing (Fusion 200-X only) and the number of steps used in Multi-Step Mode. X must be an integer or decimal (up to five decimal places) within the volume limits for the syringe (See read limit parameter command).
  • Page 32 Command Description Sets the transfer rate for infusion/withdrawal. X must be an integer or decimal (up to five decimal places) within the rate limits for the syringe (See read limit parameter command). For Basic Mode, only one value is required. Example set rate 1.0 To set rates in Multi-Step Mode, the pump must be manually switched to Multi-Step...
  • Page 33 Command Description Sets the start time delay (in minutes) prior to each step of a pump run. Upon starting the a step, the pump will wait until the delay time elapses before starting to transfer volume. X must be an integer or decimal (up to five decimal places) within the rate limits for the syringe (See read limit parameter command).
  • Page 34 Command Description Returns the current status of the pump. The returned integer correlates to the status of the pump. 0: Pump stopped 1: Pump running status 2: Pump paused 3: Pump delayed 4: Pump stalled Returns: integer that represents the current status of the pump. Sets multiple parameters in one command (Basic Mode only).
  • Page 35 Chemyx Pump Controller Programs In addition to the manual control of the pumps through a terminal, Chemyx provides pump controller programs as an unsupported open-source applications written in Python, a LabVIEW package, and a MATLAB package. More information on...
  • Page 36 Although the pump is highly accurate, syringes of different materials can attribute significant volume errors. Typically, these errors can range from 1% for glass syringes to 5% for plastic syringes. Chemyx is not responsible for errors generated from syringes.
  • Page 37 Pump Accessories Footswitch The Chemyx Footswitch provides users the ability to start, pause, or stop the pump from a short distance with the tap of a foot. Footswitch The Chemyx Footswitch for Fusion Series pumps has a USB-B cable that plugs into the TTL port on the back of the pump.
  • Page 38 Accessories Item Description Part Number Footswitch (w/ USB-B connection cable) 50002 DB9 Serial Cable (Male-to-Female) 50007 USB Serial Cable (USB-B-to-USB-A) 50017 Stainless Steel Syringes Item Description Part Number Stainless-Steel Syringe (6 mL) Stainless-Steel Syringe (20 mL) SS20 Stainless-Steel Syringe (50 mL) SS50 O-Ring Replacement 10-pack (6 mL) O-Ring Replacement 10-pack (20 mL)
  • Page 39 Appendices Syringe Volume/Inner Diameter Reference Chemyx Stainless Steel Hamilton Glass Size Diameter Inner | Outer Size Diameter 6.00 mL 9.5 mm inner | 13mm outer 0.50 μL 0.10 mm 20.00 mL 19.1 mm inner | 23 mm outer 1.00 μL 0.15 mm...
  • Page 40 JMC Air-Tite Plastic Norm-Ject Plastic Size Diameter Size Diameter 1.00 mL 4.66 mm 1.00 mL 4.70 mm 2.00 mL 6.90 mm 2.50 mL 9.70 mm 2.50 mL 9.10 mm 5.00 mL 12.48 mm 5.00 mL 12.62 mm 10.00 mL 15.89 mm 10.00 mL 14.34 mm 20.00 mL...
  • Page 41 SGE Glass Terumo Japan Size Diameter Size Diameter 25.00 μL 0.73 mm 1.00 mL 4.73 mm 50.00 μL 1.03 mm 1.00 mL 6.50 mm 100.00 μL 1.46 mm 3.00 mL 8.65 mm 250.00 μL 2.30 mm 5.00 mL 13.00 mm 500.00 μL 3.26 mm 10.00 mL...
  • Page 42 Unimetrics Size Diameter 10.00 μL 0.46 mm 25.00 μL 0.73 mm 50.00 μL 1.03 mm 100.00 μL 1.46 mm 250.00 μL 2.30 mm 500.00 μL 3.26 mm 1000.00 μL 4.61 mm Kendall Monoject Plastic Size Diameter 1.00 mL 4.65 mm 3.00 mL 8.94 mm 6.00 mL...
  • Page 43 10905 Cash Rd. Stafford, TX 77477 Webpage: www.chemyx.com Contact Us: info@chemyx.com Phone: +1 281-277-5499 Fax: +1 281-277-0045 Office Hours: Monday–Friday, 8:30 am – 5 pm (Central Time) For more articles and tutorial videos, visit: www.chemyx.com/support Follow Us LinkedIn: www.linkedin.com/company/chemyx Twitter: www.twitter.com/chemyxinc...
