Ground Zero GZCF 7104XSPL Owner's Manual

Coaxial loudspeakers

Advertisement

Quick Links

COMPETITION SERIES
Coaxial Loudspeakers

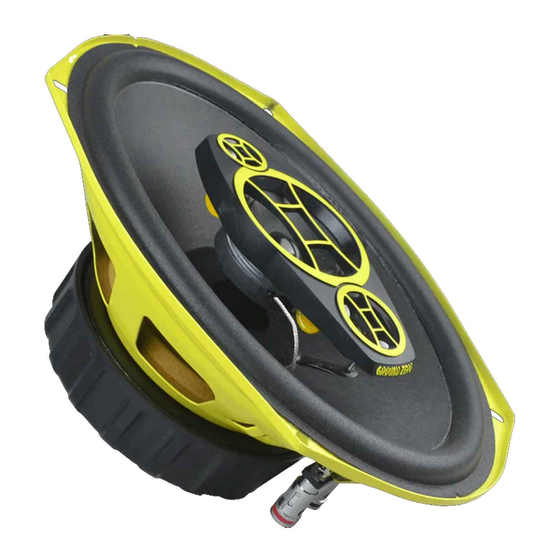

GZCF 7104XSPL
Anleitung / Owner´s manual
(AWV2.1)
Spezifikationen / Specifications
• Hochleistungs-4-Wege Koaxiallautsprecher
• Hoher Wirkungsgrad (SPL)
• Faserverstärkte, wasserabweisende Papiermembrane
• 38 mm Kupferbeschichtete Aluminiumdraht-Schwingspule
• Resonanzarmer Stahlkorb
• 13 mm PEI Hochtöner mit Überlastschutz
• 50 mm Papiermembran-Dipol-Mitteltöner mit Überlastschutz
• 13 mm Piezo Super-Hochtöner
• Hexagon Schutzgitter
o High-power 4-way coaxial loudspeaker
o High efficiency (SPL)
o Fiber reinforced water repellant paper cone
o 1,5" Copper-clad aluminum wire voice coil
o Resonance free steel basket
o 0.51" PEI tweeter with overload protection
o 2" paper cone dipole midrange with overload protection
o 0.51" piezoelectric super tweeter
o Hexagon protection grill
COMPETITION SERIES

Advertisement

loading

Summary of Contents for Ground Zero GZCF 7104XSPL

  • Page 1 COMPETITION SERIES Coaxial Loudspeakers GZCF 7104XSPL Anleitung / Owner´s manual (AWV2.1) Spezifikationen / Specifications • Hochleistungs-4-Wege Koaxiallautsprecher • Hoher Wirkungsgrad (SPL) • Faserverstärkte, wasserabweisende Papiermembrane • 38 mm Kupferbeschichtete Aluminiumdraht-Schwingspule • Resonanzarmer Stahlkorb • 13 mm PEI Hochtöner mit Überlastschutz •...
  • Page 2 130 dB or more. Extreme levels can also hinder the perception of important traffic noises and distract from what is happening on the road. Ground Zero GmbH and its sales partners expressly assume no responsibility for hearing damage, physical damage or any damage to property or consequential damage resulting from improper or careless use or improper installation of its products.
  • Page 3 Einbautiefe / 86 mm / 3.39” Verified with KLIPPEL ® GROUND ZERO is using the worldwide accepted KLIPPEL R&D Analyzer KA3 measurement system ® for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
  • Page 4 Some music styles require higher levels while others prefer the soft tones. GROUND ZERO considers all the different wishes of customers during the development of new products. Along with this, the target is to create the most realistic sound, to transfer the soul of the music and the intention of the performer.
