Summary of Contents for Ground Zero COMPETITION Series

  • Page 1 Internet store of PHONES SKYPE 0 (800) 800 130 autogoods km-130 (050) 462 0 130 (063) 462 0 130 (067) 462 0 130 CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories | CAR AUDIO —...

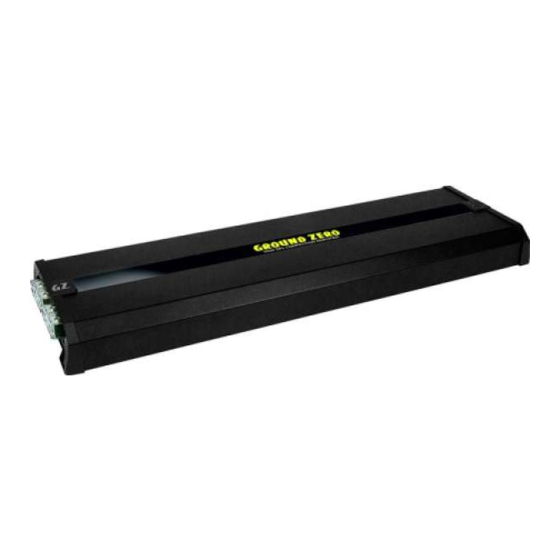

  • Page 2 COMPETITION SERIES AMPLIFIER OWNER’S MANUAL GZCA 35K-SPL Features • Pure competition amplifier • 1 Ohm stable low frequency amplifier • High efficient class D technology • Status LED monitoring • Illuminated GZ logo as power on indication • Adjustable input sensitivity •...
  • Page 3: Recommended Wiring

    Recommended wiring GZCA 35.0K-SPL Speaker wires Max possible Power supply wires According to competition rules / max possible Remote wire min 0.75 mm² / 20 AWG Mounting instructions • As a precaution, it is recommended to disconnect the vehicles battery before mounting (also note the vehicles manual!) •...
  • Page 4 Controls & Features – GZCA 35K-SPL Autogoods “130”...
  • Page 5 Controls & Features – GZCA 35K-SPL INPUT socket to connect RCA wire from the audio source / head unit OUTPUT socket to connect another amplifier /provides the original audio signal LEVEL control to adjust the input sensitivity (+) positive speaker wire connection OUTPUT terminal ( - ) negative speaker wire connection LINK IN socket...
  • Page 6 Input & Output wiring – GZCA 35K-SPL Autogoods “130”...
  • Page 7 Signal Input wiring – GZCA 35K-SPL Autogoods “130”...
  • Page 8 Link Mode – GZCA 35K-SPL This amplifier offers an exclusive feature enabling to connect a vast amount of speakers to up to 10 amplifiers controlled by only one (master) of them. Separate signal wiring is not necessary. To receive the maximum output power of each amplifier in the line of linked units, it´s recommended to spread the amount of speakers evenly to all amplifiers and to decrease the load for each amplifier to 1 Ohm by connecting the speakers in series and/or parallel.
  • Page 9: Specifications

    Specifications Model GZCA 35K-SPL Amplifier type Mono low frequency class D RMS Power @ 1 Ω 35000 W (0.1% THD+N) measured @ 12.6 V Input sensitivity 500 mV ~ 6 V Operation voltage 9 V ~ 18 V Fuse According to competition rules Dimensions 225 x 68 x 836 w x h x l (mm)
  • Page 10: Troubleshooting Guide

    The battery voltage is below 9.5 V Terms of warranty The limited warranty for this product is covered by Ground Zero´s local distribution partners and their terms and conditions. For further information contact your local retailer or distributor. Ground Zero GmbH Erlenweg 25, 85658 Egmating, Germany Tel.
