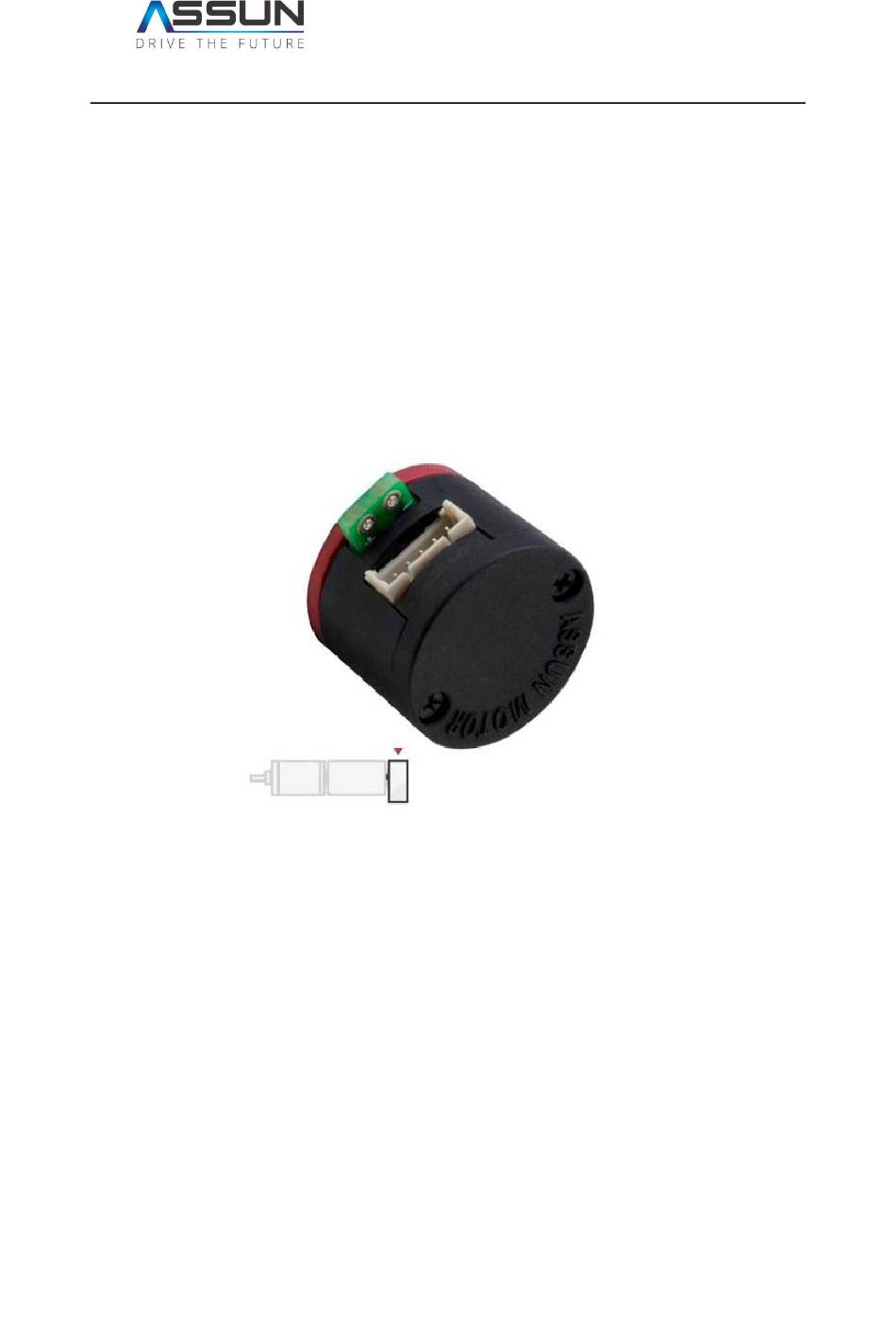

- Page 1 Assun Motor Product Manual For Electromagnetic Encoder AM-EN2211-S003 Series edition. October, 2019. All Rights Reserved Assun Motor Inc. Assun Motor Pte Ltd...
- Page 2 Shenzhen Zhengyuan Motor Co., Ltd Contents Assun Motor ................................1 Product Manual..............................1 1. About the Manual ............................3 Validity of This Document ......................3 Using This Document ........................3 Definition of Terms ........................4 Definition of Symbols ........................4 2. Product Safety ..............................5 2.1 Intended Product Usage ........................5 2.2 Product Usage Safety ........................5...
- Page 3 1. About the Manual 1.1 Validity of This Document The product manual document here is used for AM-EN2211-S003 series product by Assun Motor which is electromagnetic encoder. The manual has made detailed description to the safety and functional usage of this encoder product series. It helps the professional user to install and connect the encoder, and also guide the user in relevant function usage.
- Page 4 1.3 Definition of Terms Term Meaning Pulse Per Revolution CW/CCW Clockwise/Counter Clockwise Channel Signal Output Channels VIL/VIH Voltage Input Low / Voltage Input High Control Function Connect Pin Cable Power Connection Cable Ground / Negative Pole Direct Current Voltage Revolution per Minute 1.4 Definition of Symbols Caution! Hazard to persons.
- Page 5 2. Product Safety 2.1 Intended Product Usage The Assun Motor AM-EN2211-S003 series electromagnetic encoder are suitable for position signal output under rated DC power supply, it suitable for various DC drive and precision motion control systems. Product don’t have signal cable in default condition, customer could ask for customization of signal cables.
- Page 6 Product surface could be hot after long term touch of operating motor or brake. Please exercise caution when touching or handling the product. Power supply must be filtered DC and the input voltage must be at rated value for normal operation.
- Page 7 The product is a precision high PPR encoder with high accuracy assembly requirements. Please do not personally disassemble the product. 2.3 Product Disposal/Recycling This series of motor products is manufactured with multiple types of metals, alloy materials, chemical adhesives and lubricants. Please dispose it properly as recyclable material. For a detailed product material listing please refer to Chapter 3.1.
- Page 8 3. Product Series Information 3.1 Product Series Structure Introduction AM-EN2211-S003 series products is a series of high resolution electromagnetic encoder. Case diameter is φ22mm, case thickness is 10.7mm, rated voltage is 5V. For detailed series information and parameters please refer to Appendix 1.
- Page 9 This series of product are manufactured using materials using multi-types of metal, alloy material and chemical products. Specific material usage as shown in Table 1. Table 1. Product Material Matrix Magneto Welding Part Case Connector resistive Disc Cable Core Material sensor Magneto Magneto...
- Page 10 3.3 General Technical Information Table 2. Product Series General Technical Information Ambient Max. Output Current Power Signal Output （per channel） Temperature Inertia Vcc=5.0V, 5V±5% -25℃~80℃ 0.015g·cm 1.5mA(max) TTL Compatible 4. Product Function and Usage The series of product have five connection pins. When looking at positive direction (motor connection is in right side), from up to low is power positive pin, power ground pin, phase A output, phase B output and phase C output.
- Page 11 The standard product is without differential signal output. For application with higher reliability requirements, customer could choose differential signal output model to achieve better system reliability. 4.3 Three Phase Output Signal Description In the output signal, phase A and phase B is the rotating position signal, phase B signal is a quarter cycle later than phase A signal, so these two phase signals could be used to determine the rotating direction.
- Page 12 5. Maintenance The product series is maintenance free, please do not disassemble in person. There are no repairable components inside the motor. Regarding any quality issue or maintenance needs, please contact our regional service person for relevant technical support. Ignoring this warning will void the warranty. Appendix Appendix 1.
- Page 13 Contact Singapore Tel: +65 6532-5243 Email: info@assunmotor.com Add: #06-05, 1092 Lower Delta Road. Singapore 169203. China Tel: +86 755-8368-8818 Email: info_cn@assunmotor.com Add: 7 Floor, Blk 6, Yongping Industrial Area, 9 Tongfu Road. Shenzhen, P.R.China. 1-833-277-8688 Tel: + Email: info_us@assunmotor.com Add: Suit F208, 6370 Lusk Boulevard San Diego, CA 92121-2760 USA 13 / 13...
