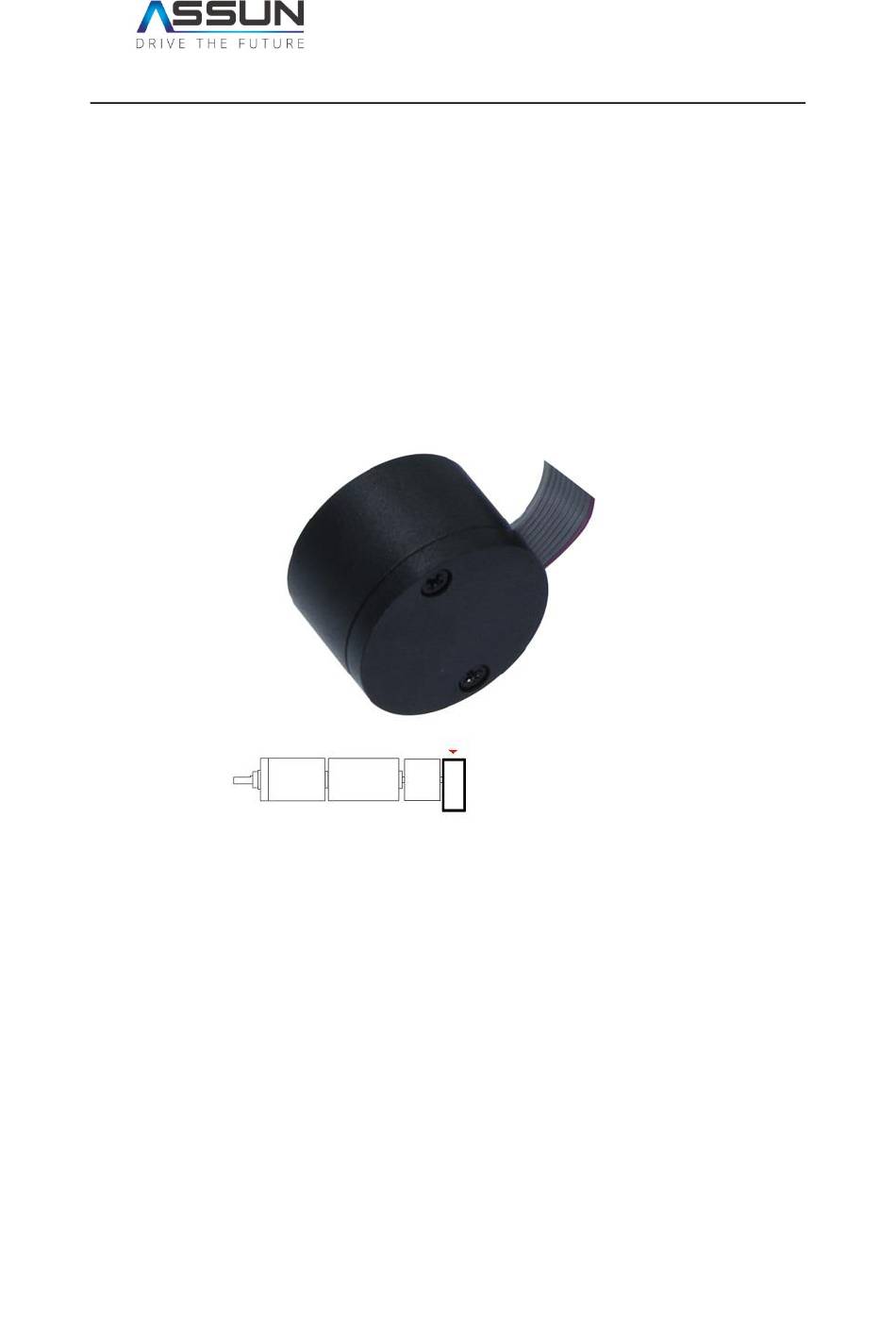

Page 1: Assun Motor
Assun Motor Product Manual For Absolute Encoder AM-EN2211S113 Series edition. October, 2019. All Rights Reserved Assun Motor Inc. Assun Motor Pte Ltd Shenzhen Zhengyuan Motor Co., Ltd... -
Page 2: Table Of Contents
Contents Assun Motor ................................1 Product Manual..............................1 1. About the Manual ............................3 Validity of This Document ......................3 Using This Document ........................3 Definition of Terms ........................4 Definition of Symbols ........................4 2. Product Safety ..............................6 2.1 Intended Product Usage ........................6 2.2 Product Usage Safety ........................6 2.3 Product Disposal/Recycling ......................8... -
Page 3: About The Manual
The product manual document here is used for AM-EN2211S113 series absolute encoder, produced by Assun Motor. The manual has made detailed description to the safety and functional usage of this product series. It helps professional user to install and connect the encoder, and also guide the user in relevant function usage. -
Page 4: Definition Of Terms
1.3 Definition of Terms Term Meaning Pulse Per Revolution CW/CCW Clockwise/Counter Clockwise Channel Signal Output Channels VIL/VIH Voltage Input Low / Voltage Input High Control Function Connect Pin Cable Power Connection Cable Ground / Negative Pole Direct Current Voltage Revolution per Minute SSI Protocol Enable Signal Clock Rate Signal... - Page 5 Caution! Hazardous due to hot surface. Disregard may lead to burns. 5 / 14...
-
Page 6: Product Safety
2. Product Safety 2.1 Intended Product Usage The Assun Motor AM-EN2211S113 series three channel absolute encoder are suitable for position signal output under rated DC power supply, it suitable for various DC drive and precision motion control systems. Product has three channel digital signal output; output signals are differentiated. - Page 7 Product surface could be hot after long term touch of operating motor or brake. Please exercise caution when touching or handling the product. Power supply must be filtered DC and the input voltage must be at rated value for normal operation.
-
Page 8: Product Disposal/Recycling
The product is a high precision encoder with high accuracy assembly requirements. Please do not personally disassemble the product. 2.3 Product Disposal/Recycling This series of motor products is manufactured with multiple types of metals, alloy materials, chemical adhesives and lubricants. Please dispose it properly as recyclable material. For a detailed product material listing please refer to Chapter 3.1. -
Page 9: Product Series Information
3. Product Series Information 3.1 Product Series Structure Introduction AM-EN2211S113 series products is a series of high-resolution electromagnetic encoder. Case diameter is φ22mm, case thickness is 10.7mm, rated voltage is 5V. For detailed series information and parameters please refer to Appendix 1. -
Page 10: Product Model Information
This series of product are manufactured using materials using multi-types of metal, alloy material and chemical products. Specific material usage as shown in Table 1. Table 1. Product Material Matrix Magneto Welding Part Case Connector resistive Disc Cable Core Material sensor Magneto Magneto... -
Page 11: General Technical Information
Wrong connection will lead to malfunction of encoder or even damage the encoder electronics. When fitting with Assun Motor controllers, the products will be well fitted before shipping. If customer wants to adopt other controller brands, then please contact Assun sales engineers for relevant guidance or customizations. -
Page 12: Resolution Description
4.2 Resolution Description Resolution of the encoder series, also named as bits for absolute encoder, is 16 bits. The encoder are capable of giving 2^16 position signals, thus the precision gap level in the 360° rotation is 0.0055°. The series of product is single-turn absolute encoder, un-capable of turn number recording. If the number of turns need to be recoded, the relevant functions shall be configured in the controller. -
Page 13: Maintenance
5. Maintenance The product series is maintenance free, please do not disassemble in person. There are no repairable components inside the motor. Regarding any quality issue or maintenance needs, please contact our regional service person for relevant technical support. Ignoring this warning will void the warranty. Appendix Appendix 1. -
Page 14: Contact
Contact Singapore Tel: +65 6532-5243 Email: info@assunmotor.com Add: #06-05, 1092 Lower Delta Road. Singapore 169203. China Tel: +86 755-8368-8818 Email: info_cn@assunmotor.com Add: 7 Floor, Blk 6, Yongping Industrial Area, 9 Tongfu Road. Shenzhen, P.R.China. 1-833-277-8688 Tel: + Email: info_us@assunmotor.com Add: Suit F208, 6370 Lusk Boulevard San Diego, CA 92121-2760 USA 14 / 14...
