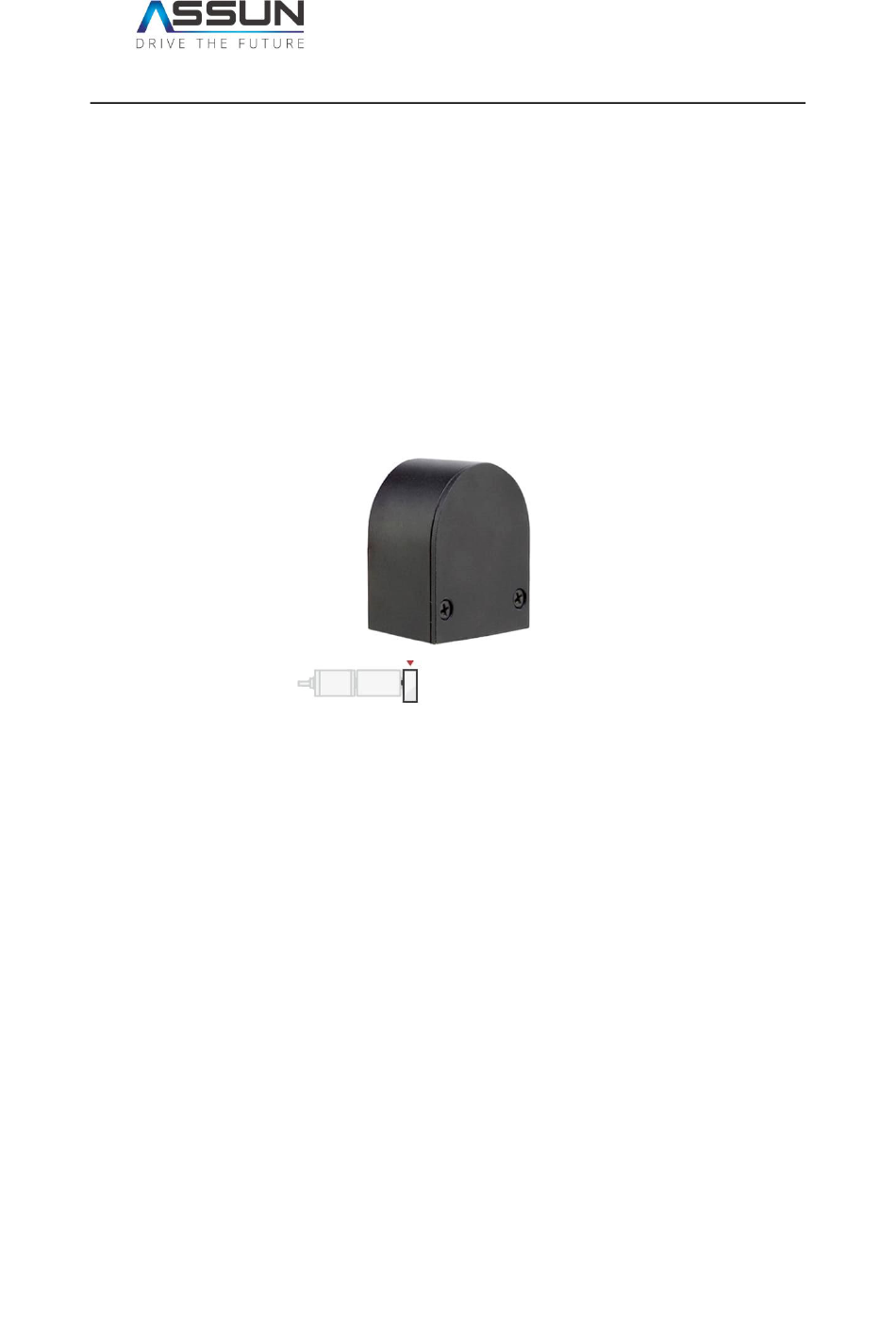

Page 1: Assun Motor
Assun Motor Product Manual For Optical Encoder AM-EN2412-T003 Series edition. October, 2019. All Rights Reserved Assun Motor Inc. Assun Motor Pte Ltd Shenzhen Zhengyuan Motor Co., Ltd... -
Page 2: Table Of Contents
Contents Assun Motor ................................1 Product Manual..............................1 1. About the Manual ............................3 Validity of This Document ......................3 Using This Document ........................3 Definition of Terms ........................4 Definition of Symbols ........................4 2. Product Safety ..............................5 2.1 Intended Product Usage ........................5 2.2 Product Usage Safety ........................5 2.3 Product Disposal/Recycling ......................7... -
Page 3: About The Manual
1. About the Manual 1.1 Validity of This Document The product manual document here is used for AM-EN2412-T003 series product by Assun Motor which is optical encoder. The manual has made detailed description to the safety and functional usage of this encoder product series. It helps the professional user to install and connect the encoder, and also guide the user in relevant function usage. -
Page 4: Definition Of Terms
1.3 Definition of Terms Term Meaning Pulse Per Revolution CW/CCW Clockwise/Counter Clockwise Channel Signal Output Channels VIL/VIH Voltage Input Low / Voltage Input High Control Function Connect Pin Cable Power Connection Cable Ground / Negative Pole Direct Current Voltage 1.4 Definition of Symbols Caution! Hazard to persons. -
Page 5: Product Safety
2. Product Safety 2.1 Intended Product Usage The Assun Motor AM-EN2412-T003 series optical encoder are suitable for position signal output under rated DC power supply, it suitable for various DC drive and precision motion control systems. Product have signal cable in default condition, output signals are not differentiate;... - Page 6 Product surface could be hot after long term touch of operating motor or brake. Please exercise caution when touching or handling the product. Power supply must be filtered DC and the input voltage must be at rated value for normal operation.
-
Page 7: Product Disposal/Recycling
The product is a precision high PPR encoder with high accuracy assembly requirements. Please do not personally disassemble the product. 2.3 Product Disposal/Recycling This series of motor products is manufactured with multiple types of metals, alloy materials, chemical adhesives and lubricants. Please dispose it properly as recyclable material. For a detailed product material listing please refer to Chapter 3.1. -
Page 8: Product Series Information
3. Product Series Information 3.1 Product Series Structure Introduction AM-EN2412-T003 series products is a series of high resolution optical encoder. Case length is 26mm, width is 24.5mm, case thickness is 12mm, rated voltage is 5V. For detailed series information and parameters please refer to Appendix 1. -
Page 9: Product Model Information
This series of product are manufactured using materials using multi-types of metal, alloy material and chemical products. Specific material usage as shown in Table 1. Table 1. Product Material Matrix Light Welding Part Case Connector Disc Cable Core sensor Material Light Stainless Material... -
Page 10: Product Function And Usage
Ambient Max. Output Current Power Signal Output （per channel） Temperature Inertia Vcc=5.0V, 5V±5% -25℃~80℃ 0.23g·cm 1.5mA(max) TTL Compatible 4. Product Function and Usage The series of product have ten connection pins, pin connector number is 41651. Ten pins have different functions as per numbered, as flowing. No：... -
Page 11: Three Phase Output Signal Description
Encoder Max. working frequency is 55-220 KHz. Customer could ask for customization of up to 10000 PPR. The standard product is without differential signal output. For application with higher reliability requirements, customer could purchase differential signal output model to achieve better system reliability. -
Page 12: Maintenance
5. Maintenance The product series is maintenance free, please do not disassemble in person. There are no repairable components inside the motor. Regarding any quality issue or maintenance needs, please contact our regional service person for relevant technical support. Ignoring this warning will void the warranty. Appendix Appendix 1. -
Page 13: Contact
Contact Singapore Tel: +65 6532-5243 Email: info@assunmotor.com Add: #06-05, 1092 Lower Delta Road. Singapore 169203. China Tel: +86 755-8368-8818 Email: info_cn@assunmotor.com Add: 7 Floor, Blk 6, Yongping Industrial Area, 9 Tongfu Road. Shenzhen, P.R.China. 1-833-277-8688 Tel: + Email: info_us@assunmotor.com Add: Suit F208, 6370 Lusk Boulevard San Diego, CA 92121-2760 USA 13 / 13...
