DTC SOL8SDR-H2 Quick Start Manual

Revision: 1.0

Overview

This quick start guide provides instructions and diagrams describing how to quickly connect and

configure the SOL8SDR-H2 device to join a Mesh network.

Note: If configuring as a SOL-TX or SOL-RX, please refer to the relevant user guides.

Supporting software applications and detailed user guides can be downloaded from DTC's WatchDox

facility. Please contact the DTC support team:



Phone US: +1 571 563 7077



Phone UK: +44 1489 884 550



Email US:

us.technical.support@domotactical.com



Email ROW:

uk.technical.support@domotactical.com

The minimum connections required for an SDR-H2 to join a Mesh network are power and antennas.

An Ethernet connection to a PC is required for initial configuration.

IMPORTANT: Batteries will be shipped with minimal charge to comply with safety regulations. It is

essential to charge the batteries before operation.

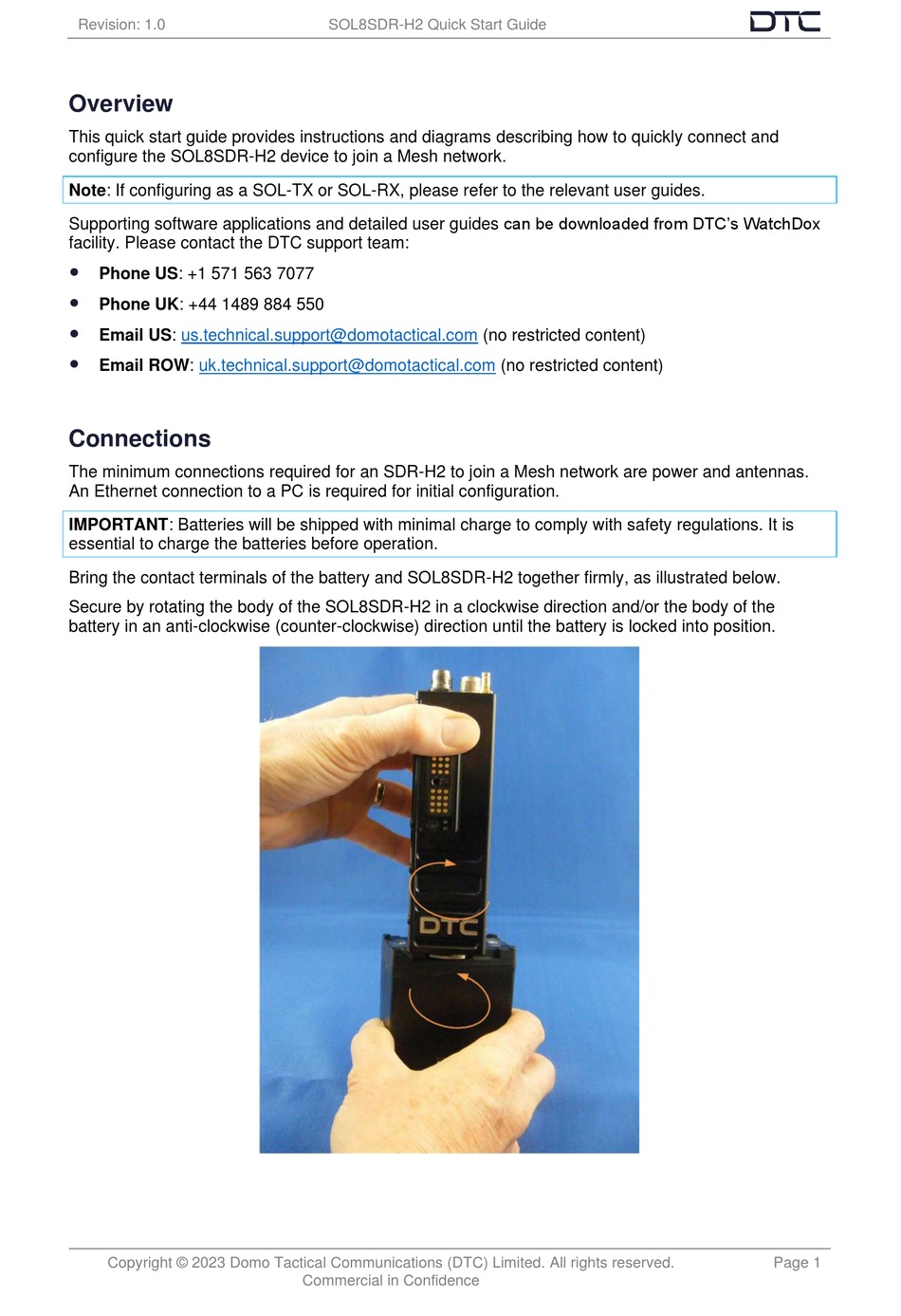

Bring the contact terminals of the battery and SOL8SDR-H2 together firmly, as illustrated below.

Secure by rotating the body of the SOL8SDR-H2 in a clockwise direction and/or the body of the

battery in an anti-clockwise (counter-clockwise) direction until the battery is locked into position.

SOL8SDR-H2 Quick Start Guide

Commercial in Confidence

(no restricted content)

Page 1

Table of Contents

Do you have a question about the SOL8SDR-H2 and is the answer not in the manual?

Page 1 Bring the contact terminals of the battery and SOL8SDR-H2 together firmly, as illustrated below. Secure by rotating the body of the SOL8SDR-H2 in a clockwise direction and/or the body of the battery in an anti-clockwise (counter-clockwise) direction until the battery is locked into position.
Page 2 Note: A full list of cable options can be found in the datasheet or user guide. Power is applied by turning the power/config switch to position 1. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 2...
Page 3 SOL8SDR-H2 Quick Start Guide Initial Communications DTC’s Node Finder application can be used to identify all DTC device Ethernet IP addresses connected on a network. The default setting requires the device to be connected by Ethernet to a DHCP server which will automatically allocate an IP address.
Page 4 When the SDR has been configured, the Ethernet connection to the PC can remain if it is to be the control node for the Mesh network, otherwise, disconnect to prevent network looping. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4...
