ASSEMBLY INSTRUCTIONS

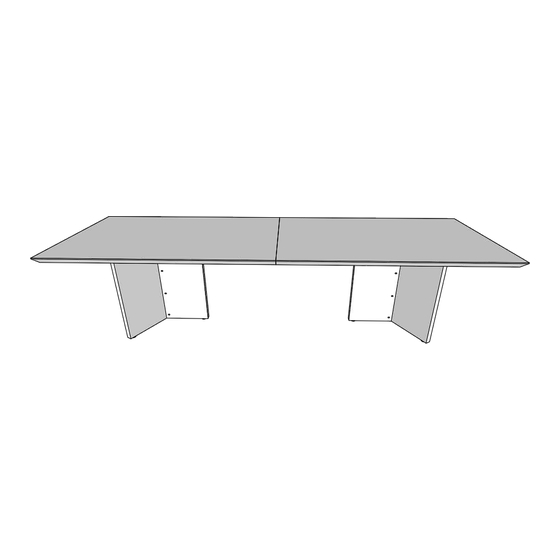

DIETRICH DINING TABLE

Hardware List:

Threaded Leveler
Machine Bolt
(x6)
(x40)
(Threaded into bottom
of leg assemblies)

Parts List:

Support Stretchers
(x2)
Mending Plates
(x2)
Leg Assembly
(x2)
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIETRICH DINING TABLE and is the answer not in the manual?

Questions and answers

Summary of Contents for West Elm DIETRICH DINING TABLE

  • Page 1 ASSEMBLY INSTRUCTIONS DIETRICH DINING TABLE Hardware List: Threaded Leveler Machine Bolt (x6) (x40) (Threaded into bottom of leg assemblies) Parts List: Support Stretchers (x2) Mending Plates (x2) Leg Assembly (x2) Page 1 of 3...
  • Page 2 ASSEMBLY INSTRUCTIONS DIETRICH DINING TABLE Step 1: Remove table top halves from packaging and place upside down on a non-abrasive surface. Step 2: Flip Leg Assembly over and attach to table top halves with the provided Machine Bolts (x8) Step 3: Attach the Support...
  • Page 3 ASSEMBLY INSTRUCTIONS DIETRICH DINING TABLE Step 4: Attach Mending Plates to table top halves with provided Machine Bolts (x16) Step 5: Tighten all bolts to make sure all pieces are secure. Step 6: Flip your table over, adjust threaded levelers as needed and enjoy your new table.
