! Tools Required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as: cardboard or carpet to protect fi nish.
! Proper assembly of this item requires 2 people.

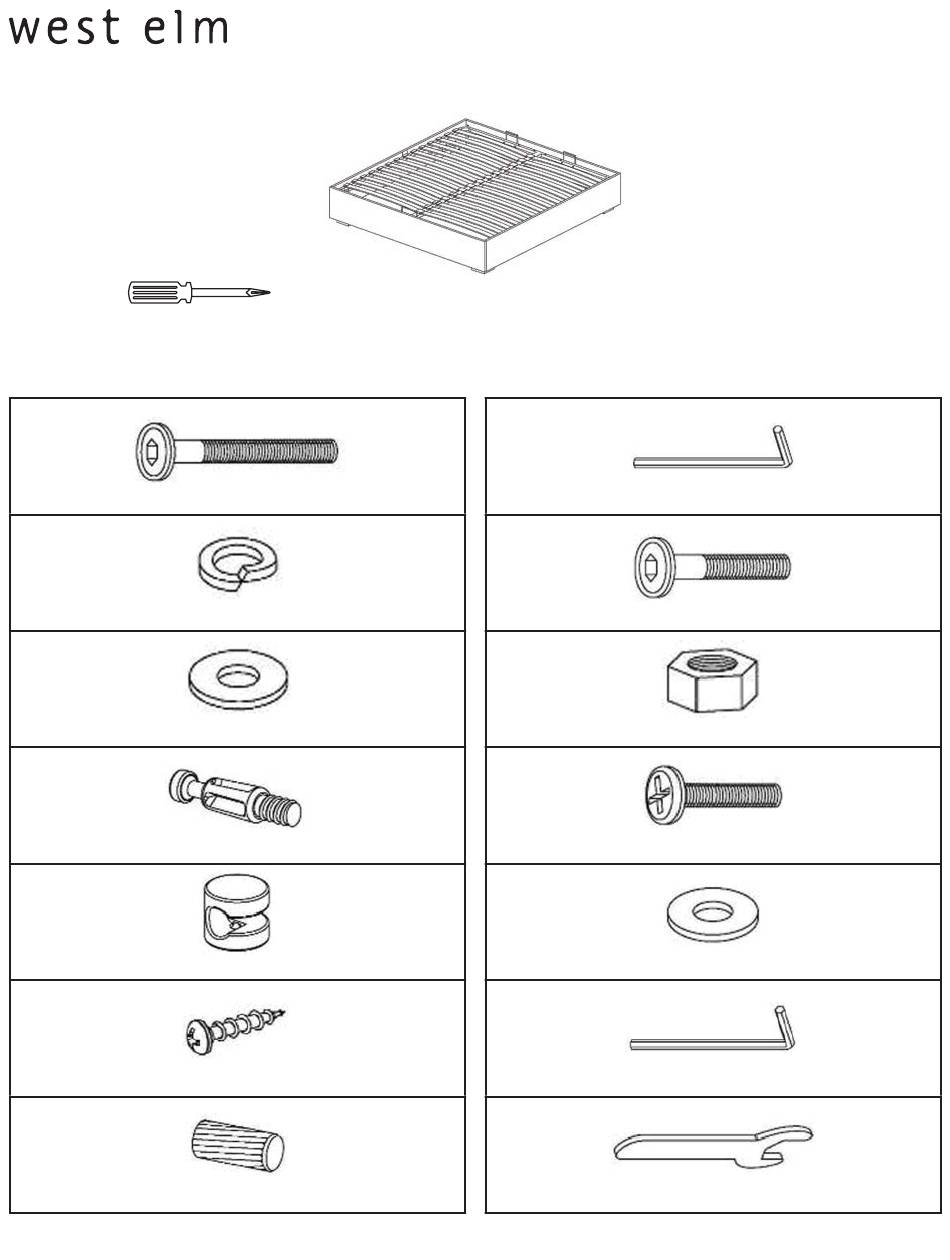

Hardware
1
bolt 6mm x 40mm
2
spring washer
3
fl at washer
4
cam bolt
5
cam lock
6
screw Ø4mm x 20 mm
7
dowel Ø10mm x 30 mm
-09.15.09
12x
12x
12x
12x
12x
28x
12x
pivot storage bed full size
8
allen key M4
9
bolt M8 x 45mm
10
hexagon-nut M8 x 7mm
11
crosshead bolt M6 x 20mm
12
fl at washer
13
allen key M5 1x
14
spanner wrench
assembly instructions
1x
6x
12x
10x
10x
1x
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for West Elm Pivot Storage Bed
Summary of Contents for West Elm Pivot Storage Bed
- Page 1 ! Tools Required: ! Do not throw away packaging materials until assembly is complete. ! Assemble this item on a soft surface, such as: cardboard or carpet to protect fi nish. ! Proper assembly of this item requires 2 people.
- Page 2 Parts Page 2 of 7 -09.15.09...
- Page 3 1. Insert dowels (7) into the holes of the headboard (A) and the footboard (B). Attach the corner blocks (D) to at washers (3). Tighten with allen key (8). 2. Insert cam bolts (4) to the side rails (C) and the footboard (B) as shown below. Tighten with phillips head screwdriver.
- Page 4 3. Attach the side rails (C) to the headboard (A) and the footboard (B) with bolts (1), spring washers (2), at washers (3). Tighten with allen key (8). Insert cam lock (5) into the headboard (A), and side rails (C).
- Page 5 5. Lay the bottom panels (F) between the side rails (C), making sure that the panel that has 2 rails under- neath is located in the center. Attach bottom panels (F) to the bed frame with screws (6) as shown below.
- Page 6 7. Turn the metal frame over and attach the two hydraulic arms (H) to the metal slats frame (G) with bolts (9), and hexagon-nuts (10). Tighten with allen key (13) and spanner wrench (14).
- Page 7 9. To close the storage bed, open the latches on the footboard and pull the metal slats frame down and lock latches as shown below. To open the storage bed, open the latches and pull metal slats frame up as shown below.
