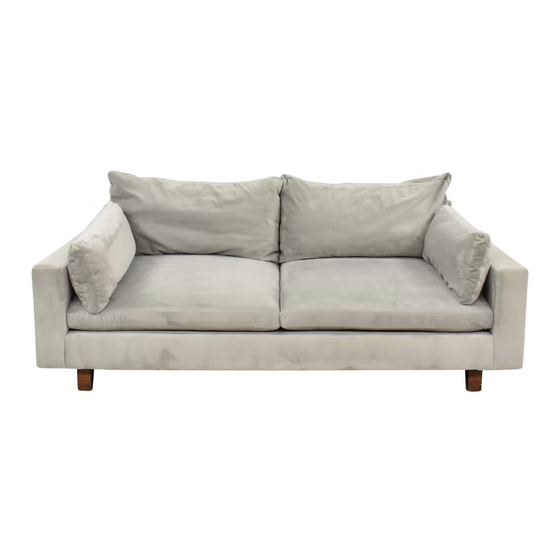

West Elm Harmony Series Assembly Instructions

! Do not throw away packaging material until assembly is complete

! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish

! Proper assembly of this item requires 2 people

Reg. Leg SS-5377 (Req:2x Long Bolts)

Harmony Deep Reg Leg SS-5380

Long Bolt 4 ½" SS-5233

Hex Key SS-5234

Choose the proper leg that matches the collection piece using the chart on back side.

Remove temporary shipping leg and layout wrapped legs from packaging.

Attach each leg by aligning it on the pre-drilled holes underneath the frame. Insert bolt with washer into the frame. Hand

tighten bolts. Warning! Do not tighten until all bolts are secured.

Once all bolts are in, tighten completely using the hex key provided.

Additional information: Shelf Legs can be turned inwards to hide shelf or turned outwards to be used as a support for a sectional piece.

See image below.

Warning! Armless Pieces need to be locked together using brackets and properly resting on shared leg.

A. Visible shelf leg and sectional brackets for connecting

Shelf Leg SS-5378 (Req:2x Short Bolts)

Harmony Deep Shelf Leg SS-5381

Short Bolt 2 ½" SS-5232

Washer SS-1113

Harmony Collection

assembly instructions

Corner Leg A SS-5379 (Req:2x Long Bolts)

Corner Leg B SS-5379 (Req:2x Long Bolts)

Corner Leg A & B may also come

preassembled. Please follow same

instructions for assembly

B. Invisible shelf leg for stand-alone unit

Table of Contents

Need help?

Do you have a question about the Harmony Series and is the answer not in the manual?

Page 1 Harmony Collection assembly instructions ! Do not throw away packaging material until assembly is complete ! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish ! Proper assembly of this item requires 2 people Reg.
Page 2 Harmony Collection assembly instructions Chart 1. Harmony Leg Placement Sofa 82”, Chair and Half, Apt Sofa, & Grand Sofa Armless Double Sofa & Ottoman 2 Reg. Legs 2 Shelf Legs 4 Long Bolts, 4 Washers, 1 Hex Key 4 Short Bolts, 4 Washers, 1 Hex Key Place bolts in pre-drilled holes, hand tighten then use hex key to 1: Shelf visible for support tighten completely.
