- Page 1 Quick Installation Guide HD Day & Night WDR Network Camera This document will guide you through the basic installation process for your new D-Link Network Camera. DCS-3710 Documentation also available on CD and via the D-Link Website...
-
Page 2: Installation Steps
This installation guide provides basic instructions for installing the DCS-3710 Network Camera on your network. For additional information about how to use the camera, please see the User Manual which is available on the CD include in this package or from the D-Link support website. Installation Steps 1. -
Page 3: Hardware Overview

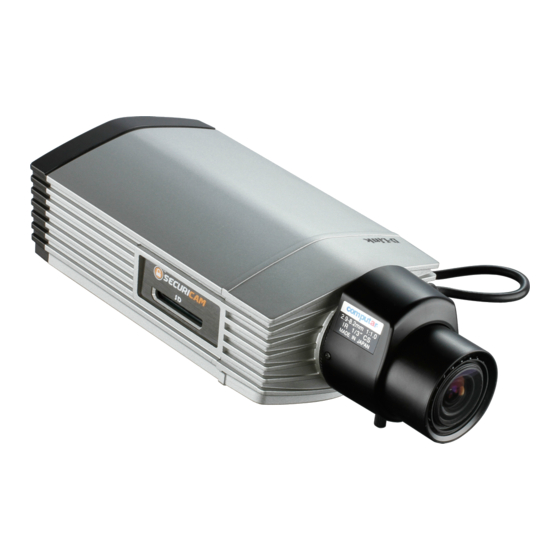

Audio output for external speakers BNC Connector Analog video output Front Panel ICR Sensor The IR-Cut Removable sensor Lens Connector judges lighting conditions and Connect to a CS mount switches between color infrared accordingly D-Link DCS-3710 Quick Installation Guide... -
Page 4: Right Panel
2. DC IRIS: Toggle auto iris (DC drive) 3. NTSC: TV output signal selector 4. PAL: TV output signal selector Left Panel SD Card Slot Insert a SD card (sold separately) for storing recorded images and video D-Link DCS-3710 Quick Installation Guide... -
Page 5: Hardware Installation
If you are using a PoE switch or router, connect the network camera via Ethernet cable. The Ethernet cable will transmit data and power. Note: Once power has been established, the LED will turn red. When the device has obtained an IP address and is accessible, the LED will turn green. D-Link DCS-3710 Quick Installation Guide... -
Page 6: Configuration With Wizard
Insert the DCS-3710 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive. - Page 7 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
- Page 8 Viewing Camera via Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE Select the camera and click the Link button to access the web configuration.
-
Page 9: Adjust The Zoom/Focus
Adjust Zoom Ratio Unscrew the focus controller to loosen the zoom controller. Adjust the zoom factor by moving the controller the left or right until the desired range is achieved. Tighten the zoom controller once completed. D-Link DCS-3710 Quick Installation Guide... - Page 10 Notes D-Link DCS-3710 Quick Installation Guide...
- Page 11 Notes D-Link DCS-3710 Quick Installation Guide...
-
Page 12: Technical Support
Copyright ©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual product appearance...
