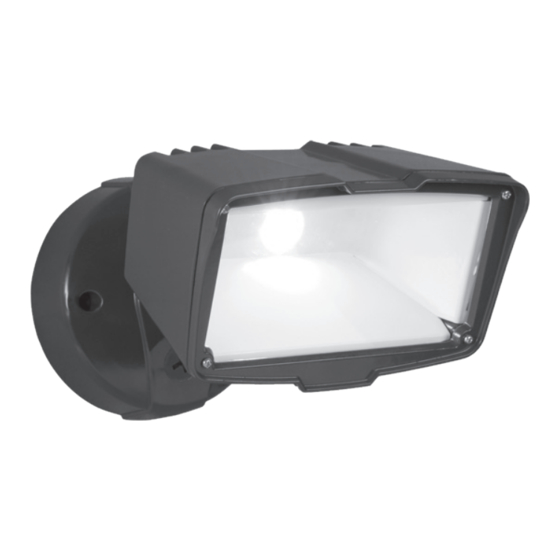

Cooper Lighting ALL-PRO FSL2030LC Instruction Manual

FSL2030LC
(Bronze )
ENGLISH

ITEMS REQUIRED

(Purchase separately)
• Phillips screwdriver
• Outdoor weatherproof silicone caulking

IMPORTANT SAFETY INSTRUCTIONS

When using product, basic precautions should always be followed, including the following:
• Heed all warnings, including below warnings AND those included on product.
• Save these instructions and warnings.
• For outdoor use only.
• cULus LISTED for wet location.
• Disassembling your fixture will void the warranty.
• Your fixture is prewired and preassembled for easy installation.
WARNING
• Read and follow these instructions.
• Risk of fire/electric shock. If not qualified, consult an electrician.
• Disconnect power at fuse or circuit breaker before installing or servicing.
CAUTION
• Connect fixture to a 120 volt, 60 Hz power source. Any other connection voids
the warranty.
• Fixture should be installed by persons with experience in household wiring or by a
qualified electrician. The electrical system, and the method of electrically connecting
the fixture to it, must be in accordance with the National Electrical Code and local
building codes.
• Fixture designed for wall or eave mount to a junction box only. Mount fixture to a
grounded, recessed-mounted standard junction box marked for use in wet locations.
• Do not mount below 5 feet.
SAVE THESE INSTRUCTIONS.
FOR BEST RESULTS
• Install light 10-15 feet above the ground.
• When installing two fixtures on one switch, make sure the switch is rated for at least
a 1 A inductive load.
Questions? / Questions ? 1-800-334-6871 ConsumerProducts@cooperlighting.com

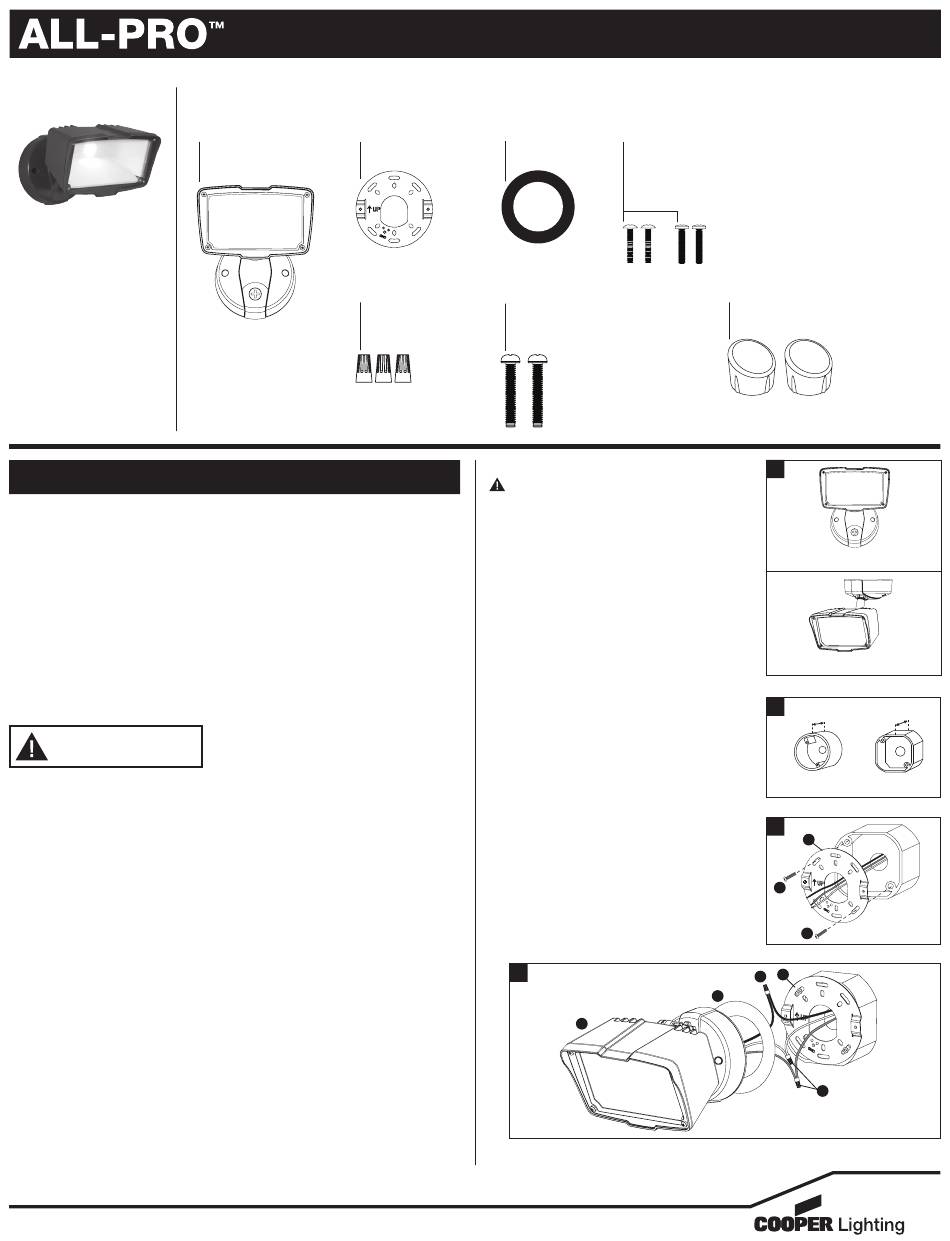

PACKAGING CONTENTS / CONTENU DU PAQUET
A. Light fixture B. Mounting bracket
L'appareil d'éclairage Support de fixation
E. (3) Wire nuts
(3) Serre-fils
C. Gasket D. (2) #6-32 x 3/4 in. and (2) #8-32 x 3/4 in.
(use the size that fits your junction box)
Joint
(2) Vis de boite de jonction no 6-32 x 19 mm (3/4 po)
et (2) vis de boite de jonction no 8-32 x 19 mm (3/4 po)
(utilisez la taille qui convient à votre boîte de connexion)
F. (2) #8-32 x 1-1/4 in. cover
mounting screws
Vis d'assemblage du couvercle
no 8-32 x 32 mm (1 1/4 po)

MOUNTING AND WIRING YOUR FIXTURE

WARNING: Risk of electric shock. Disconnect
power at fuse or circuit breaker before installing
or servicing.
NOTE: Fixture can be wall or eave mounted (Fig. 1).
NOTE: Coverplate mounts to recessed mounted
standard junction boxes (Fig. 2). Junction box must be
at least 1-1/2 inch in depth for proper installation for
recessed mount application.
1. Line up the holes on the mounting bracket (B) with
the holes on your junction box. Using either (2) #6
screws or (2) #8 screws (D) (depending on size of
the holes in your junction box), attach the mounting
bracket (B) to your junction box (Fig. 3).
2. Thread fixture wires through coverplate
gasket (C) (Fig. 4).
4
A
1
Instruction Manual / Directives
G. (2) Decorative screw cover caps
(2) Capuchons décoratifs vissés
1
Wall mount
Eave mount
2
1-1/2 in. 1-1/2 in.
Round Octagonal
3
B
D
D
B
E
C
Junction
E
box
