ESF6010BW Service Manual
Item
PNC
A
956002180
A
956002181
Always turn off and unplug the machine before detaching any parts.
The reason is internal faults may cause shorts to components
that are normally at low voltage presenting a shock hazard.
Electrolux Thailand Co.,Ltd.
1910 Electrolux Building
New Petchburi Rd. Bangkapi
Huaykwang Bangkok , 10310
Tel : +662 725 9000
ELC
00
00
SAFETY WARNING
When servicing machines, do not remove
ANY detachable parts while the machine is powered.
Brand
Electrolux
ESF6010BW
Electrolux
ESF6010BW
Model
Market
MYH/SGE
Publication-No.
THE
180212

Advertisement

Table of Contents
loading

Related Manuals for Electrolux ESF6010BW

Summary of Contents for Electrolux ESF6010BW

  • Page 1 ESF6010BW Service Manual Item Brand Model Market Electrolux ESF6010BW 956002180 Electrolux ESF6010BW MYH/SGE 956002181 SAFETY WARNING Always turn off and unplug the machine before detaching any parts. When servicing machines, do not remove ANY detachable parts while the machine is powered.

  • Page 2: Table Of Contents

    Compact Dishwasher （8 settings） IMPORTANT SAFETY NOTICE The information in this service guide is intended for use by individuals possessing adequate backgrounds of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in personal injury and property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use.
  • Page 3 Operating board ............................2 Outer Door ..............................2 Dispenser ............................... 2 Inner Door ..............................2 Shell ................................2 Door Lock Assembly ..................Error! Bookmark not defined. Air breaker ..............................2 Inner pipe ............................... 2 Hinge assembly and Spring system......................2 Tank assembly ..............................

  • Page 4: Introduction

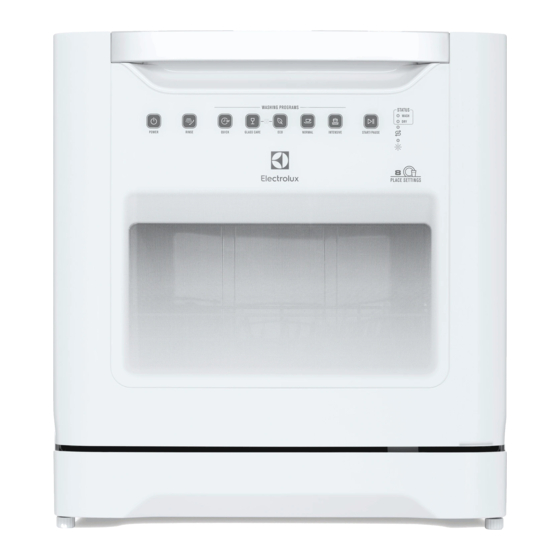

    Introduction WQP8-3801 compact electrical dishwasher with 6 washing cycles offers good washing performance to satisfy every washing requirement. Its electronic control is easy and convenient to operate. The rack can hold up to 8 sets of dishes. The size (width * depth * height: 550mm * 500mm * 590mm) can easily fit in any corner of the kitchen, and it’s recommended to locate at which the water hose connection is accessible.
  • Page 5 Front View Part Name: 1 –Handle 2 – control panel 3 – outer door 4 – kick board Interior View (with baskets) Part Name: 1 – upper basket 2 – lower basket 3 –led window 4 – dispenser 5 – inner door 6 –door lock...
  • Page 6 Interior View (With Baskets Removed) Part Name: 1 –inner water pipe 2 –basket guider 3 –Nut of air breaker 4 –Water Softener cover 5 –Sprayer 6 –Filter System Back View Part Name: 1 –Bottom board 2 –Power cord 3 –Inlet hose connecter 4 –...

  • Page 7: Dishwasher Components

    Dishwasher Components Note : Throughout this manual, features and appearance may vary from your model. WARNING : Always turn off the electric power supply before servicing any electrical component, making ohmmeter checks, or replacing any parts. Note : All voltage checks should be made with a voltmeter having a full scale range of 250 volts or higher.

  • Page 8: Floater Assembly

    snaps Part Name: 1 – cover of bottom board 4. Pull out all housings and terminals (including some locking terminals), then unfix all snaps for fixing main control board. Snaps Part name: 1 – protecting box 2 – main control board Note : mark all housings and terminals’...

  • Page 9: Heating Pump Motor Assembly

    Removal and Replacement Remove cover of bottom board. (see main control board removal and replacement) Pull out all terminals of microswitch. Unfit snaps fixing microswitch to floater holder. Snaps Unfit snaps fixing floater holder to cover of bottom board. Reverse the above procedure to install. And check out all connectors connected well. Heating pump motor assembly Part Name: 1 –...

  • Page 10: Heating Pump Assembly

    Part Name: 1 – motor hunger Remove clamps fixing heating pump motor assembly to sump of bottom board. Unfit motor hungers fixing heating pump motor assembly to bottom board. Reverse the above procedure to install. And check out all connectors connected well. Heating pump assembly Part Name: 1 –...

  • Page 11: Motor Assembly

    Reverse the above procedure to install. And check out all connectors connected well. Motor assembly Screws Part Name: 1 – motor hunger 2 – impeller assembly 3 – pump seal ring 4 – lower pump 5 – motor assembly Removal and Replacement 1.

  • Page 12: Drain Pump Assembly

    4. Reverse the above procedure to install. And check out all connectors connected well. Drain pump assembly Removal and Replacement Remove cover of bottom board. (see main control board removal and replacement) Pull out all terminals of drain pump assembly. Unfit snap of drain pump assembly, and contrarotate drain pump assembly to take it out.

  • Page 13: Inlet Valve

    Part Name: 1 – inner drain hose 2 –check plate assembly Pull out check plate from check plate holder, and replace a new check plate. Reverse the above procedure to install. And check out all connectors connects well. Inlet valve Removal and Replacement Remove cover of bottom board.

  • Page 14: Outer Door

    Outer Door The outer door covers the door to the dishwasher and protects the detergent dispenser. Removal and Installation 1. Open the door of dishwasher. And remove all screws for fixing outer door. 2. Reverse the above procedure to install. And check out all connectors connected well. Screws Front View (with outer door assembly removed) Part Name: 1 –dispenser...

  • Page 15: Dispenser

    Dispenser The dispenser automatically dispenses both the detergent and the rinse agent at the appropriate times. The dispenser is activated twice during a wash cycle. The first time, the dispenser is activated, the lever slides up the right-hand path of the connecting rod.

  • Page 16: Shell

    Caution : Inner door of edges are sharp. Removal and Replacement 1. Remove outer door assembly. (see outer door removal and installation) 2. Remove control panel .(see control panel removal and installation) 3. Remove dispenser. (see dispenser removal and replacement) 4.
  • Page 17 3. Reverse the above procedure to install. And check out all connectors connected well. Top View (with shell removed) Part Name: 1 – door lock assembly 2 – strengthen frame 3 – corner boards 4 –backboard...

  • Page 18: Air Breaker

    Air breaker Removal and Replacement 1. Remove shell. (see shell removal and installation) 2. Take out absorbing cotton, upper basket and lower basket. 3. Contrarotate nut of air breaker and take out it. clamps 4. Pull out terminal of air breaker, and unfit snaps of air breaker fixing on softener. snap 5.

  • Page 19: Hinge Assembly And Spring System

    Hinge assembly and Spring system Part Name: 1 – spring holder 2 – spring 3 – friction strip 4 – absorbing cotton 5 – hinge assembly Removal and Replacement 1. Remove shell. (see shell removal and installation) 2. Take out absorbing cotton. 3.

  • Page 20: Basket Guider Assembly

    Removal and Installation 1. Remove shell. (see shell removal and installation) 2. Take out absorbing cotton. 3. Remove air breaker. (see air breaker removal and replacement) 4. Remove inner water pipe. (see inner water pipe removal and replacement) 5. Contrarotate nut of outer water pipe connecter and take out it. 6.

  • Page 21: Basket Guider Wheel Support

    Removal and Replacement 1. Take out upper basket and lower basket. 2. Unfit snap of basket guider stopper(back). snap 3. Take out basket guider assembly from the tank assembly. 4. Reverse the above procedure to install. Basket guider wheel support Part Name: 1 –...

  • Page 22: Inner Pipe Support

    Inner pipe support Part Name: 1 – inner pipe support holder 2 –inner pipe support 3 –screw Removal and Replacement Take out upper basket and lower basket. Remove screw for fixing basket guider wheel support to tank. Reverse the above procedure to install. screw Troubleshooting SYMPTOM...
  • Page 23 Damaged or defective wiring. Repair the wiring. Dishwasher runs Low input voltage. The lowest input voltage is 198V but. will not heat. Defective Thermal resistor Replace the Thermal resistor Damaged or defective wiring. Repair the wiring. Too little water fill. See “Too little water fill.”...
  • Page 24 Use the shim guage furnished in the impeller seal Impellers are not properly shimmed or kit. When the seal is properly shimmed the are rubbing. impellers will be in the correct operating position. Poor washability. Clogged filter assembly. Clean the filter assembly. Dishware stop the sprayer revolve the sprayer before wash.
  • Page 25 Error code Light Flashing Problem Detail Water inlet failure water have not reach the setting level , after filling for 4min. Heating failure Heating abnormality (only on line check) , a heating 25min, still did not reach the set temperature; Overflow failure Overflow switch keeps opening or closing for more than 2S at any time NTC open circuit failure...
