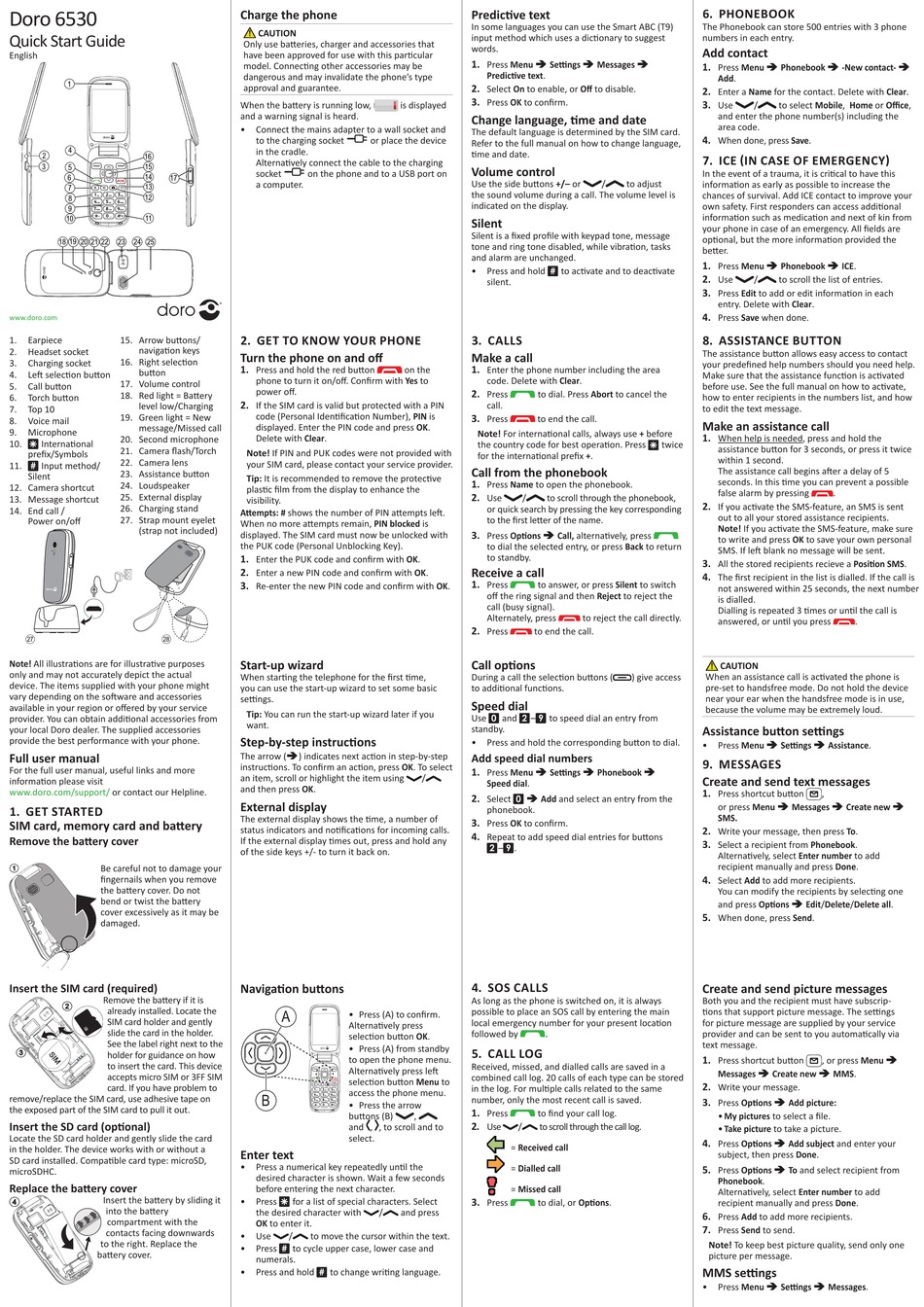

Doro 6530 Quick Start Manual

Doro 6530
Quick Start Guide
English
1
4
2 16
3 15
5
14
6
17
13
7
12
8
9
10 11
18 19 20 21 22 23 24 25
www.doro.com
1. Earpiece 15. Arrow buttons/
navigation keys
2. Headset socket
16. Right selection
3. Charging socket
button
4. Left selection button
17. Volume control
5. Call button
18. Red light = Battery
6. Torch button
level low/Charging
7. Top 10
19. Green light = New
8. Voice mail
message/Missed call
9. Microphone
20. Second microphone
10. * International
21. Camera flash/Torch
prefix/Symbols
22. Camera lens
11. # Input method/
23. Assistance button
Silent
24. Loudspeaker
12. Camera shortcut
25. External display
13. Message shortcut
26. Charging stand
14. End call /
27. Strap mount eyelet
Power on/off
(strap not included)
27 28
Note! All illustrations are for illustrative purposes
only and may not accurately depict the actual
device. The items supplied with your phone might
vary depending on the software and accessories
available in your region or offered by your service
provider. You can obtain additional accessories from
your local Doro dealer. The supplied accessories
provide the best performance with your phone.
Full user manual
For the full user manual, useful links and more
information please visit
www.doro.com/support/ or contact our Helpline.
1. GET STARTED
SIM card, memory card and battery
Remove the battery cover
Be careful not to damage your
1
fingernails when you remove
the battery cover. Do not
bend or twist the battery
cover excessively as it may be
damaged.
Insert the SIM card (required)
Remove the battery if it is
2
already installed. Locate the
SIM card holder and gently
slide the card in the holder.
See the label right next to the
3 holder for guidance on how
to insert the card. This device
accepts micro SIM or 3FF SIM
card. If you have problem to
remove/replace the SIM card, use adhesive tape on
the exposed part of the SIM card to pull it out.
Insert the SD card (optional)
Locate the SD card holder and gently slide the card
in the holder. The device works with or without a
SD card installed. Compatible card type: microSD,
microSDHC.
Replace the battery cover
Insert the battery by sliding it
4
into the battery
compartment with the
contacts facing downwards
to the right. Replace the
battery cover.
Charge the phone
CAUTION
Only use batteries, charger and accessories that
have been approved for use with this particular
model. Connecting other accessories may be
dangerous and may invalidate the phone's type
approval and guarantee.
When the battery is running low, is displayed
and a warning signal is heard.
• Connect the mains adapter to a wall socket and
to the charging socket y or place the device
in the cradle.
Alternatively connect the cable to the charging
socket y on the phone and to a USB port on
a computer.
2. GET TO KNOW YOUR PHONE
Turn the phone on and off
1.
Press and hold the red button on the
phone to turn it on/off. Confirm with Yes to
power off.
2.
If the SIM card is valid but protected with a PIN
code (Personal Identification Number), PIN is
displayed. Enter the PIN code and press OK.
Delete with Clear.
Note! If PIN and PUK codes were not provided with
your SIM card, please contact your service provider.
Tip: It is recommended to remove the protective
plastic film from the display to enhance the
visibility.
Attempts: # shows the number of PIN attempts left.
When no more attempts remain, PIN blocked is
displayed. The SIM card must now be unlocked with
the PUK code (Personal Unblocking Key).
1.
Enter the PUK code and confirm with OK.
2.
Enter a new PIN code and confirm with OK.
3.
Re-enter the new PIN code and confirm with OK.
Start-up wizard
When starting the telephone for the first time,
you can use the start-up wizard to set some basic
settings.
Tip: You can run the start-up wizard later if you
want.
Step-by-step instructions
The arrow ( â ) indicates next action in step-by-step
instructions. To confirm an action, press OK. To select
an item, scroll or highlight the item using
and then press OK.
External display
The external display shows the time, a number of
status indicators and notifications for incoming calls.
If the external display times out, press and hold any
of the side keys +/- to turn it back on.
Navigation buttons
A
• Press (A) to confirm.
Alternatively press
selection button OK.
• Press (A) from standby
to open the phone menu.
Alternatively press left
selection button Menu to
access the phone menu.
B
• Press the arrow
buttons (B) ,
and , , to scroll and to
select.
Enter text
• Press a numerical key repeatedly until the
desired character is shown. Wait a few seconds
before entering the next character.
• Press * for a list of special characters. Select
the desired character with / and press
OK to enter it.
• Use / to move the cursor within the text.
• Press # to cycle upper case, lower case and
numerals.
• Press and hold # to change writing language.
Predictive text
In some languages you can use the Smart ABC (T9)
input method which uses a dictionary to suggest
words.
1.
Press Menu â Settings â
Predictive text.
2.
Select On to enable, or Off to disable.
3.
Press OK to confirm.
Change language, time and date
The default language is determined by the SIM card.
Refer to the full manual on how to change language,
time and date.
Volume control
Use the side buttons +/– or
the sound volume during a call. The volume level is
indicated on the display.
Silent
Silent is a fixed profile with keypad tone, message
tone and ring tone disabled, while vibration, tasks
and alarm are unchanged.
• Press and hold # to activate and to deactivate
silent.
3. CALLS
Make a call
1.
Enter the phone number including the area
code. Delete with Clear.
2.
Press to dial. Press Abort to cancel the
call.
3.
Press to end the call.
Note! For international calls, always use + before
the country code for best operation. Press * twice
for the international prefix +.
Call from the phonebook
1.
Press Name to open the phonebook.
2.
Use / to scroll through the phonebook,
or quick search by pressing the key corresponding
to the first letter of the name.
3. â
Press Options Call, alternatively, press
to dial the selected entry, or press Back to return
to standby.
Receive a call
1.
Press to answer, or press Silent to switch
off the ring signal and then Reject to reject the
call (busy signal).
Alternately, press to reject the call directly.
2.
Press to end the call.
Call options
During a call the selection buttons (
to additional functions.
Speed dial
Use 0 and 2 – 9 to speed dial an entry from
standby.
• Press and hold the corresponding button to dial.
Add speed dial numbers
1. â â
Press Menu Settings
/
Speed dial.
2.
Select 0 â Add and select an entry from the
phonebook.
3.
Press OK to confirm.
4.
Repeat to add speed dial entries for buttons
2 – 9 .
4. SOS CALLS
As long as the phone is switched on, it is always
possible to place an SOS call by entering the main
local emergency number for your present location
followed by .
5. CALL LOG
Received, missed, and dialled calls are saved in a
combined call log. 20 calls of each type can be stored
in the log. For multiple calls related to the same
number, only the most recent call is saved.
1.
Press to find your call log.
2.
Use / to scroll through the call log.
= Received call
= Dialled call
= Missed call
3.
Press to dial, or Options.
6. PHONEBOOK
The Phonebook can store 500 entries with 3 phone
numbers in each entry.
Add contact
Messages â
1.
Press Menu â
Add.
2.
Enter a Name for the contact. Delete with Clear.
3.
Use /
and enter the phone number(s) including the
area code.
4.
When done, press Save.
7. ICE (IN CASE OF EMERGENCY)
In the event of a trauma, it is critical to have this
/ to adjust
information as early as possible to increase the
chances of survival. Add ICE contact to improve your
own safety. First responders can access additional
information such as medication and next of kin from
your phone in case of an emergency. All fields are
optional, but the more information provided the
better.
1. â
Press Menu
2.
Use /
3.
Press Edit to add or edit information in each
entry. Delete with Clear.
4.
Press Save when done.
8. ASSISTANCE BUTTON
The assistance button allows easy access to contact
your predefined help numbers should you need help.
Make sure that the assistance function is activated
before use. See the full manual on how to activate,
how to enter recipients in the numbers list, and how
to edit the text message.
Make an assistance call
1.
When help is needed, press and hold the
assistance button for 3 seconds, or press it twice
within 1 second.
The assistance call begins after a delay of 5
seconds. In this time you can prevent a possible
false alarm by pressing
2.
If you activate the SMS-feature, an SMS is sent
out to all your stored assistance recipients.
Note! If you activate the SMS-feature, make sure
to write and press OK to save your own personal
SMS. If left blank no message will be sent.
3.
All the stored recipients recieve a Position SMS.
4.
The first recipient in the list is dialled. If the call is
not answered within 25 seconds, the next number
is dialled.
Dialling is repeated 3 times or until the call is
answered, or until you press
CAUTION
) give access When an assistance call is activated the phone is
pre-set to handsfree mode. Do not hold the device
near your ear when the handsfree mode is in use,
because the volume may be extremely loud.
Assistance button settings
• Press Menu â
9. MESSAGES
â
Phonebook
Create and send text messages
1.
Press shortcut button
or press Menu
SMS.
2.
Write your message, then press To.
3.
Select a recipient from Phonebook.
Alternatively, select Enter number to add
recipient manually and press Done.
4.
Select Add to add more recipients.
You can modify the recipients by selecting one
and press Options
5.
When done, press Send.
Create and send picture messages
Both you and the recipient must have subscrip-
tions that support picture message. The settings
for picture message are supplied by your service
provider and can be sent to you automatically via
text message.
1.
Press shortcut button
â
Messages
2.
Write your message.
3.
Press Options
• My pictures to select a file.
• Take picture to take a picture.
4.
Press Options
subject, then press Done.
5.
Press Options
Phonebook.
Alternatively, select Enter number to add
recipient manually and press Done.
6.
Press Add to add more recipients.
7.
Press Send to send.
Note! To keep best picture quality, send only one
picture per message.
MMS settings
â
• Press Menu
Phonebook â -New contact- â
to select Mobile, Home or Office,
â
Phonebook ICE.
to scroll the list of entries.
.
.
Settings â Assistance.
,
â Messages â Create new â
â
Edit/Delete/Delete all.
â
, or press Menu
â
Create new MMS.
â
Add picture:
â Add subject and enter your
â
To and select recipient from
â
Settings Messages.
