Summary of Contents for altimo CETC501W

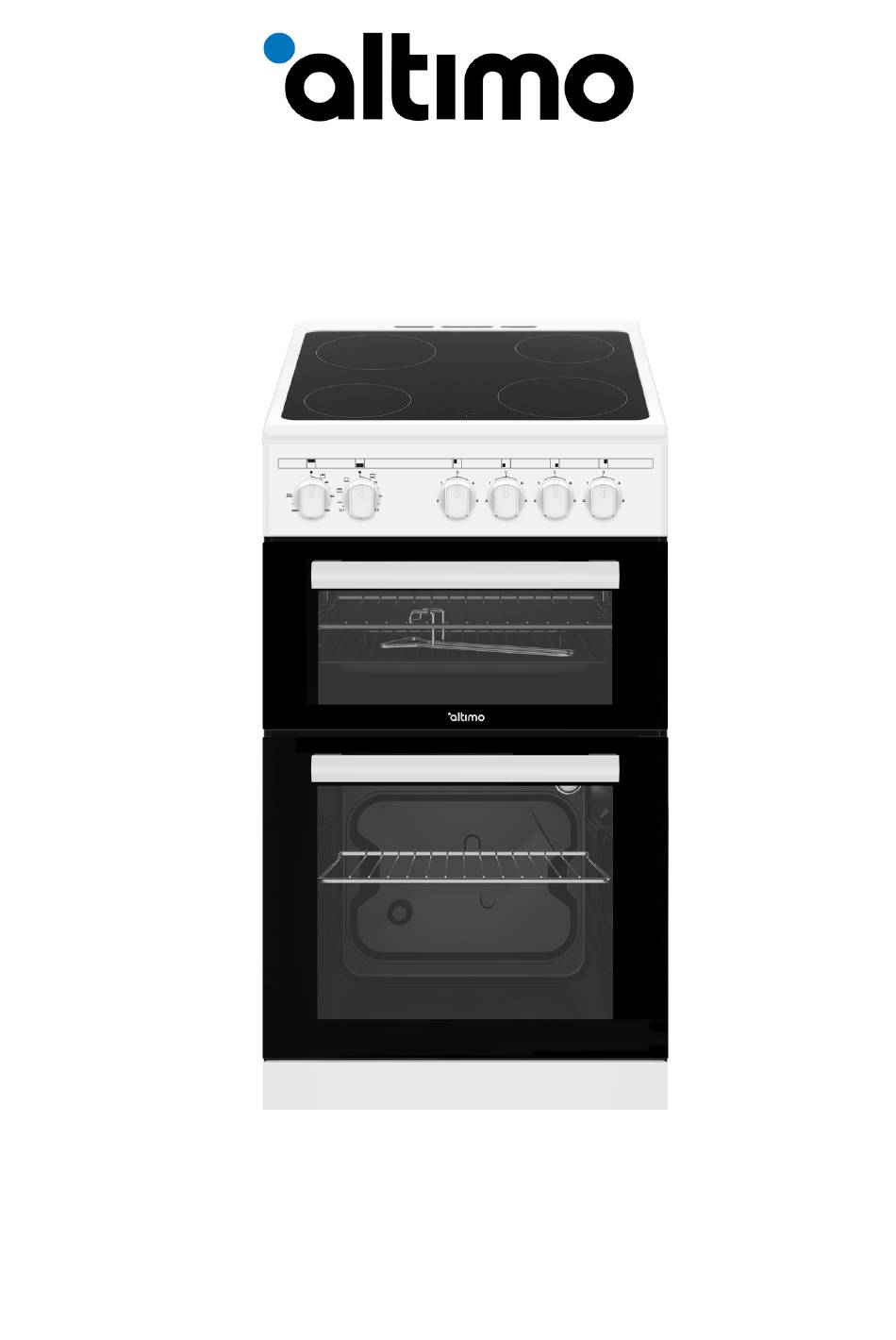

- Page 1 Instruction Manual 50cm Twin Cavity Freestanding Cooker with Ceramic Hob CETC501W / CETC501B...
-
Page 2: Table Of Contents
Contents Safety information Product support Safety information Troubleshooting Help and assistance Your appliance guarantee Getting to know your Freestanding Cooker Declaration of conformance to product standards Overview Disposal Accessories Installing your Freestanding Cooker Installation requirements Electrical connection Using your Freestanding Cooker Control panel Oven functions... -
Page 3: Safety Information
Safety information Important - Please read these instructions fully before installing or operating DURING USAGE INSTALLATION WARNINGS IMPORTANT: This appliance can be used by children IMPORTANT: Prior to installation ensure that the aged from 8 years and above and persons with reduced local supply conditions (electricity, voltage and physical, sensory or mental capabilities or lack of frequency) are compatible with the requirements... - Page 4 Safety information Important - Please read these instructions fully before installing or operating IMPORTANT: When the door of the oven is open, do IMPORTANT: Make sure the cooker control not hang or lean anything on it. You may unbalance knobs are all in the off position when not in your appliance or damage the door or door hinges.
-
Page 5: Getting To Know Your Freestanding Cooker
Getting to know your Freestanding Cooker Overview Ceramic hob Grill control knob Oven control knob Hob control knobs Upper cavity door Upper cavity handle Adjustable feet Grill pan Lamp Wire shelf... -
Page 6: Accessories
Getting to know your Freestanding Cooker Accessories Tray / Glass tray Used for pastry (cookie, biscuit etc.), frozen foods. In tray wire grill Used with the grill for toasting bread or grilling other foods. Wire grill Used for cooking foods that are not suitable in baking trays - ie Pizzas. Tray handle Used to lift and manoeuvre the tray when hot. -
Page 7: Installing Your Freestanding Cooker
Installing your Freestanding Cooker Installation requirements First Use THIS COOKER MUST BE INSTALLED BY IMPORTANT: When using your oven for the A QUALIFIED INSTALLER IN first time your cooker may give off an unusual ACCORDANCE WITH LOCAL odour from the heating elements and insulation REGULATIONS materials. - Page 8 Installing your Freestanding Cooker Levelling feet The height and level of the appliance can be adjusted by rotating the feet located underneath the appliance at each corner. Rotate the feet to decrease or increase the height. Safety chain The appliance must be secured against the possibility of tipping forward by using the supplied safety chains attached to the rear of your oven.
-
Page 9: Electrical Connection
Installing your Freestanding Cooker Electrical connection IMPORTANT: Electrical connections must be carried out by a suitably qualified person and in accordance with all relevant local building and installation regulations. Fitting a Power Supply Cable Connecting appropriate power supply terminal board/connector block: l Using a screwdriver, prize open tabs of the Terminal board cover. -
Page 10: Using Your Freestanding Cooker
Using your Freestanding Cooker Control panel 1. Thermostat • Sets temperature for the grill. 2. Function • Sets function & temperature for cooking in main oven. 3. Back Left Hob • Adjusts temperature of hotplate. 4. Front Left Hob • Adjusts temperature of hotplate. 5. -
Page 11: Oven Functions
Using your Freestanding Cooker Oven functions Grill Top & Bottom Element Bottom Element Oven light Grill - The top central heating elements come on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. -
Page 12: General Oven And Cooking Tips
Using your Freestanding Cooker General oven and cooking tips General Oven Tips: The wire shelves should always be pushed firmly to the back of the oven. Baking trays with food cooking on them should be placed level with the front edge of the oven’s wire shelves. -
Page 13: Practical Cooking Advice
Using your Freestanding Cooker Practical Cooking Advice The oven offers a wide range of alternatives that allow you to cook any type of food in the best possible way. With time, you will learn how to make the best use of this versatile cooking appliance. The following directions are only a guideline, which may be varied according to your own personal experience. -
Page 14: Using The Ceramic Hob
Using your Freestanding Cooker Using the ceramic hob Each ceramic hob is regulated by a selector knob. The control allows for the efficient transfer of heat to the cooking pan. The knob can be turned in both directions, to numbers 1 to 6. These numbers correspond to the power setting of the ceramic hob where 6 is the highest setting and 1 is the lowest. -
Page 15: Care And Maintenance
Care and maintenance Cleaning WARNING! Isolate the power supply to the appliance and make sure that the cooker is cool. Before cleaning your cooker or performing maintenance, make sure that the cooking mode selection knob and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your cooker, it must be cleaned frequently. -
Page 16: Replacing Oven Lamps
Care and maintenance Replacing the oven lamps l Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains or unplug the appliance. l Remove the glass cover of the lamp-holder by rotating anti-clockwise. l Remove the lamp and replace with a lamp resistant to high temperatures (300℃) with the following characteristics: Voltage: 220-240V... -
Page 17: Technical Specification
Care and maintenance Technical specification CETC501W / CETC501B Model Voltage and frequency 220-240V AC/50Hz Top cavity power 1400W Bottom cavity - main oven power 1800W Top cavity usable capacity Main Oven usable capacity Ceramic hob power consumption 5800W Total power... - Page 18 EN 60350-1 or EN 15181 Comply with EU directive 2009/125/EC- regulation No 66/2014 according to EN 60350-1 or EN 15181 Brand ALTIMO Model CETC501W / CETC501B Free Standing Type of oven Built-in Mass of the appliance(M)(Net weight)kg Number of cavities...
- Page 19 Information for domestic electric hobs Comply with EU directive 2009/125/EC - Regulation No 66/2014 according to EN 60350-2 Brand ALTIMO Model CETC501W / CETC501B Electrical Type of hob Number of cooking zone and or area Radiant Cooking zone Heating Technology...
-
Page 20: Product Support
Product support Troubleshooting If you have a problem with your appliance, check the troubleshooting table below to try and rectify your problem before calling your product support service centre. Problem Causes What to do Power not turned on Switch on electricity Household fuse blown Check fuses Oven or grill not working... -
Page 21: Help And Assistance
If you require any technical guidance or find that your cooker is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.altimo.co.uk. If you still require further assistance, call one of our experts on 0330 041 7490. -
Page 22: Your Appliance Guarantee
2. Call the specialist Service Line for your product: 0330 024 5648 This guarantee in no way affects your statutory or legal rights. Any information provided to us for the purposes of product support is subject to our privacy policy, which can be viewed online at www.altimo.co.uk/privacy-policy... -
Page 23: Declaration Of Conformance To Product
Disposal Declaration of conformance to product standards This appliance/fitting is marked according to the European directive This appliance conforms to all relevant standards 2012/19/EU on Waste Electrical applicable to domestic appliances sold in the UK and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be... - Page 24 For customer service call: 0330 041 7490...
