Summary of Contents for altimo CEDC601W

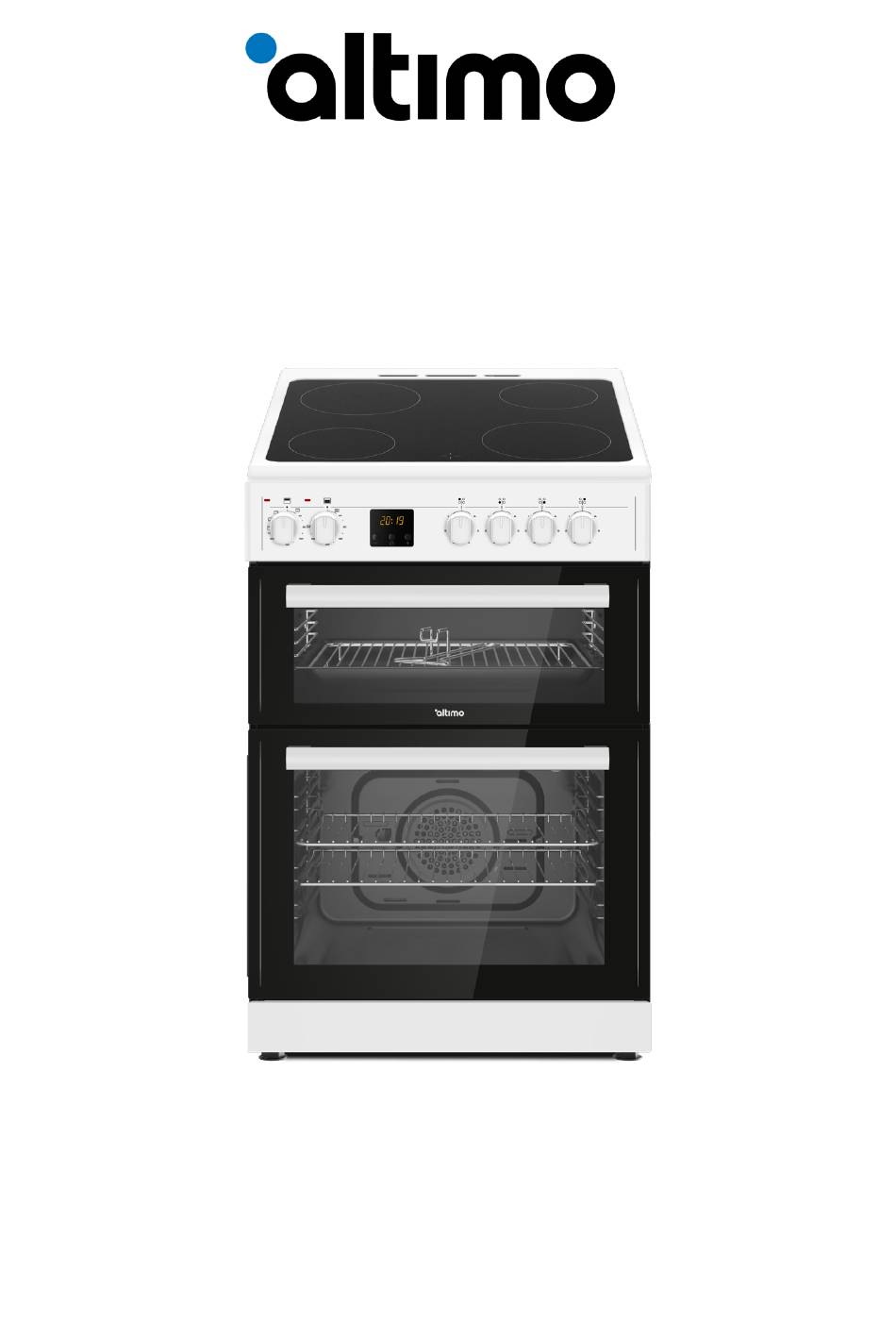

- Page 1 Instruction Manual 60cm Double Cavity Freestanding Cooker CEDC601W / CEDC601B...
-
Page 2: Table Of Contents
Contents Safety information Product support Safety information Troubleshooting Help and assistance Getting to know your Your appliance guarantee Freestanding Cooker Declaration of conformance to product standards Overview Disposal Accessories Installing your Freestanding Cooker Installation requirements Electrical connection Using your Freestanding Cooker Control panel Using your three button timer... -
Page 3: Safety Information
Safety information Important - Please read these instructions fully before installing or operating DURING USAGE INSTALLATION WARNINGS IMPORTANT: This appliance can be used by IMPORTANT: Prior to Installation ensure that children aged from 8 years and above and persons the local supply conditions (electricity voltage with reduced physical, sensory or mental and frequency) are compatible with the capabilities or lack of experience and knowledge if... - Page 4 Safety information Important - Please read these instructions fully before installing or operating IMPORTANT: When the door of the oven is open, IMPORTANT: Make sure the oven control do not hang or lean anything on it. You may knobs are all in the off position when not unbalance your appliance or damage the door or in use door hinges.
-
Page 5: Getting To Know Your Freestanding Cooker
Getting to know your Freestanding Cooker Overview Glass top plate Thermostat for grill Function and temperature for main oven Three button programmer Temperature control for ceramic hob zones Top cavity door Top cavity handle Plinth Adjustable feet Lamp Wire shelf Grill pan... -
Page 6: Accessories
Getting to know your Freestanding Cooker Accessories Tray / Glass tray Used for pastry (cookie, biscuit etc.), frozen foods. In tray wire grill Used with the grill for toasting bread or grilling other foods. Wire grill Used for cooking foods that are not suitable in baking trays - ie Pizzas. Tray handle Used to hold and move hot trays. -
Page 7: Installing Your Freestanding Cooker
Installing your Freestanding Cooker Installation requirements First Use THIS COOKER MUST BE INSTALLED BY IMPORTANT: When using your oven for the first time A QUALIFIED INSTALLER IN your cooker may give off an unusual odour from the ACCORDANCE WITH LOCAL heating elements and insulation materials. - Page 8 Installing your Freestanding Cooker Levelling feet The height and level of the appliance can be adjusted by rotating the feet located underneath the appliance at each corner. Rotate the feet to decrease or increase the height. Safety chain The appliance must be secured against the possibility of tipping forward by using the supplied safety chains attached to the rear of your oven.
-
Page 9: Electrical Connection
Installing your Freestanding Cooker Electrical connection IMPORTANT: Electrical connections must be carried out by a suitably qualified person and in accordance with all relevant local building and installation regulations. Fitting a Power Supply Cable Connecting appropriate power supply terminal board/connector block: l Using a screwdriver, prize open tabs of the Terminal board cover. -
Page 10: Using Your Freestanding Cooker
Using your Freestanding Cooker Control panel 1. Thermostat • Sets temperature for the grill. 2. Function • Sets function & temperature for cooking in main oven. 3. Three button programmer • Programs cooker and controls cooking times. 4. Back Left Hob •... -
Page 11: Using Your Three Button Timer
Using your Freestanding Cooker Using your Three Button Timer The electronic timer enables you to cook food ready to serve at the desired time set. All you need to do is program the cooking time and desired finish time. It can also be used as an alarm clock, where you set the amount of time after which you want to hear a buzzer tone. - Page 12 Using your Freestanding Cooker Adjusting the buzzer alarm Use this feature to set a timer alarm, after which you will be alerted by a buzzer sound. Select adjusting the buzzer Set the period of time A few seconds later, the alarm pressing ‘M’...
- Page 13 Using your Freestanding Cooker Press ‘M’ button three times. The screen will display ‘End’ and ready time which is 18:30 + 2:15 = 20:45 respectively. In a few seconds, the screen Set to the desired time by displays the clock. using the ‘+’...
-
Page 14: Oven Functions
Using your Freestanding Cooker Oven functions Grill Top & Bottom Element Bottom Element Oven Light Grill - The top central heating elements come on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. -
Page 15: General Oven And Cooking Tips
Using your Freestanding Cooker General oven and cooking tips General Oven Tips: The wire shelves should always be pushed firmly to the back of the oven. Baking trays with food cooking on them should be placed level with the front edge of the oven’s wire shelves. -
Page 16: Practical Cooking Advice
Using your Freestanding Cooker Practical Cooking Advice The oven offers a wide range of alternatives that allow you to cook any type of food in the best possible way. With time, you will learn how to make the best use of this versatile cooking appliance. The following directions are only a guideline which may be varied according to your own personal experience. -
Page 17: Using The Ceramic Zones Of Your Cooker
Using your Freestanding Cooker Using the hob of your cooker Do not use pots and pans which are unsteady, as these could become un-sturdy. Do not use mats, heat diffusers or wok stands. These will cause a temperature build-up which can damage the hob. -
Page 18: Care And Maintenance
Care and maintenance Cleaning WARNING! Isolate the power supply to the appliance and make sure that the cooker is cool. Before cleaning your cooker or performing maintenance, make sure that the cooking mode selection knob and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your cooker, it must be cleaned frequently. -
Page 19: Replacing Oven Lamps
Care and maintenance Replacing the oven lamps l Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains or unplug the appliance. l Remove the glass cover of the lamp-holder by rotating anti-clockwise. l Remove the lamp and replace with a lamp resistant to high temperatures (300℃) with the following characteristics: Voltage:... -
Page 20: Technical Specification
Care and maintenance Technical specification CEDC601W / CEDC601B Model Voltage and frequency 220-240V AC/50Hz Top Oven power 1415W Bottom Oven power 2240W Top Oven usable capacity Bottom Oven usable capacity Large Hob burner power consumption 1700W (x2) 1200W (x2) Small Hob burner power consumption... - Page 21 PRODUCT FICHE Information for domestic electric hobs Comply with EU directive 2009/125/EC- Regulation No 66/2014 according to EN 60350-2 Brand ALTIMO Model CEDC601W / CEDC601B Electrical Type of hob Number of ccoking zone and or area Radiant Cooking zone Heating Technology...
- Page 22 EN 60350-1 or EN 15181 Comply with EU directive 2009/125/EC- regulation No 66/2014 according to EN 60350-1 or EN 15181 Brand ALTIMO Model CEDC601W / CEDC601B Free Standing Type of oven Built-in Mass of the appliance(M)(Net weight)kg Number of cavities...
- Page 23 EN 60350-1 or EN 15181 Comply with EU directive 2009/125/EC- regulation No 66/2014 according to EN 60350-1 or EN 15181 Brand ALTIMO Model CEDC601W / CEDC601B Free Standing Type of oven Built-in Mass of the appliance(M)(Net weight)kg Number of cavities...
-
Page 24: Product Support
Product support Troubleshooting If you have a problem with your appliance, check the troubleshooting table below to try and rectify your problem before calling your product support service centre. Problem Causes What to do Digital Clock not set properly Refer to digital timer instructions 120 min Timer not in “Manual”... -
Page 25: Help And Assistance
If you require any technical guidance or find that your cooker is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.altimo.co.uk. If you still require further assistance, call one of our experts on 0330 041 7490. -
Page 26: Your Appliance Guarantee
2. Call the specialist Service Line for your product: 0330 024 5648 This guarantee in no way affects your statutory or legal rights. Any information provided to us for the purposes of product support is subject to our privacy policy, which can be viewed online at www.altimo.co.uk/privacy-policy... -
Page 27: Declaration Of Conformance To Product
Declaration of conformance to Disposal product standards This appliance/fitting is marked according to the European directive This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be... - Page 28 For customer service call: 0330 041 7490...
