Summary of Contents for altimo BEHS1SS

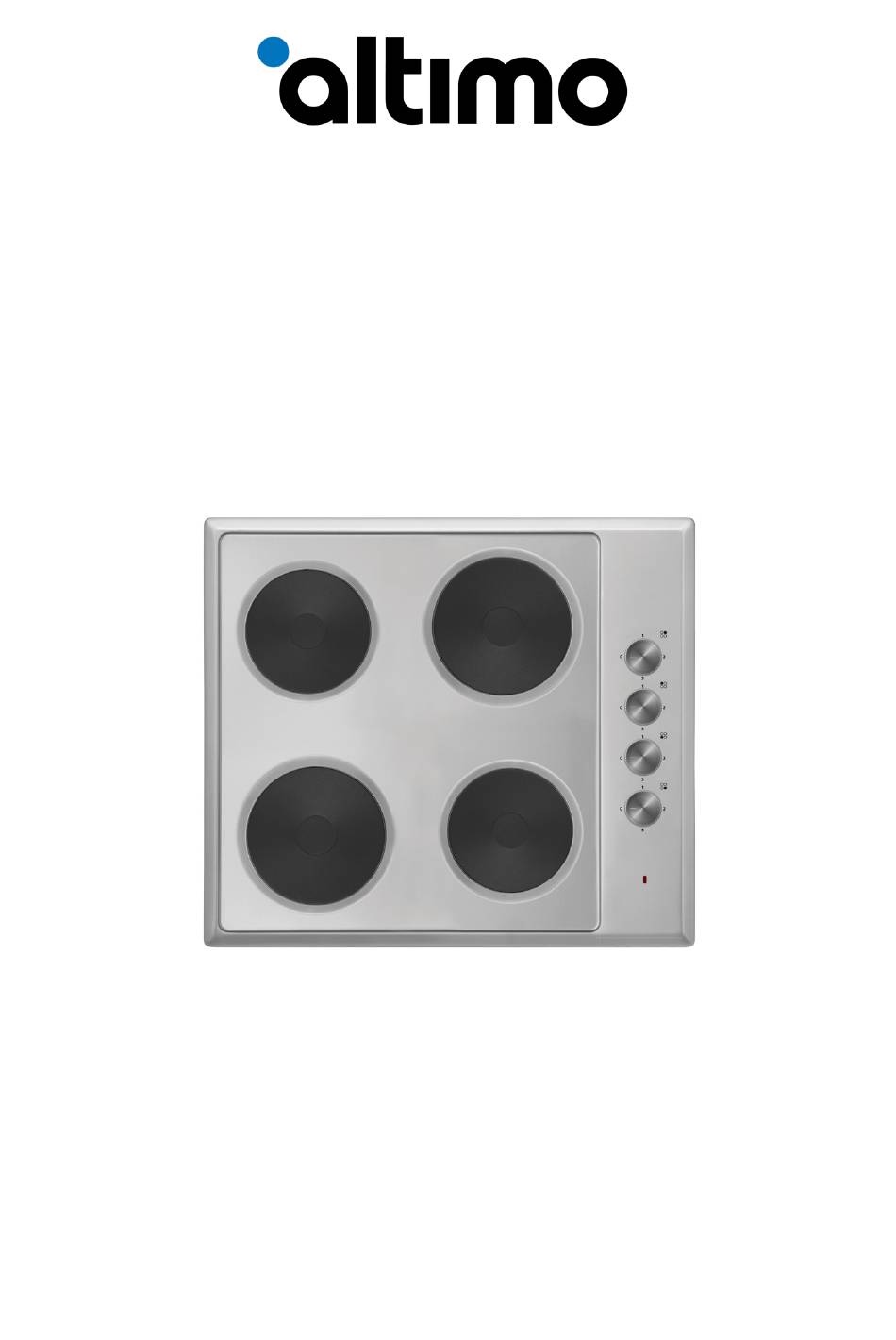

- Page 1 Instruction Manual Solid Plate Hob BEHS1SS...
-
Page 2: Table Of Contents
Contents Care and Maintenance Safety information Cleaning Safety information Technical specifications Getting to know your Hob Product support Overview Troubleshooting Accessories Help and assistance Your Appliance Guarantee Installing your Hob Declaration of conformance to product standards Installation requirements Disposal Installation guide Electrical connections Using your Hob Operation... -
Page 3: Safety Information
Safety information Important - Please read these instructions fully before installing or operating INSTALLATION WARNINGS DURING USAGE IMPORTANT: Prior to Installation, ensure that IMPORTANT: This appliance can be used by the local supply conditions (electricity, voltage children aged from 8 years and above and persons and frequency) are compatible with the with reduced physical, sensory or mental capabilities requirements of your built-in hob. - Page 4 Safety information Important - Please read these instructions fully before installing or operating IMPORTANT: Make sure the built-in hob control IMPORTANT: Do leave towels, dishcloths or knobs are all in the off position when not in use. clothes on the built-in hob or its control knobs. IMPORTANT: If you do not intend to use your CLEANING AND MAINTENANCE hob for a long period of time, turn off the electric...
-
Page 5: Getting To Know Your Hob
Getting to know your Built-in Hob You’ll be up and running in no time 1. Heater positions 2. Glass or metal surface 3. Control switches 4. Hotplate (145 mm or 180 mm) * 5. Ceramic heater (180 mm or 140 mm) *... -
Page 6: Accessories
Getting to know your Built-in Hob You’ll be up and running in no time Accessories 1. Bracket*4 2. Screw*4 3. Seal*1... -
Page 7: Installing Your Hob
Installing your Built-in Hob Bringing it all together WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • • Incorrect installation may cause harm and damage, The cut aperture dimensions are indicated below. -
Page 8: Installation Guide
Installing your Built-in Hob Bringing it all together Fixing the seal to the back of the Hob The hob must be sealed to the work surface to prevent liquid from entering into the cabinet. A tape seal is supplied with the hob. Refer to Fig. 1 1. - Page 9 Installing your Built-in Hob Bringing it all together Fig. 1 Rear Screw Mains Connector Rear Screw Seal no gaps in corners Front Screw Front Screw Fig. 2 30 mm Sleeve screw 40 mm screw Figures for reference only...
-
Page 10: Electrical Connections
Installing your Built-in Hob Bringing it all together Electrical connection Appliances with a three-pole cable are set up for operation with alternating current at the voltage and frequency indicated on the rating plate. The earth conductor is yellow/green. The connection to the electricity supply must be made by a qualified person and following the regulations in force. -
Page 11: Using Your Hob
Using your Built-in Hob Getting the most from your appliance Operation of the top with the electric plates The electric tops can either be of the standard type, or of the rapid type. The latter feature a red mark at their centre. According to your needs, the tops can be adjusted by turning the knobs either clockwise or anti-clockwise on 6 position besides the 0 position (off). -
Page 12: Utensils
Using your Built-in Hob Getting the most from your appliance Utensils Use pans with flat bottoms. Uneven or thin bottoms will waste energy and are slow to cook Use pans slightly larger than the hotplates. Smaller pans will waste energy. Do not use oversized pans. -
Page 13: Care And Maintenance
Care and maintenance Looking after your appliance Cleaning WARNING! Isolate the power supply to the built-in Stainless Steel: hob and make sure that the built-in hob is cool. Stainless steel parts must be cleaned frequently with mildly warm soapy water and a soft sponge and then dried with a soft cloth. -
Page 14: Technical Specifications
Care and maintenance Looking after your appliance Technical specification Model BEHS1SS Voltage and frequency 220-240V AC / 50Hz Power consumption for large hot plates 1500W (x2) Power consumption for small hot plates 1000W (x2) Total Power 5000W Recommended fuse size... -
Page 15: Product Support
Product support Help is always at hand Troubleshooting 1. If no electrical functions appear to work, 3. DO NOT ATTEMPT TO REPAIR THIS APPLIANCE YOURSELF. CALL OUR check the isolation switch has not been PRODUCT SUPPORT TEAM ON turned off, also check the fuse in the switch 0330 041 7490 OR CONSULT A and your circuit breaker. -
Page 16: Help And Assistance
If you require any technical guidance or find that your hob is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.altimo.co.uk If you still require further assistance, call one of our experts on 0330 041 7490. -
Page 17: Your Appliance Guarantee
Call the specialist Service Line for your product: 0330 024 5648 This guarantee in no way affects your statutory or legal rights. Any information provided to us for the purposes of product support is subject to our privacy policy, which can be viewed online at www.altimo.co.uk/privacy-policy... -
Page 18: Declaration Of Conformance To Product Standards
Declaration of conformance to Disposal product standards This appliance/fitting is marked according to the European directive This appliance conforms to all relevant standards applicable to domestic appliances 2012/19/EU on Waste Electrical sold in the UK. and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be... - Page 19 For customer service call: 0330 041 7490...
